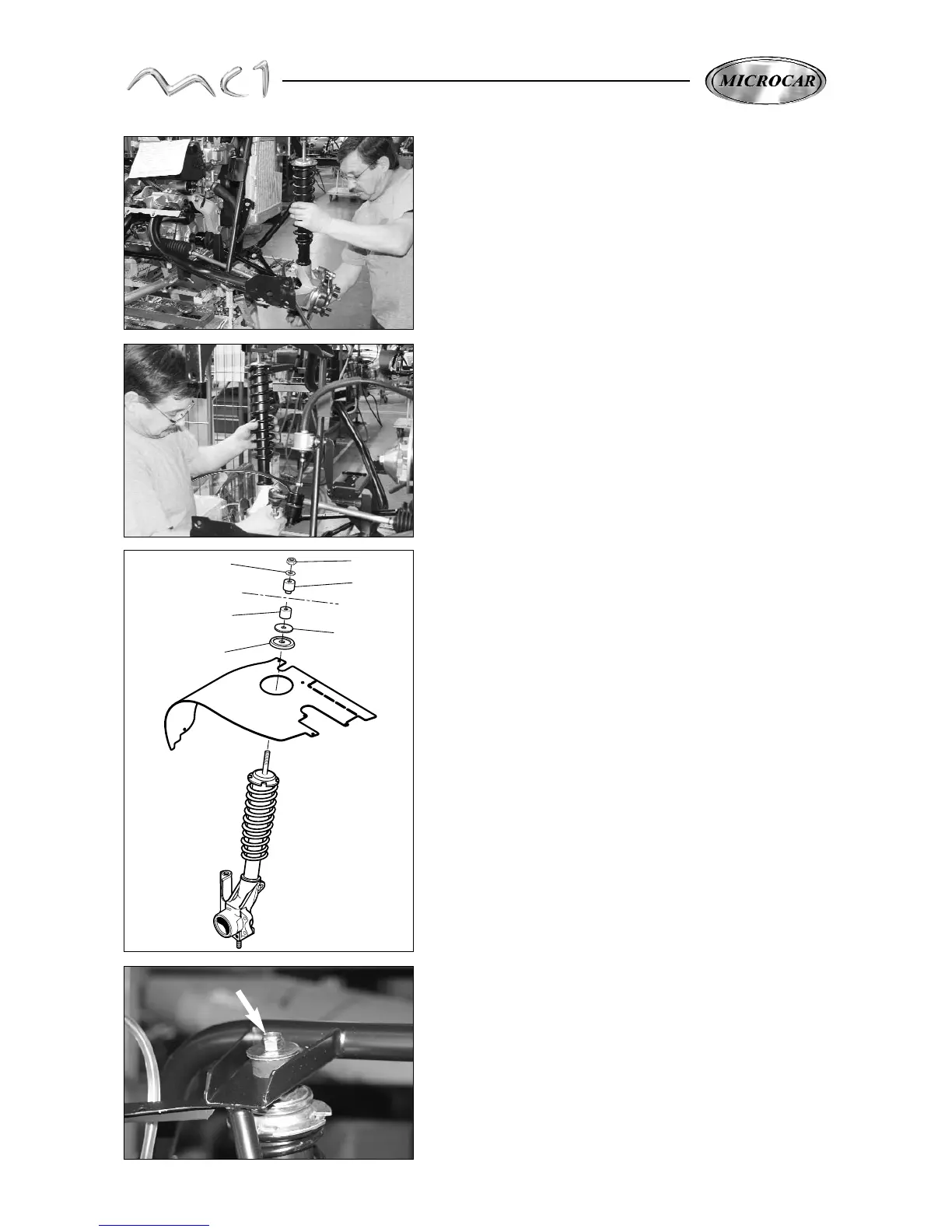

Fit the hub and the right shock absorbers on the
transmission (steering lever to the back).
Fix it on the suspension triangle with a screw
(set screw 40N/m)
Put the mudflap on the shock absorbers.
Fit the washers (1) and(2) on the shock absorber heads.
Fit the rubber mountings.
Position the shock absorber heads on the engine cradle
supports(4).
Fit the rubber mountings.
Fit the washers (6) and the nuts (7).
Block the fixing shock absorbers cap nut
(set screw 20N/m)
Fit the hub and the left shock absorbers on the
transmission (steering lever to the back).
Fix it on the suspension triangle with a screw
(set screw 40N/m)
