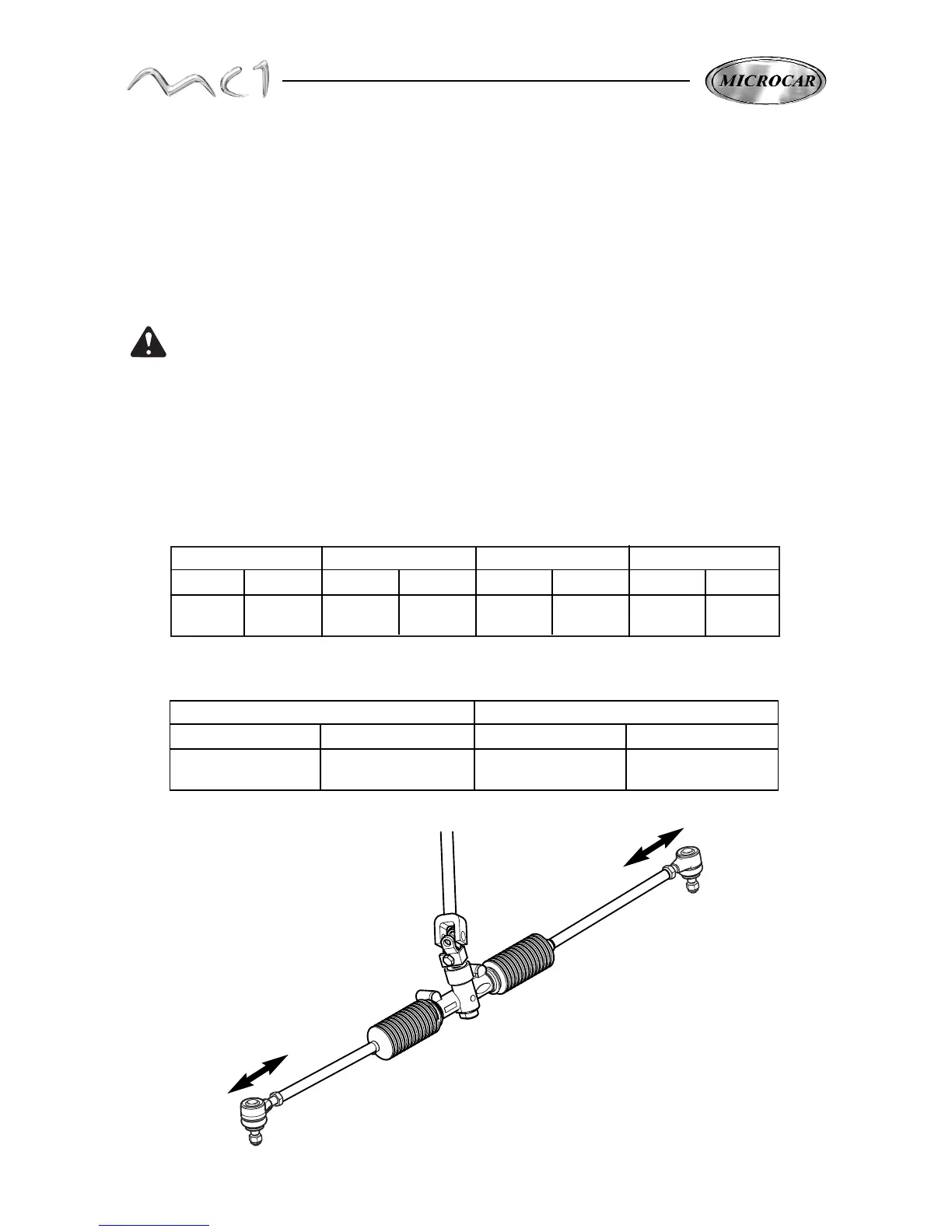

Make the alignment controlwith a specific machine. The regulating is made at the level of the steering hubs
The repartition of the steering must be equal on the right and on the left and the steering wheels in straight
position.
If you do not have any specific machine for the regulating of the adjustment, fix some rules on the back
wheels and regulate as before at the level of steering hubs.
The back train is regulated when building, so it is not possible to make any regulating.
ALIGNMENT
FRONT AND BACK GEOMETRIC TRAIN
SIZES CONDITIONS : discharged car filled up.
FRONT TRAIN
BACK TRAIN
ADJUSTMENT
L
0° ± 5’
R
0° ± 5’
BODY
L
0° ± 30’
R
0° ± 30’
PIVOT
L
16° ± 1°
R
16° ± 1°
CATER
L
4° ± 1°
R
4° ± 1°
ALIGNMENT
L
+ 25’ ± 25’
R
+ 25° ± 25’
BODY
L
- 25’ ± 25’
R
- 25’ ± 25’
