260 Chapter 30: Input Channels
PRO1 Live Audio System
Operator Manual
Compressor

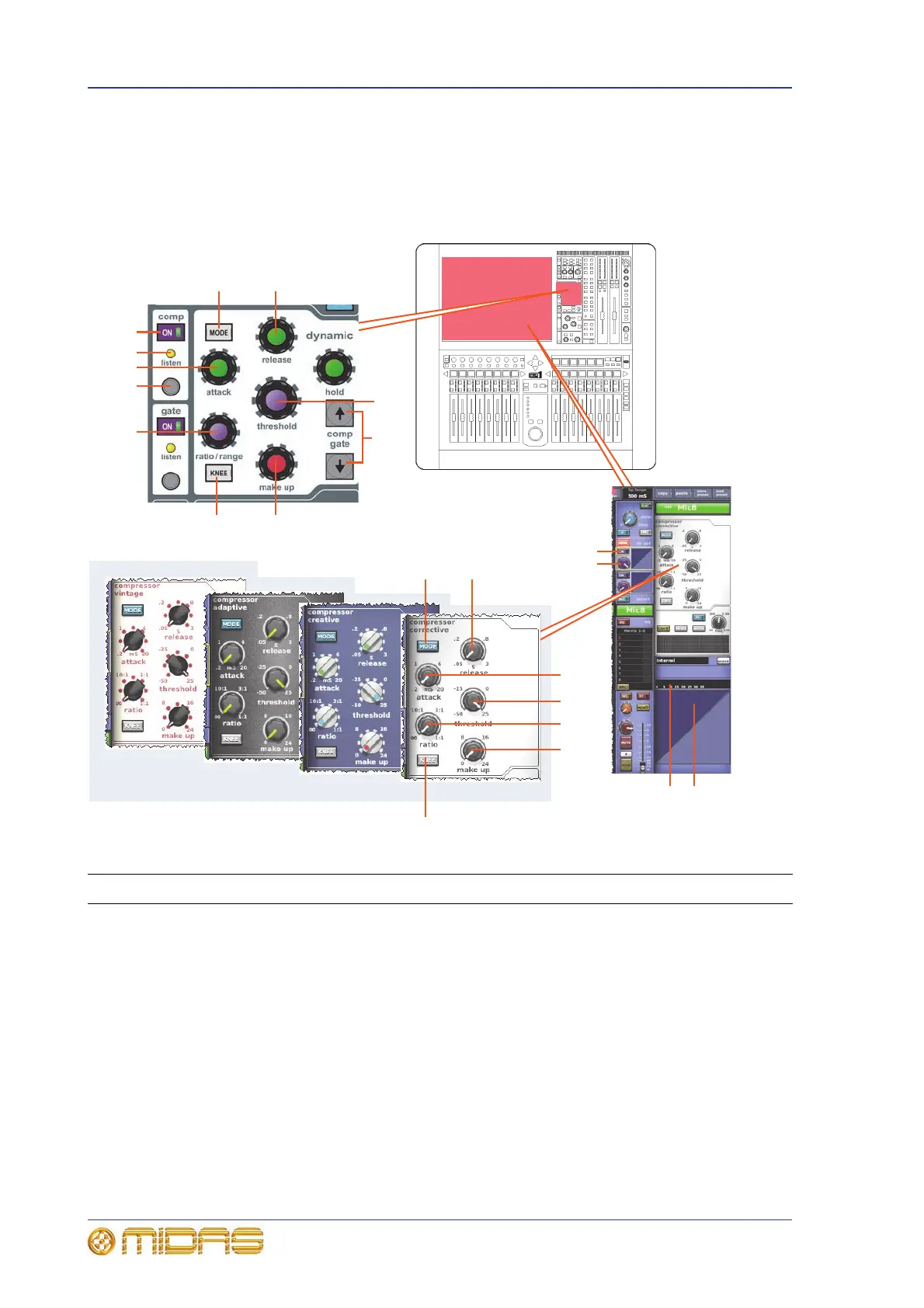

The input channel compressor has four styles — corrective, adaptive, creative and
vintage — which are selectable via the MODE button. Each has a distinctive sound and
a different appearance in the GUI channel strip. While the dynamic section is
addressing the compressor, all of its controls are enabled except the hold control knob.
Item Description
1 comp/gate up and down select buttons, for swapping dynamic section control from
compressor to gate, and vice versa.
2 Compressor make up gain control knob, compensates for the reduced loudness of a
compressed signal. Range is from 0dB to 24dB.
3 Compressor ratio control knob, adjusts amount of compression applied to signals above
threshold. Range is from infinity (∞) to 1:1 (maximum), which sets the compressor to
limiter mode.
D zone
Creative
Vintage
Corrective
Adaptive
1
7
6
5
8
4
3
2
11
9 10
9 10
4
8
11
3
2
4 13
7
11
