Using the PRO1 updater 345
PRO1 Live Audio System
Operator Manual
>> To update the PRO1
1
Mute the PA at the amplifier/speaker.
2 Plug the USB memory stick containing the .tar file
into the USB key socket on the control surface of
the PRO1 (see “Control surface” on page 246).
The “Run upgrade utility?” window will open
automatically.
If there is more than one upgrade file on the USB memory stick, you will be
instructed on how to select the desired one from the menu. Otherwise, a single
upgrade file will be loaded automatically.
The following is the update procedure:

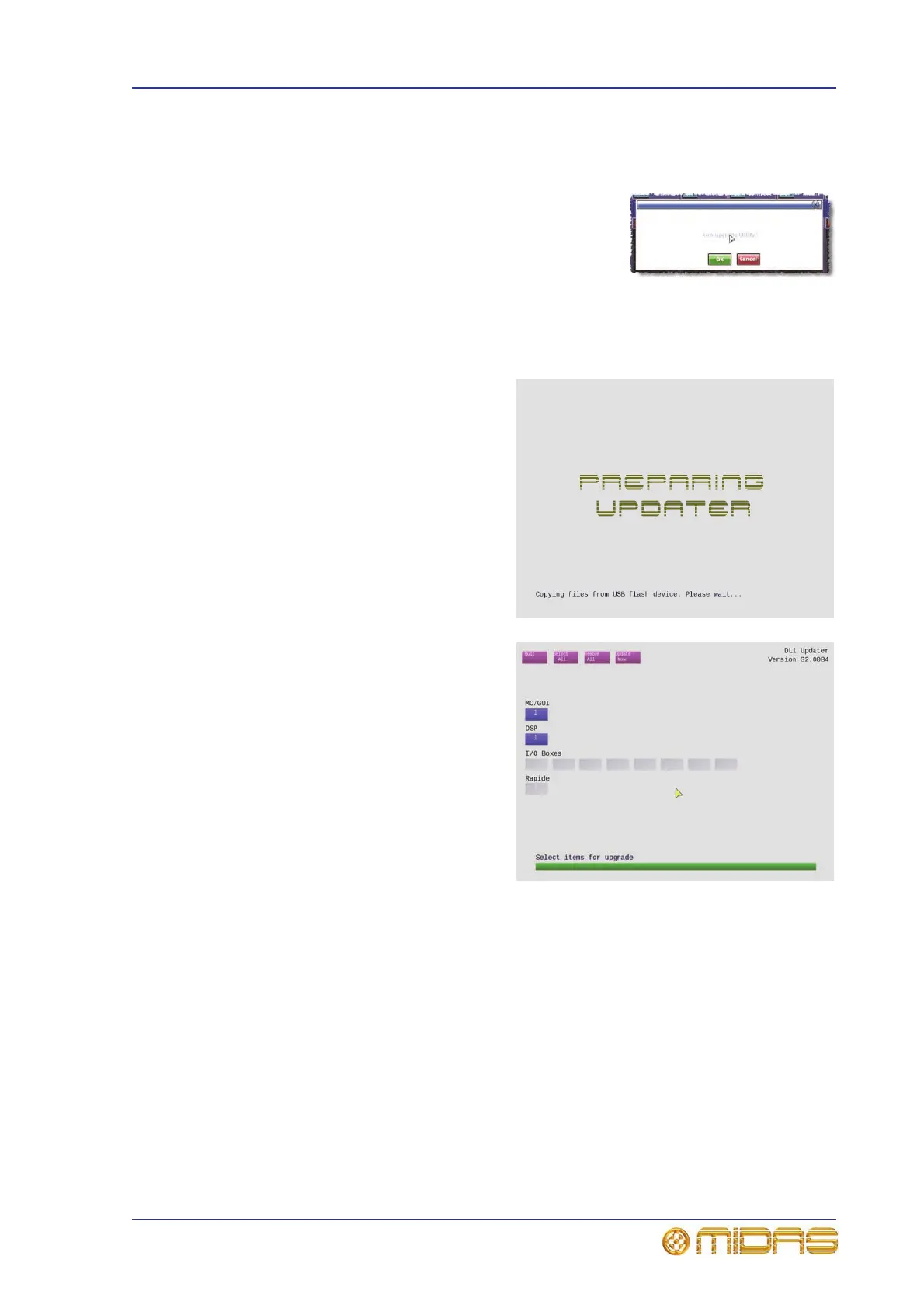

3 The “PREPARING UPDATER”
screen opens. The updater
makes an integrity check of all
the files included in the update
before launching fully.
The text towards the bottom of
the screen will inform you of the
updater progress.
4 After the updater preparation has
finished, the updater screen
opens. It automatically runs
through a sequence to detect all
units in the system, during which
the updater menu is unavailable.
When it has finished, the text just
above the green bar (shown
right) will show “Select items for
upgrade” and the devices
available for upgrade will be
coloured blue (see “Device
blocks” on page 343).
Note: In the unlikely event that
the “Some units not detected”
message appears, check that
your system interconnections are
good and click OK to continue.
5 Click Select All to select all the devices for update. However, if you want to edit
the selections, click on the device blocks to select/deselect individual ones. You
can also click Remove All to deselect all of the ones selected.
A Midas roundel will appear in the blocks of the devices selected for upgrade.
