56 Chapter 8: Patching
PRO1 Live Audio System
Operator Manual

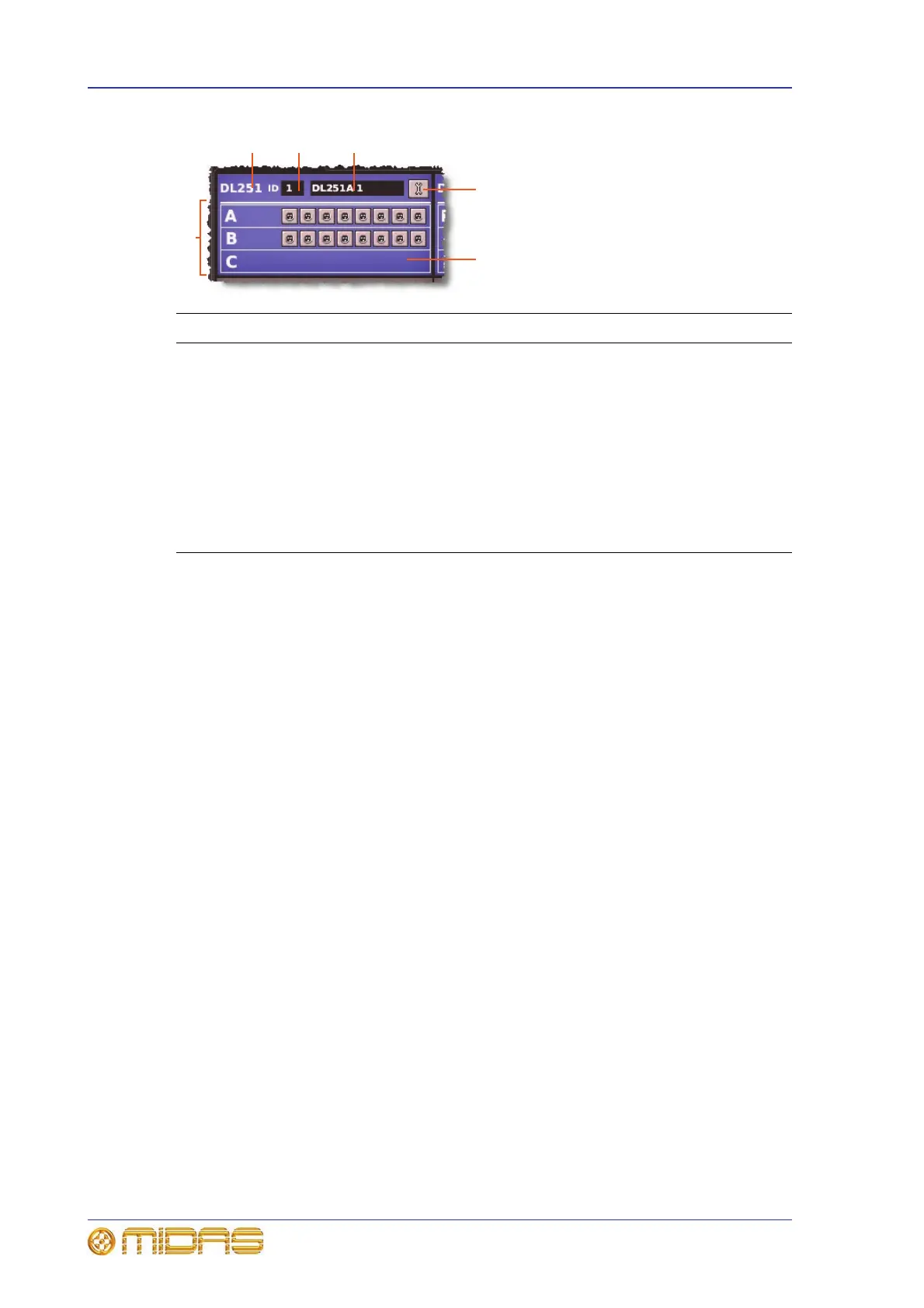

Item Description
1 Unit type.
2 Unit ID number.
3 Unit name and PRO1-assigned unit number.
4 ‘Spanner’ button, opens the device configuration window (see “Configuring
the devices” on page 58).
5 XLR patch connector, which is male or female, depending on section
location.
6 Patch connector area. (The line I/O device shows the three card slots, A, B
and C.)
