Guide to the machine
11

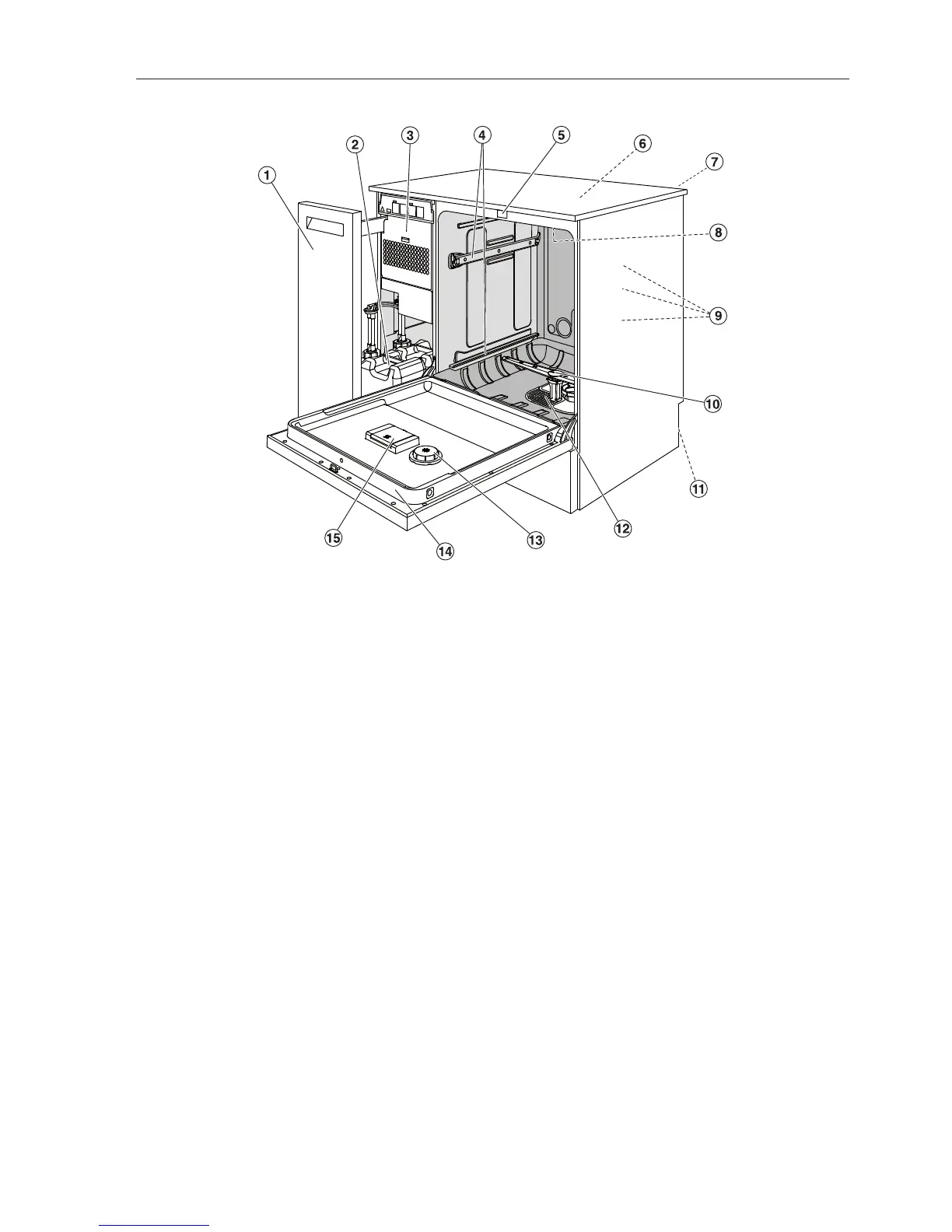

Guide to the machine
a
Side unit
b
Dispensing containers for chemical
agents
c
Drying unit
d
Rails for baskets and mobile units
e
Comfort door locking mechanism
f
Test point for performance checks (Top,
front right; only visible with lid removed)
g
Module slot for a communication module
(Back, top right)
h
Upper machine spray arm
i
Plumbing connections for mobile units
and baskets
j
Lower machine spray arm
k
On the back:
– Second data plate
– Electrical and plumbing connections
l
Filter combination
m
Rinsing agent reservoir
n
Data plate
o
Salt reservoir
