OM-266409 Page 45
. Hardware is common and
not available unless listed.
1
2
3
7
10
6
9
4
5
271 903-B

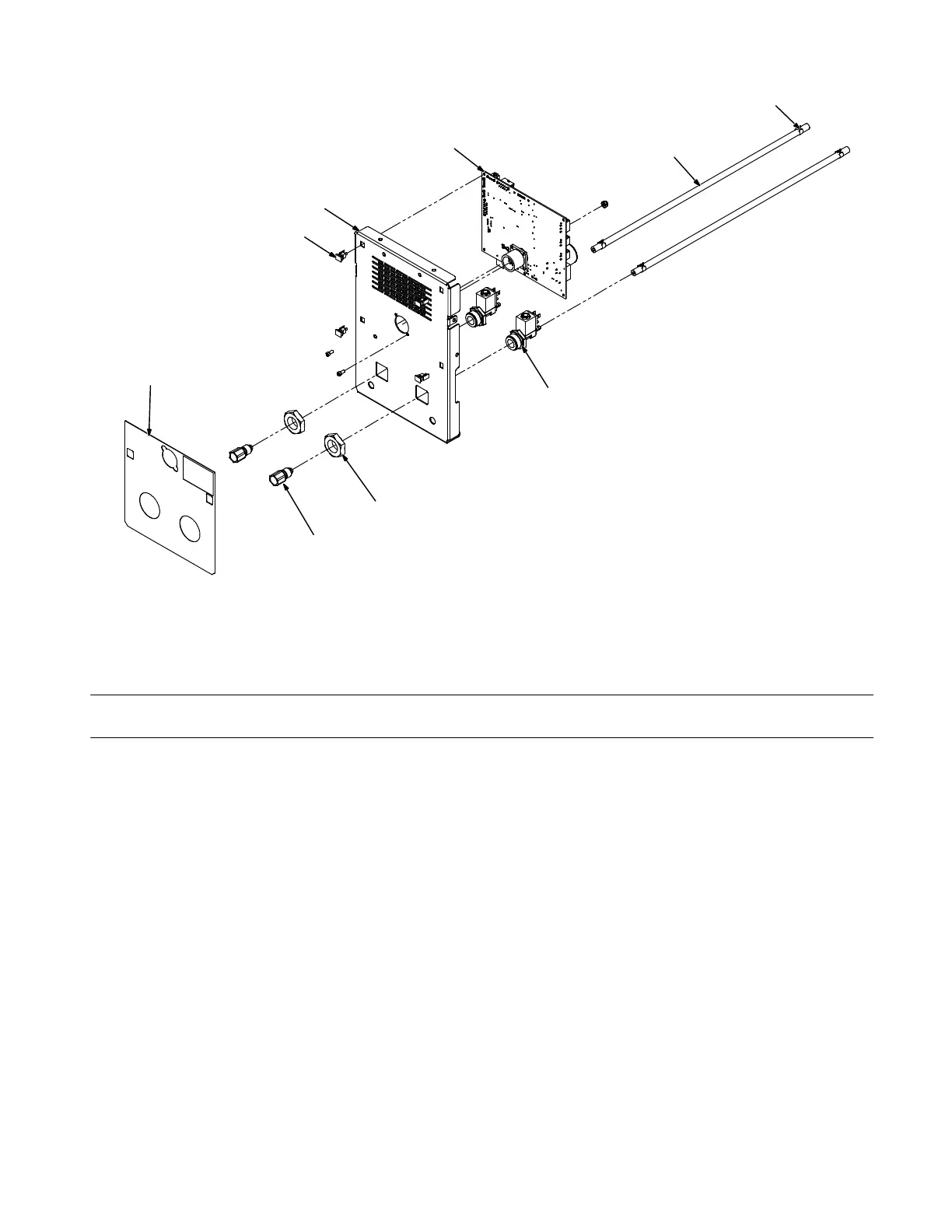

Figure 8-3. Rear Panel Assembly
Description
No.
Mkgs.
267837
No.
Figure 8-3. Rear Panel Assembly (Figure 8-1, Item 12)
Quanti
1 257622 Panel, Rear Dual 1... .......... .. .................................................
2 GS1,GS2 228035 Valve, 34vdc 1way .750−14 Thd 2mm Orf 100psi 2... . .. ....................
3 211989 Fitting, W/Screen 2... ........... .. ................................................
4 Label, Nameplate (Order By Model and Serial Number) 1... ..................... ...............
5 PC31 272939 Circuit Card Assy, Motor/Feeder Comm W/Prog 1... .. . .. ......................
200814 Hose Assy (Includes) 2................ .. .............................................
6 134834 Hose, SAE .187 ID x .410 OD 1.417... .......... ... ....................................
7 149332 Clamp, Hose .405−.485 Clp Dia 2... .......... ... ..................................
8 107983 Not Being Used... .......... ..
9 220805 Nut, 750−14 NPS 1.48Hex .41H Nyl 2... .......... .. ................................
10 269715 Stand−off Support, PC Card .312/.375w/Post&Lock .50 4... .......... .. ...............
+ When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
