OM-266409 Page 46
. Hardware is common and
not available unless listed.
271 904-A
1
5
11
7
9 - Figure 8-6
8
10
2
12
3
6
4

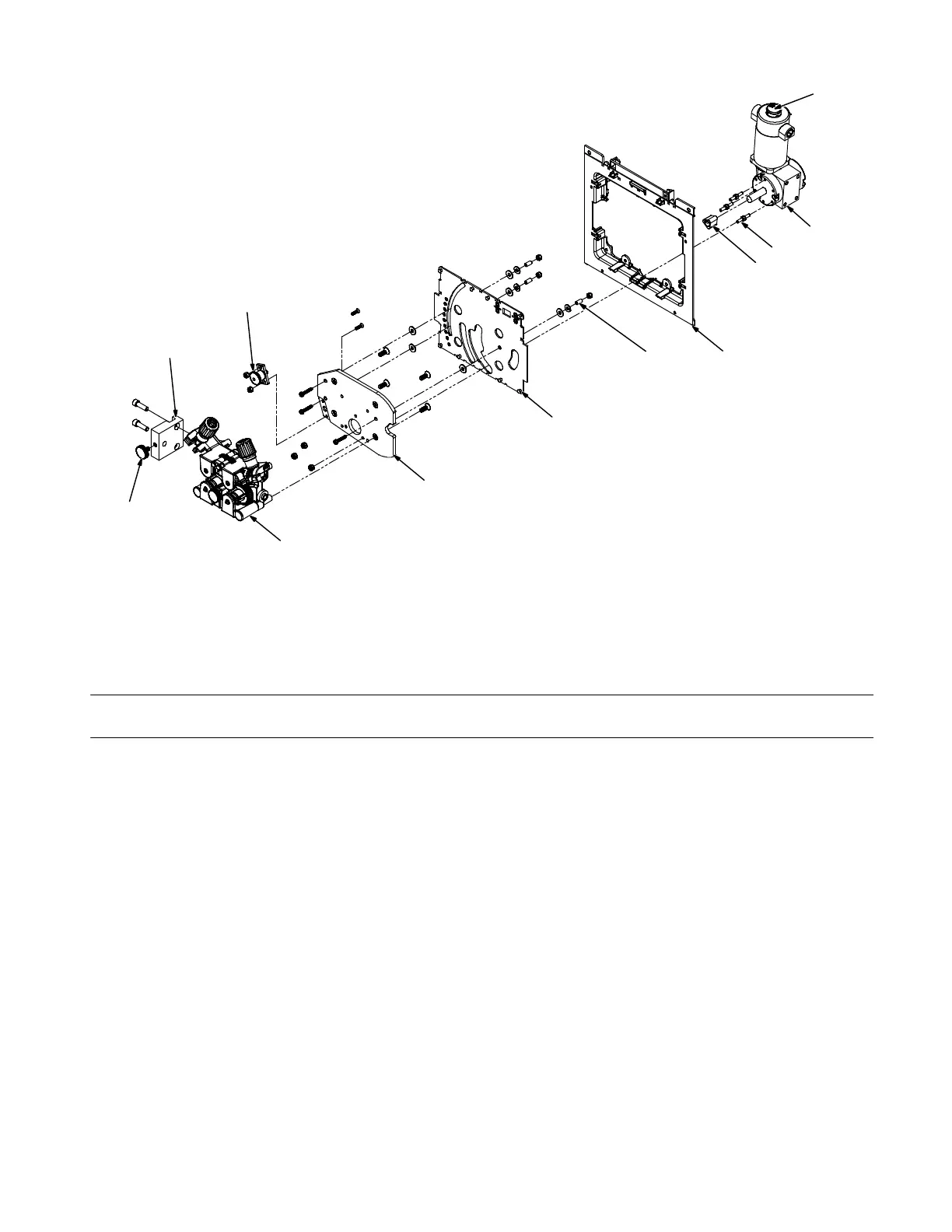

Figure 8-4. Left-Hand Wire Drive Assembly
Description
No.
Mkgs.
No.
Figure 8-4. Left-Hand Wire Drive Assembly (Figure 8-1, Item 14)
Quanti
1 255451 Encoder, Optical 1... .......... .. .................................................
261787 Plug, w/Cable For Encoder 1................ .. ........................................
2 M1 257629 Motor, Gear 1/11HP 40VDC R Angle Rh 1... ... .. .. .............................
3 271862 Stand-off, 10-32 X 1.125 Lg .313 Hex Stl M&M 3... .......... .. .......................
4 253589 Hub, Gear 1... .......... .. .......................................................
5 267153 Frame, Drive Assy Machined 1... .......... .. ......................................
6 266421 Spacer, Al .166 Id X .250 Od X .562 Lg 3... .......... .. .............................
7 267162 Plate, Drive Mtg Dual 1... .......... .. .............................................
8 267147 Insulator, Motor Mount Lh 1... .......... .. .........................................
9 Figure 8-6 Drive Assy, Wire No Motor Single 1... ........ .. ..................................
10 263322 Screw, Thumb Stl .250−20 x .500 Pld Nylon Head 1... .......... .. ....................
11 256640 Block, Inlet 1... .......... .. ......................................................
12 266403 Pin, Retractable Spring Plunger Plate Mtg 1... .......... .. ...........................
+ When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
