OM-266409 Page 48
. Hardware is common and
not available unless listed.
269 727-A
1
5
12
2
6
13
3
7
10
4
11
8
9

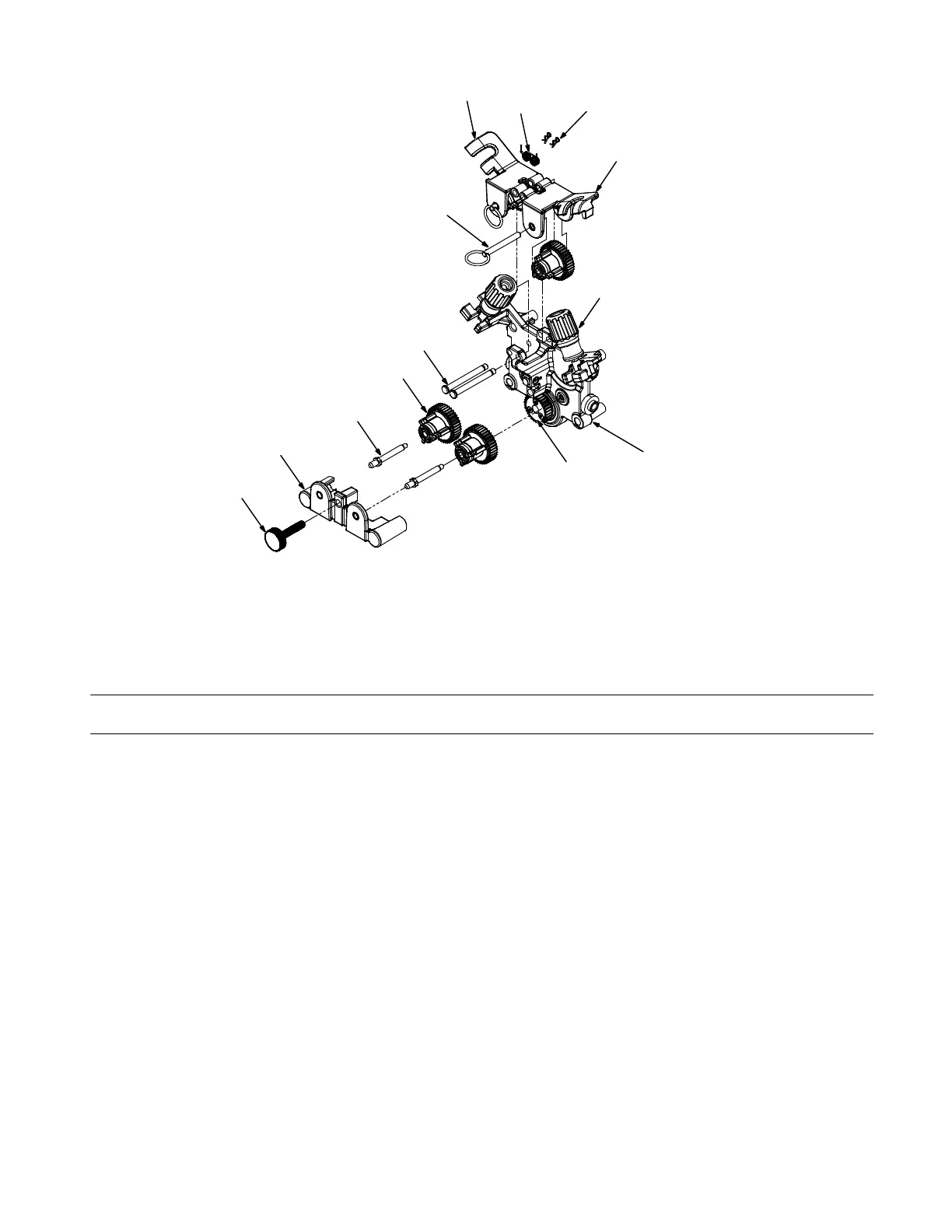

Figure 8-6. Drive Assembly
Description
No.
Mkgs.
267733
No.
Figure 8-6. Drive Assembly (Figure 8-4, Item 9; Figure 8-5, Item 9)
Quanti
1 260262 Assy, Pressure Arm Left 1.. .............. .. ..........................................
2 260263 Assy, Pressure Arm Right 1.. .............. .. ........................................
3 259150 Spring,Double Torsion .408 OD .051 Wire 1.. .............. .. ..........................
4 256877 Pin, Gear Idler 2.. .............. .. ..................................................
5 261793 Pin, Clevis .250 OD X 2.500 Lg W/Groove 2.. .............. .. .........................
6 266830 Carrier, Drive Roll W/Cmpnts 24 Pitch .250 In Shaft 4.. .............. .. ..................
7 260239 Drive Body Assy, Cast 1.. .............. .. ...........................................
8 252217 Knob Assy, Tension Adjust 2.. .............. .. ........................................
9 251473 Gear, Drive Pinion 1.. .............. .. ...............................................
10 258383 Shaft, Drive Roll 2.. .............. .. .................................................
11 263359 Screw, Thumb Stl .312-18 X 1.500 Pld Nylon Head 1.. .............. .. ..................
12 260260 Shaft Assy, Support Cover 1.. .............. .. ........................................
13 151828 Pin, Cotter Hair .042 X .750 2.. .............. .. .....................................
+ When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
