OM-281426 Page 10
F
Complete Parts List is available at www.MillerWelds.com

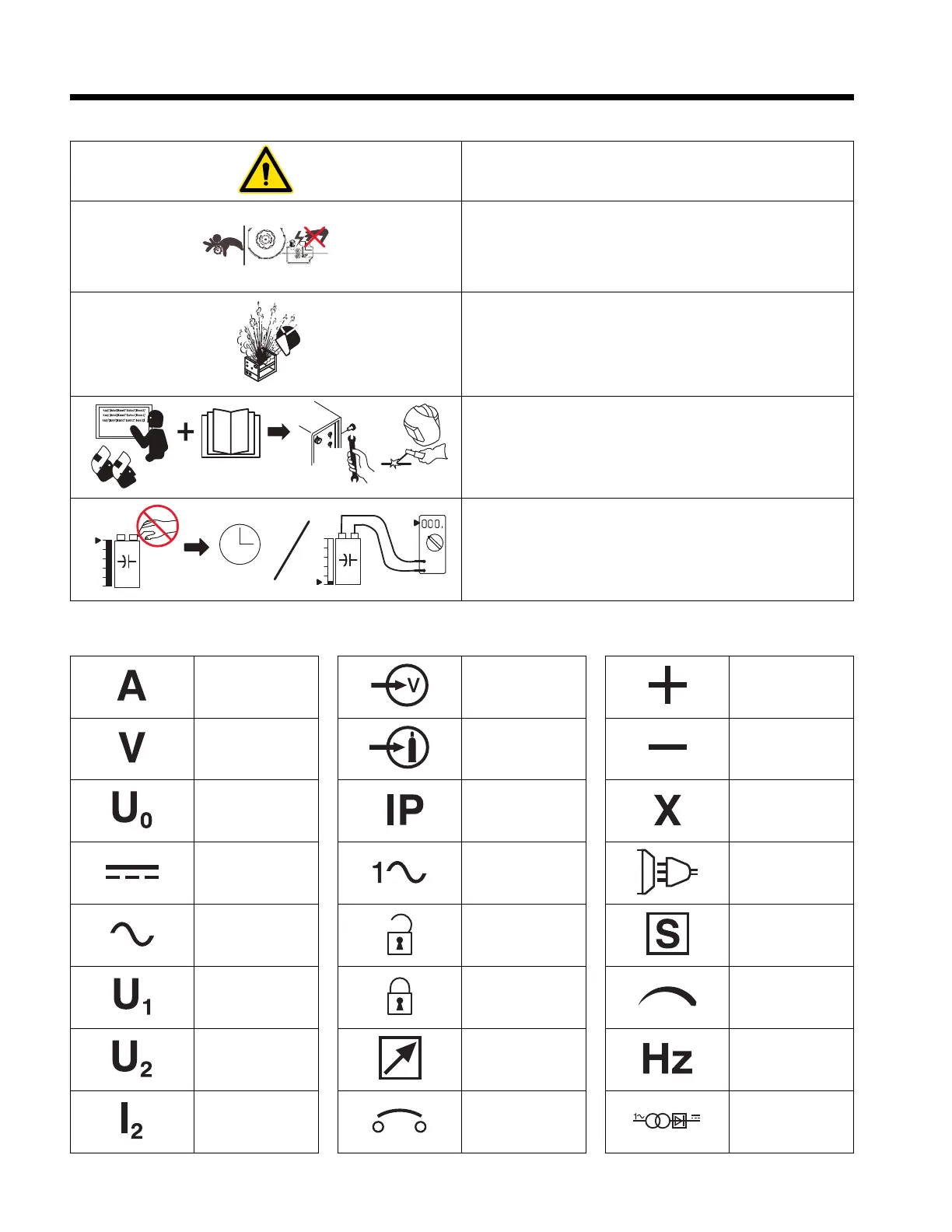

SECTION 3 – DEFINITIONS
3-1. Additional Safety Symbol Definitions
Warning! Watch Out! There are possible hazards as shown by the
symbols.
OM-
Safe75 2017 04
Safe82 2012 07
Safe95 2012 05
Safe105 2012 09
Drive rolls can injure fingers. Welding wire and drive parts are at weld-
ing voltage during operation - keep hands and metal objects away.
OM-
Do not work on unit if engine is running. Stop engine first.
Safe21 2017 04
Do not smoke while fueling or if near fuel.
Safe22 2017 04
Stop engine before fueling.
Safe23 2017 04
Do not fuel a hot engine.
Safe24 2017 04
Use lift eye to lift unit and properly installed accessories only, not gas cylinders. Do not exceed maximum lift eye
rating (see Specifications).
Safe25 2012 05
When power is applied failed parts can explode or cause other parts to explode.
Safe26 2012 05
Flying pieces of parts can cause injury. Always wear a face shield when servicing unit.
Safe27 2012 05
Always wear long sleeves and button your collar when servicing unit.
Safe28 2012 05
After taking proper precautions as shown, connect power to unit.
Safe29 2012 05
Disconnect input plug or power before working on machine.
Safe30 2012 05
When power is applied failed parts can explode or cause other parts
to explode.
OM-
Keep your head out of the fumes
Safe7 2017 04
Become trained and read the instructions before working on the
machine or welding.
Safe40 2012 05
Become trained and read the instructions before working on the
machine or cutting.
Safe41 2012 05
Remove unit from shipping crate. Remove Owner’s Manual from unit.
Follow instructions to install muffler.
Safe46 2012 05
Safe51 2012 05
Every 100 hours, check and clean filter and check condition of hoses.
Safe54 2017 04
During the first 50 hours of operation keep welding load above 200
amperes. Do not weld below 200 amperes of output.
Safe55 2012 05
After the first 50 hours of operation, change the engine oil and filter.
Safe57 2017 04
Wear dry insulating gloves. Do not touch electrode (wire) with bare hand. Do not wear wet or damaged gloves.
Become trained and read the instructions before working on the
machine or welding.
Safe65 2012 06
Induction heating can cause injury or burns from hot items such as rings, watches, or parts.
Safe74 2012 07
Become trained and read the instructions before working on the ma-
chine or welding.
OM-
Hazardous voltage remains on input capacitors after power is turned
off. Do not touch fully charged capacitors. Always wait 60 seconds
after power is turned off before working on unit, AND check input ca-
pacitor voltage, and be sure it is near 0 before touching any parts.
Safe42 2017 04
Hazardous voltage remains on input capacitors after power is turned
off. Do not touch fully charged capacitors. Always wait 5 minutes after
power is turned off before working on unit, AND check input capacitor
voltage, and be sure it is near 0 before touching any parts.
Safe43 2017 04
=
<
60°
Always lift and support unit using both handles. Keep angle of lifting
device less than 60 degrees.
Use a proper cart to move unit.
Safe44 2012 05
Engine fuel plus flames or sparks can cause fire.
Safe45 2012 05
Remove unit from shipping crate. Remove Owner’s Manual from unit.
Follow instructions to install muffler.
Safe46 2012 05
Read Owner’s Manual. Read labels on unit.
Safe47 2012 05
Safe49 2012 05
Move jumper links as shown on inside label to match input voltage at
job site. Include extra length in grounding conductor and connect
grounding conductor first. Connect line input conductors as shown on
inside label. Double-check all connections, jumper link positions, and
input voltage before applying power.
Safe50 2012 05
Plugged filter or hoses can cause overheating to the power source
and torch.
Safe51 2012 05
Every 100 hours, check and clean filter and check condition of hoses.
Use coolant suggested by the manufacturer.
Safe52 2012 05
°
Falling unit can cause injury. Do not move or operate unit where it could tip.
Safe53 2017 04
Hazardous voltage remains on input capacitors after power is turned
off. Do not touch fully charged capacitors. Always wait 5 minutes after
power is turned off before working on unit, AND check input capacitor
voltage, and be sure it is near 0 before touching any parts.
3-2. Miscellaneous Symbols And Definitions
Amperage
Voltage
Rated No Load Volt-
age (OCV)
Direct Current (DC)
Alternating Current
(AC)
Primary Voltage
Conventional Load
Voltage
Rated Welding
Current
Input Power or Input
Voltage
Gas Input
Internal Protection
Rating
Single Phase
Unlocked
Locked
Remote
Circuit Breaker
Positive
Negative
Duty Cycle
Line Connection
Suitable for Welding
in an Environment
with Increased Risk
of Electric Shock
Increase
Hertz
Single Phase Static
Frequency Convert-
er-Transformer-
Rectifier
To Next Page
