5-15. Removing MIG Gun To Replace With A Spool Gun

A complete Parts List is available at www.MillerWelds.com
OM-281426 Page 19

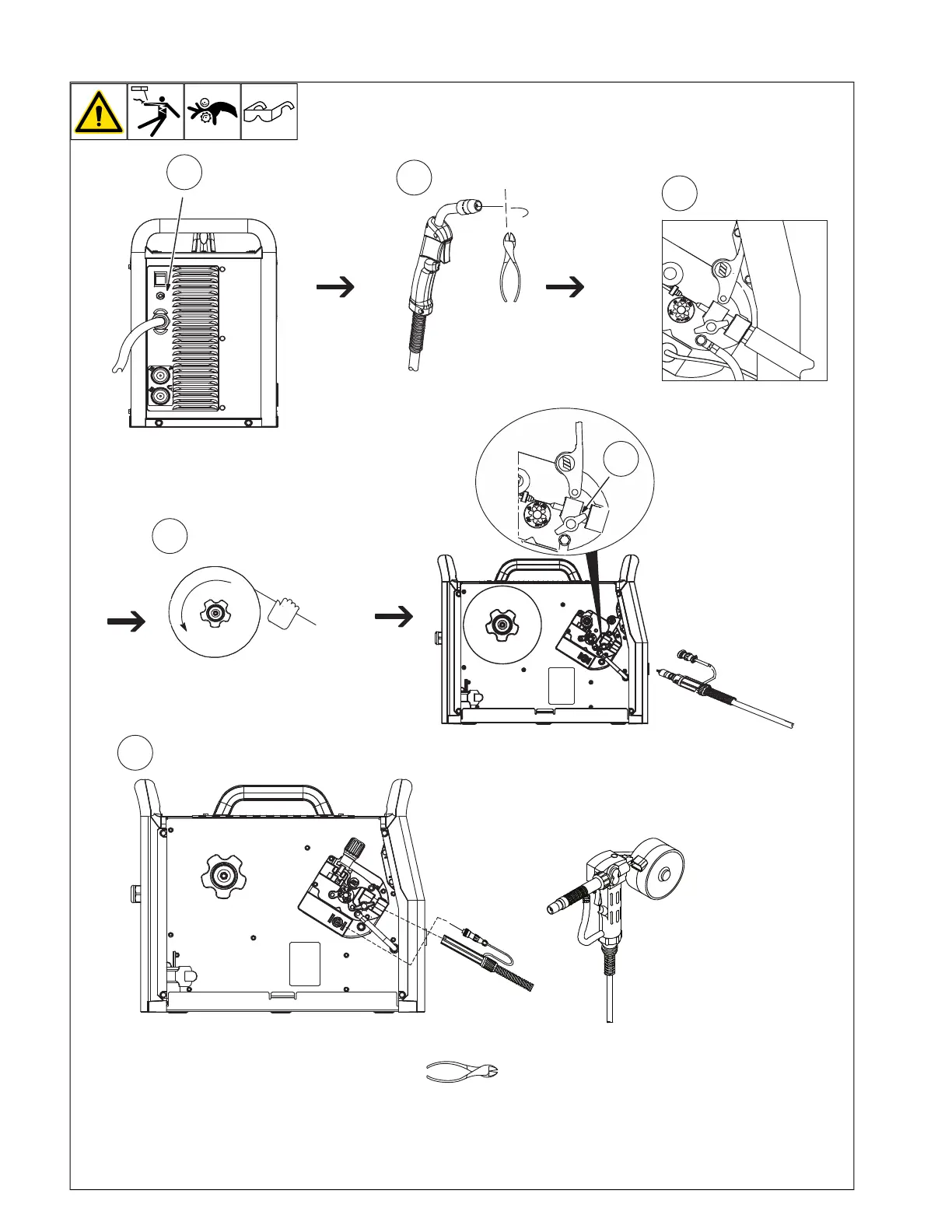

2-12. Removing MIG Gun To Replace With A Spool Gun
282718A / Ref. 802982A / Ref. 282722A / Ref. 282721A
