SECTION 6 – OPERATION

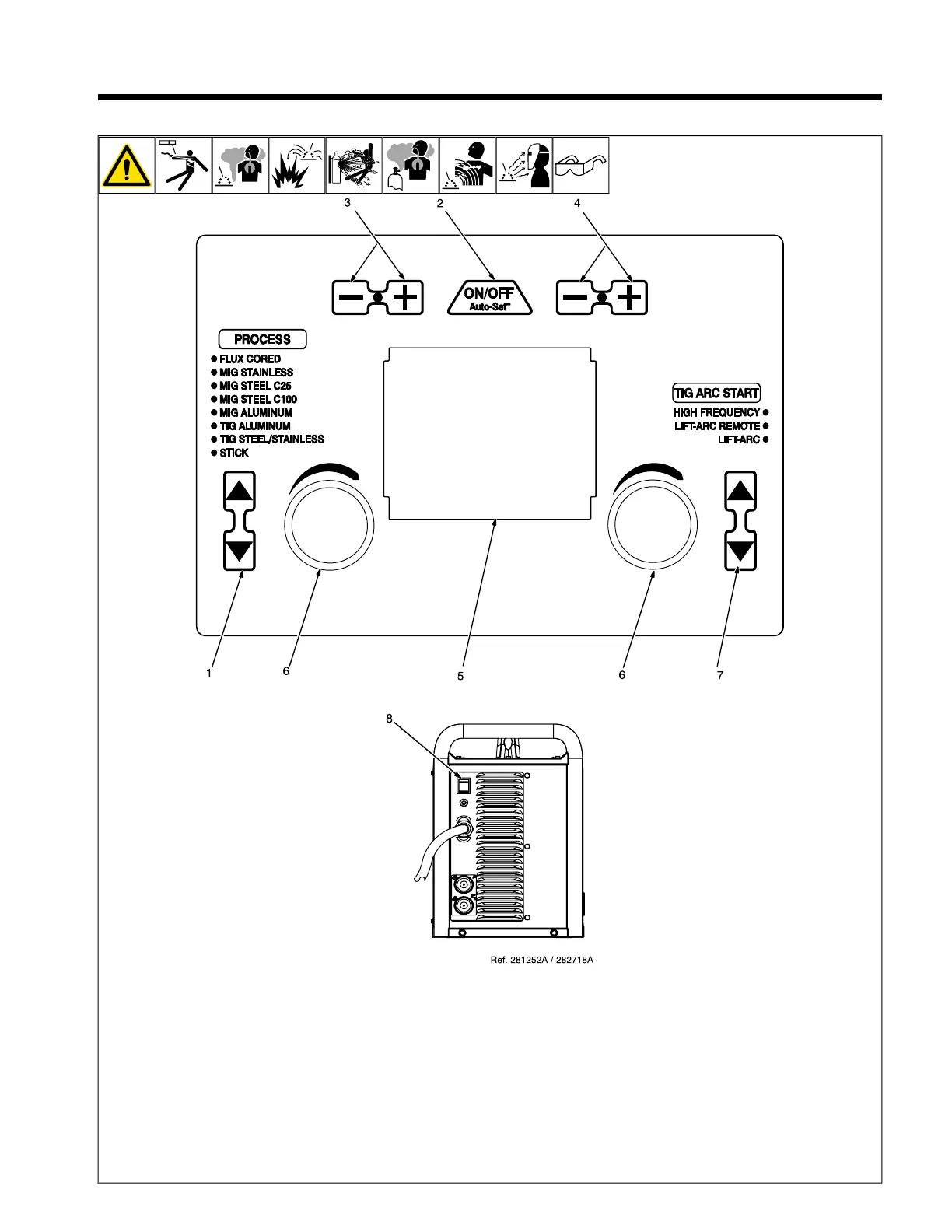

6-1. Controls
Rear View
1 Process Select Buttons
Press the up and down buttons to select de-
sired welding process.
2 Auto-Set Button
Press button to turn Auto-Set On or Off. Au-
to-Set is On when illuminated.
3 Wire/Rod/Tungsten Buttons
Press the Plus (+) or Minus (-) button to se-
lect the size of wire, rod, or tungsten for the
selected process.
F
When MIG Aluminum process is se-
lected, Wire/Rod/Tungsten buttons are
used to select type of spool gun being
used.
4 Material Thickness Buttons
Press the Plus (+) or Minus (-) button to se-
lect material thickness for the selected
process.
5 Display
6 Adjustment Knobs
7 TIG Arc Start Select Buttons
Press the up and down buttons to select de-
sired TIG arc start.
8 Power Switch
Use switch to turn unit On or Off.
