5-5. Connecting 120 Volt Input Power
A complete Parts List is available at www.MillerWelds.com
OM-281426 Page 9
Input6 2011 03 275173A / Ref. 805 474-A

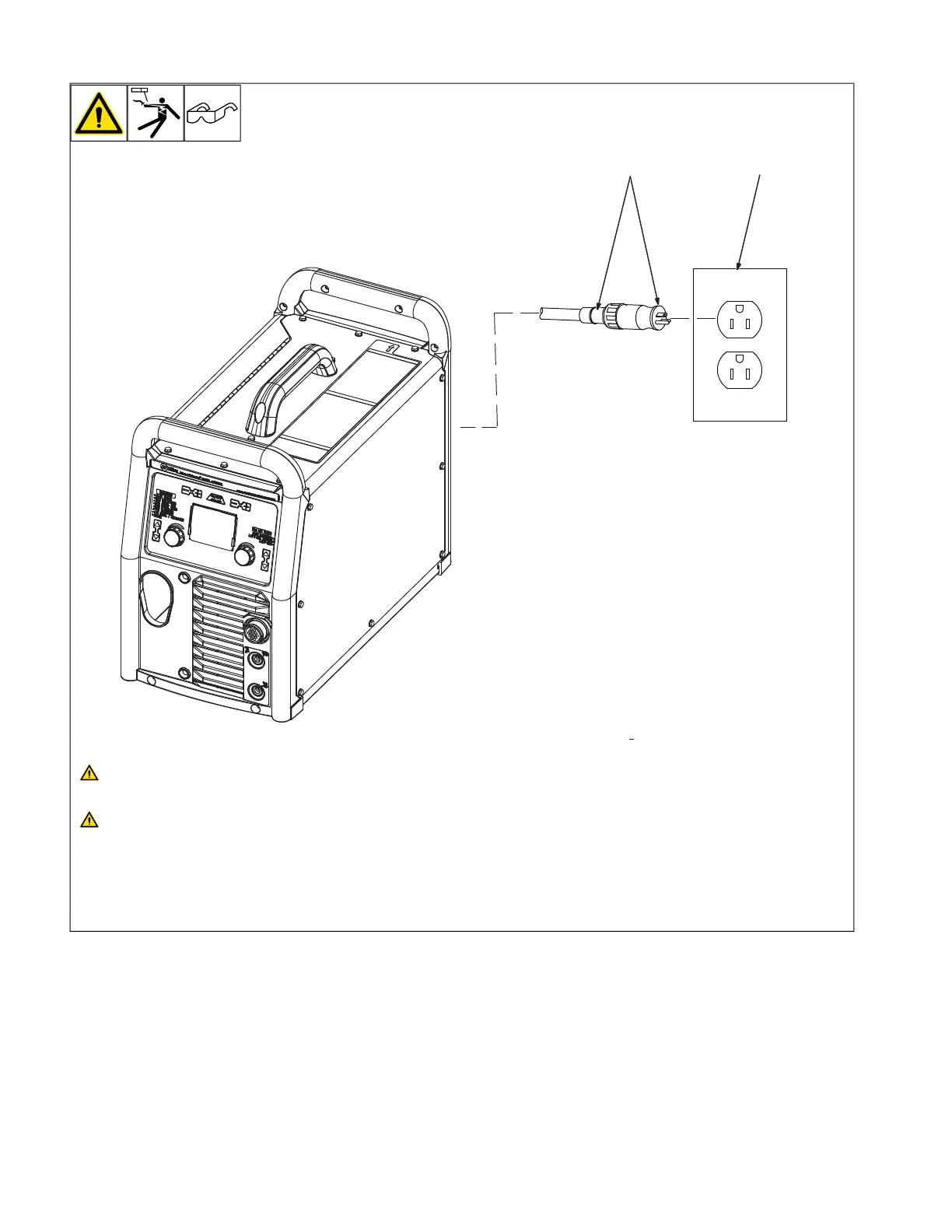

2-2. Connecting 120 Volt Input Power
1
2
Installation must meet all National
and Local Codes —have only quali-
fied persons make this installation.
Special installation may be required
where gasoline or volatile liquids
are present - see NEC Article 511 or
CEC Section 20.
NOTICE – The Auto-Line circuitry in this unit
automatically links the power source to the
primary voltage being applied, either 120 or
240 VAC.
See rating label on unit and check input volt-
age available at site.
For 120 volts AC input power, a 15 or 20 am-
pere individual branch circuit protected by
time-delay fuses or circuit breaker is
required.
1 Multi-Voltage Plug And Power Cord Con-
nector (NEMA Type 5-15P Plug Shown)
For multi-voltage plug connections, see Sec-
tion 5-2.
2 Receptacle - NEMA Type 5-15R (Cus-
tomer Supplied)
To Next Page
