Miller Multimatic 220 - MIG Gun Connection Inside Unit

OM-281426 Page 26
F
Complete Parts List is available at www.MillerWelds.com

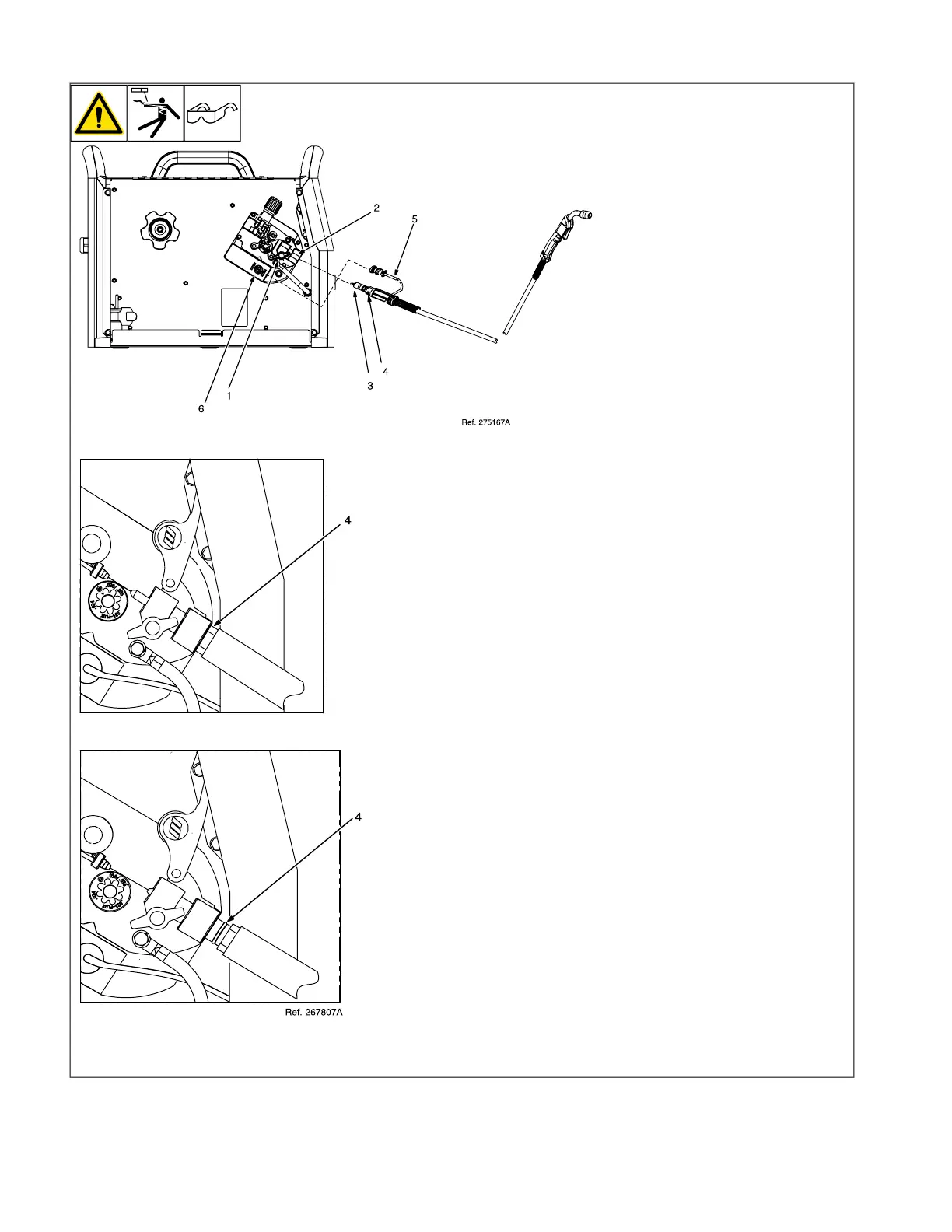

5-11. MIG Gun Connection Inside Unit
Correct
Incorrect
1 Gun Securing Knob
2 Gun Block
3 Gun Outlet Wire Guide
4 Gun End
Loosen knob. Insert end of gun through
opening in front panel until gun end bot-
toms against gun block. Tighten knob.
5 Trigger Control Cable
6 Four Pin Trigger Control Cable
Receptacle
Route trigger control cable through MIG gun
hole.
Connect plug on end of cable to four pin re-
ceptacle inside unit.
F
Be sure that gun end is tight against
drive assembly.
