OM-281426 Page 24
F
Complete Parts List is available at www.MillerWelds.com
5-9. TIG Welding Connections
A complete Parts List is available at www.MillerWelds.com
OM-281426 Page 13

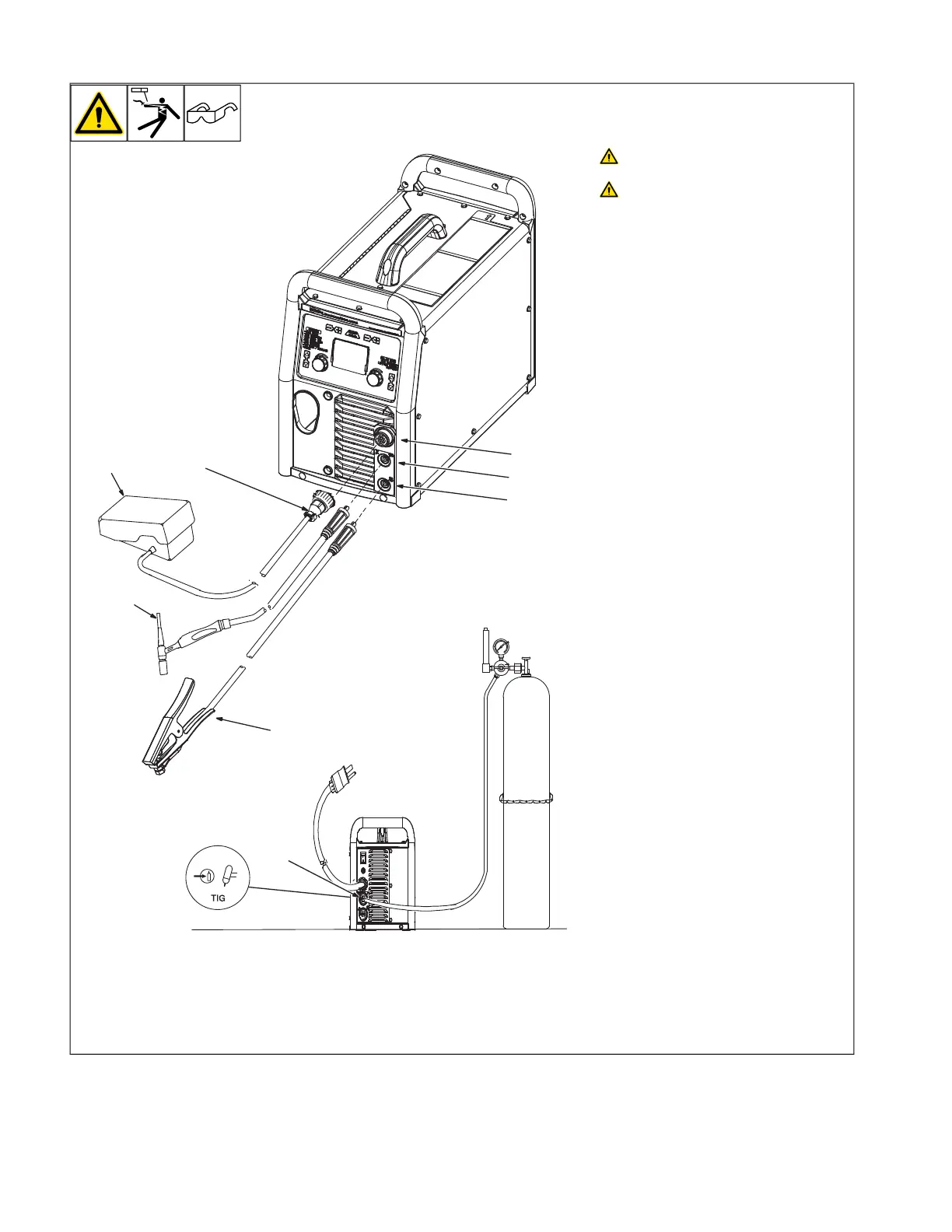

2-6. TIG Welding Connections
Ref. 282724A / Ref. 282719A
2
1
3
4
5
6
7
8
Turn off unit and disconnect input
power before making connections.
Do not use worn, damaged, under-
sized, or repaired cables.
1 Weld Output Receptacle
2 Work Clamp Receptacle
3 TIG Torch And Cable
4 Work Clamp And Cable
Connect TIG torch cable to the electrode re-
ceptacle and connect work cable to work re-
ceptacle. Turn connectors clockwise.
Ensure all connections are tight.
5 Foot Control
6 Remote Control Cable
7 Remote Control Receptacle
Connect foot control to remote control
receptacle.
8 TIG Shielding Gas Connection
Use Argon gas for TIG welding (see Section
5-12).
To Next Page
