INSTALLATION
4-2 CONNECTION OF TUBING
Rotate the Synergy so you can see the back of the system (see photo A).
A
FEEDWATER
TUBING
F
EEDWATER TUBING

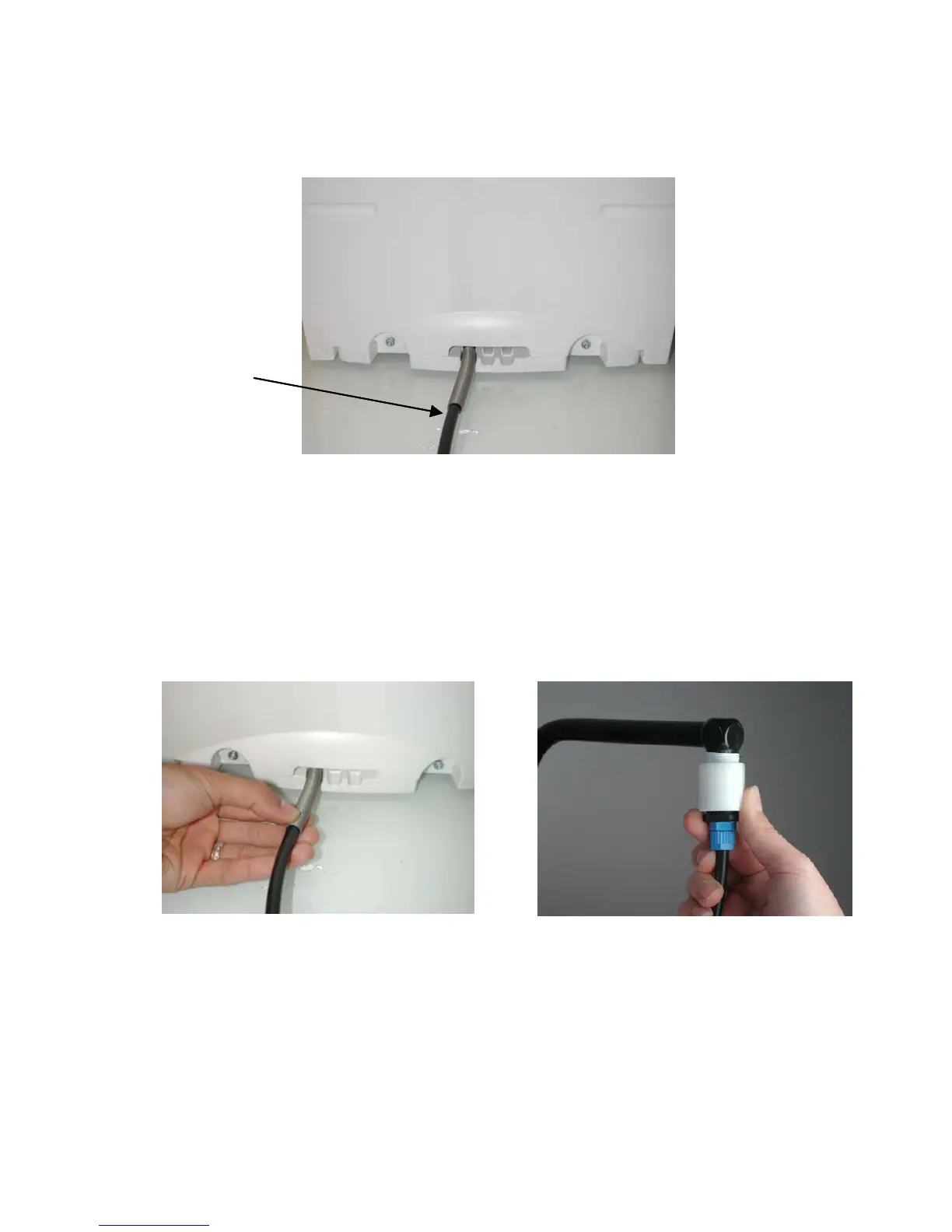

Locate the Feedwater Tubing exiting from the bottom of the system (B). A 1/2 inch Female GAZ
fitting with a screen filter is attached at the end of this tubing. Unroll it until the fitting reaches the
Feedwater source.
Apply white tape on the thread of the 1/2 inch Male GAZ valve or fitting of the Feedwater source.
Connect the fitting to the valve (C).
B
C
FEEDWATER TUBING
- 9 -
