TRANSDUCER
Run the transducer cable in grounded metal conduit, separate from other wiring,
(except TS-3 temperature sensor wiring, if applicable).
Typically, one transducer is used. However, if differential or average level monitoring
is required, 2 transducers are used.

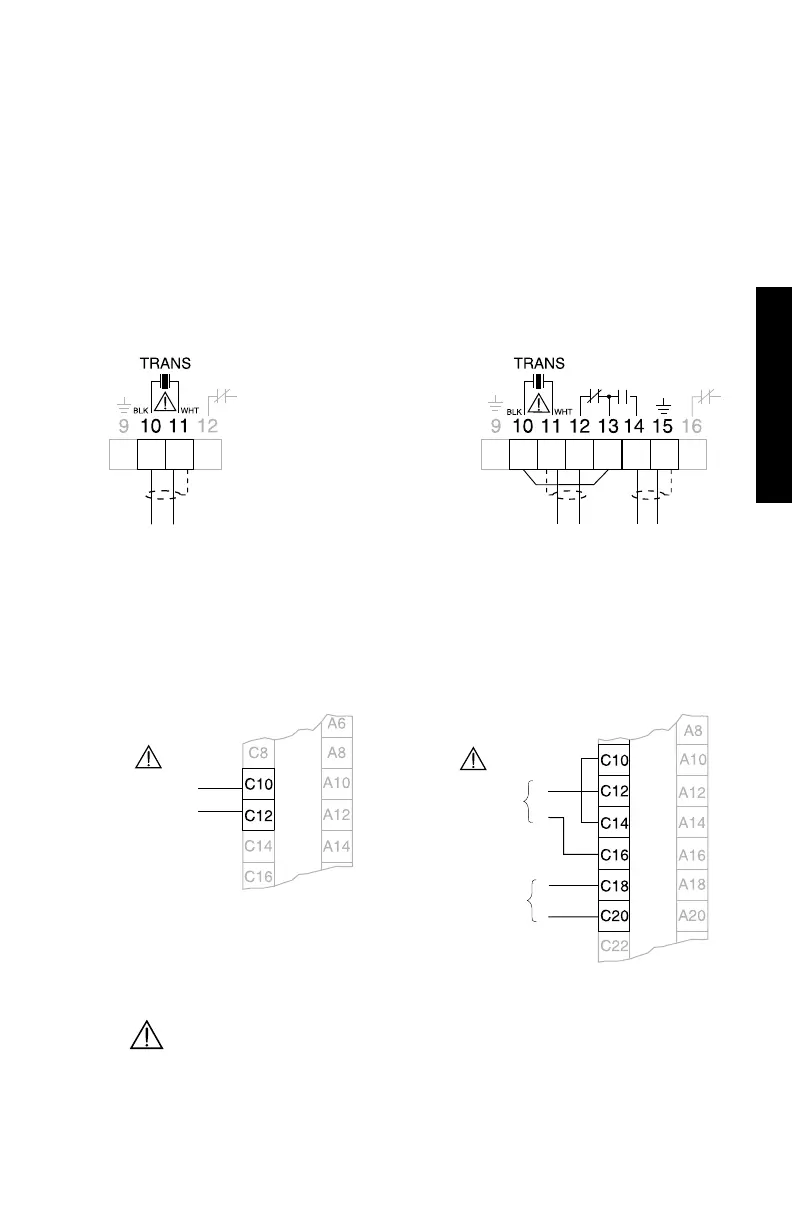

Wall Mount
Rack or Panel Mount
to transducer
Dual Transducer
Single Transducer
See transducer
instructions for
wiring details.
blk
wht
to
transducer
wht
blk
blk
jumper
to
transducer
#1
to
transducer
#2
Dual Transducer
Single Transducer
Hazardous voltage present on transducer terminals during operation.
INSTALLATION
PL-507 19
