TEMPERATURE SENSOR
All Milltronics Echomax and ST-H transducers have an internal temperature sensor.
For optimum accuracy, use a separate TS-3 temperature sensor if:
» the transducer is exposed to direct sunlight (or other radiant heat source),
» the transducer connected is not an Echomax or ST-H, or
» the transducer face and monitored surface temperature differs.
» faster response to temperature changes are required.
(See TECHNICAL REFERENCE Sound Velocity).

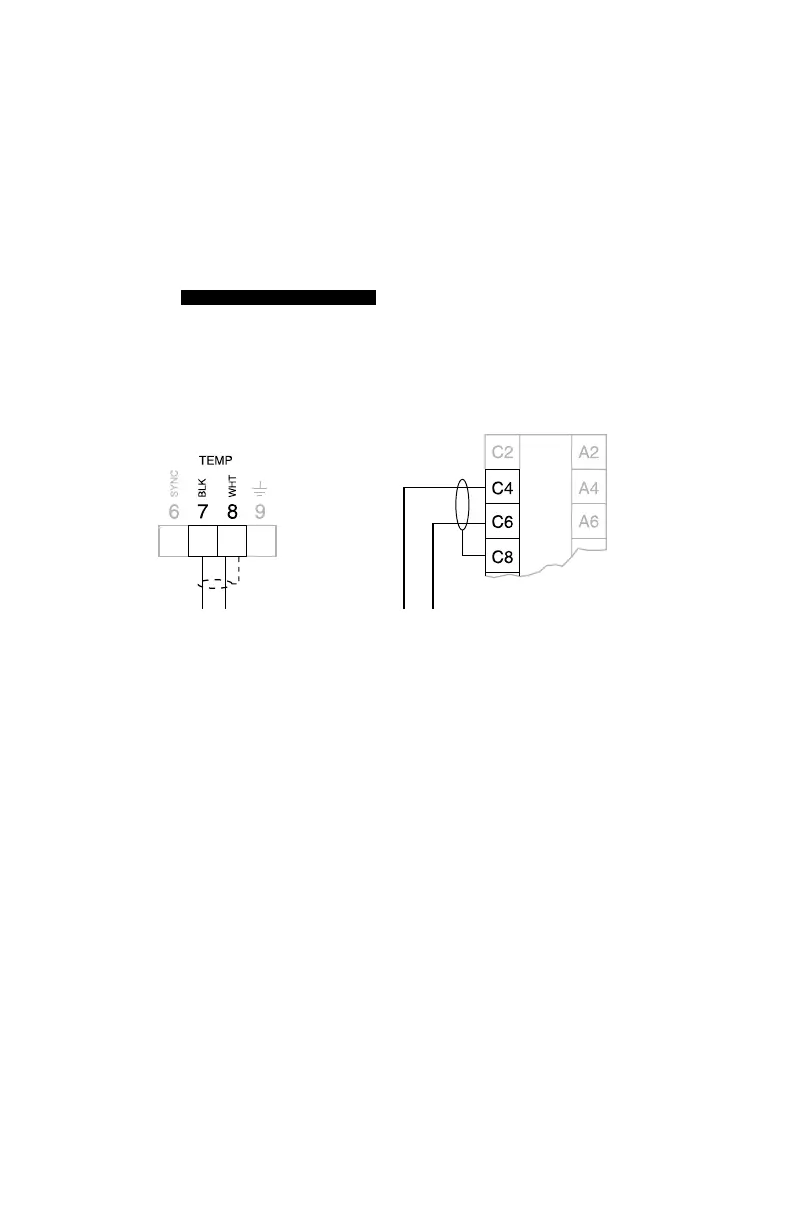

Wall Mount Rack or Panel Mount
See TS-3 instructions for wiring detail.
Use a TS-3 temperature sensor only. Don’t jumper unused TS-3 terminals.
blk
wht
to optional TS-3
to optional TS-3
TECHNICAL REFERENCE
PL-507 20
