POWER
The HYDRO+ uses 100, 115, 200, or 230 Vac or 9 to 30 Vdc power. If ac and dc
power are supplied, the HYDRO+ draws power from the ac supply. In the event of an
ac power interruption, the dc supply is used until ac power is restored.
IMPORTANT!
Before applying ac power (mains), ensure the correct voltage is selected!
Never operate the HYDRO+ with the enclosure lid open,
or with the ground (earth) wire disconnected!
Before applying power to the HYDRO+ for the first time,
ensure any connected alarm/control equipment is disabled
until satisfactory system operation and performance is verified!

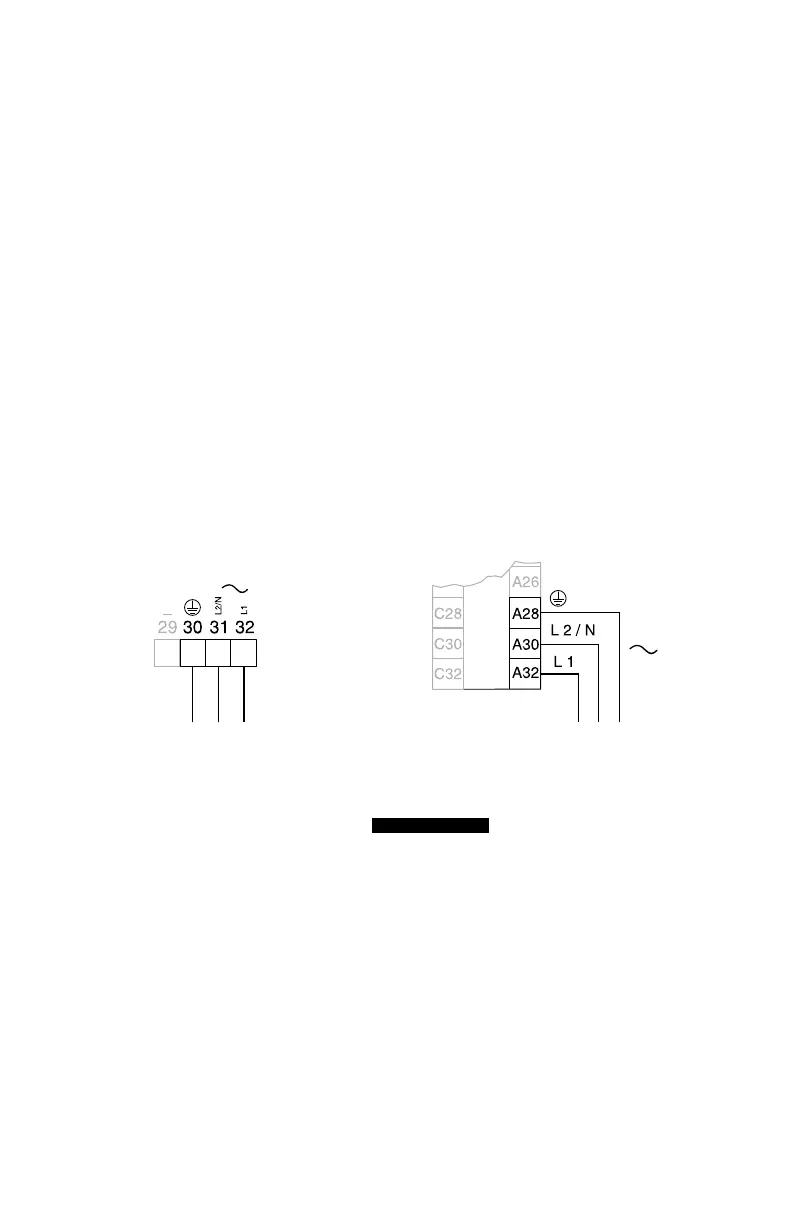

AC SUPPLY WIRING
Set voltage selection switches per Mounting instructions.
Rack or Panel Mount
to ac supply
to ac supply
Wall Mount
INSTALLATION
PL-507 24
