GENERAL APPLICATION

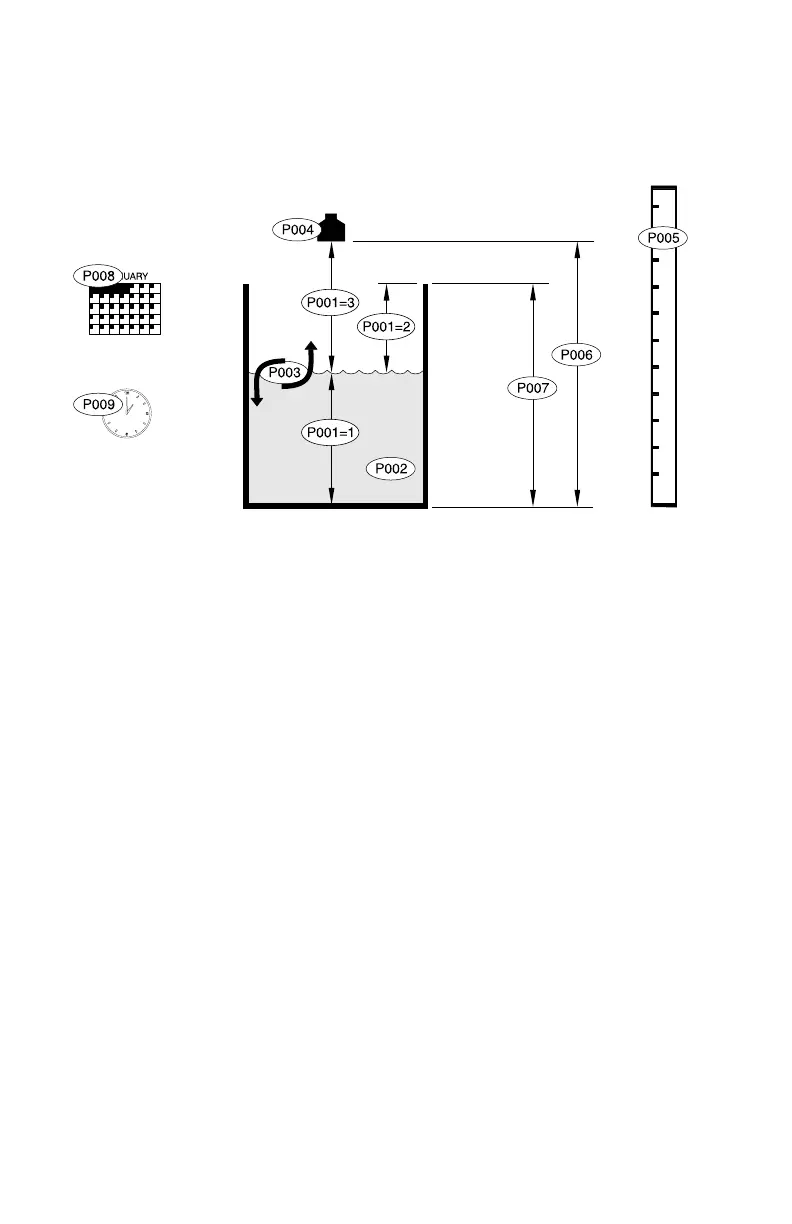

PARAMETER PRESET OPERATION
P001 Operation 3 = distance display Reading referenced to transducer face
P002 Material 1 = liquid anticipates echoes from a flat reflective surface
P003 Response 2 = 1 m/min typical liquid surface rate of change
P004 Transducer 100 = ST-H compensates for temperature variation
P005 Units 1 = metres displays all linear dimensions in metres
P006 Empty 8.000 0% level bar graph reference point.
P007 Span 8.000 100% level bar graph reference point.
P008 Date YY.MM.DD automatic leap year adjustment
P009 Time HH.MM.SS 24 hour format
If power is applied before any programming is performed, the HYDRO+ starts running,
using the parameter preset values. As long as the transducer connected has an
internal temperature sensor and a maximum range of 15 m (50 ft) or less, the preset
Transducer (P004) value is suitable for operator orientation with HYDRO+ operation.
If "Error" and the transducer terminal numbers are displayed, the transducer does not
have an internal temperature sensor. See Transducer (P004) options.
The HYDRO+ operates like an ultrasonic tape measure, displaying distance from the
transducer face to the surface monitored.
PL-507 40
