Disassemble the Assemblies
Repair and Disassemb
ly
6 - 26
046-001141-00
A5/A3™ Service Manual

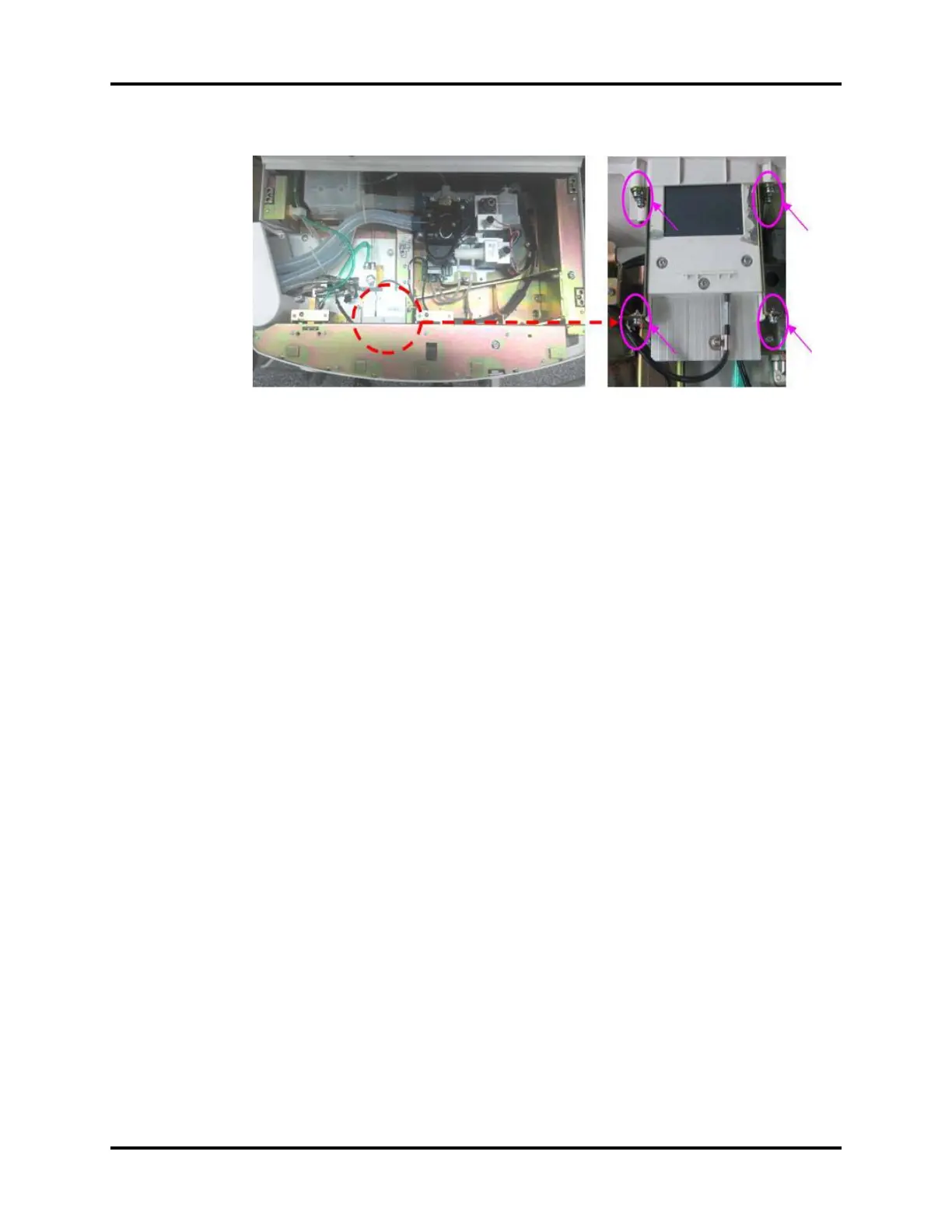

FIGURE 6-47
6.2.3.8
Remo
ve the Common Gas Outlet Assembly
1.
Remove the wo
r
k sur
face cover plate
.
2.
Unplug the tube
s from common gas ou
tlet assembly
.
365
