Introduction Replacement Parts
7 - 8 046-001141-00 A5/A3™ Service Manual

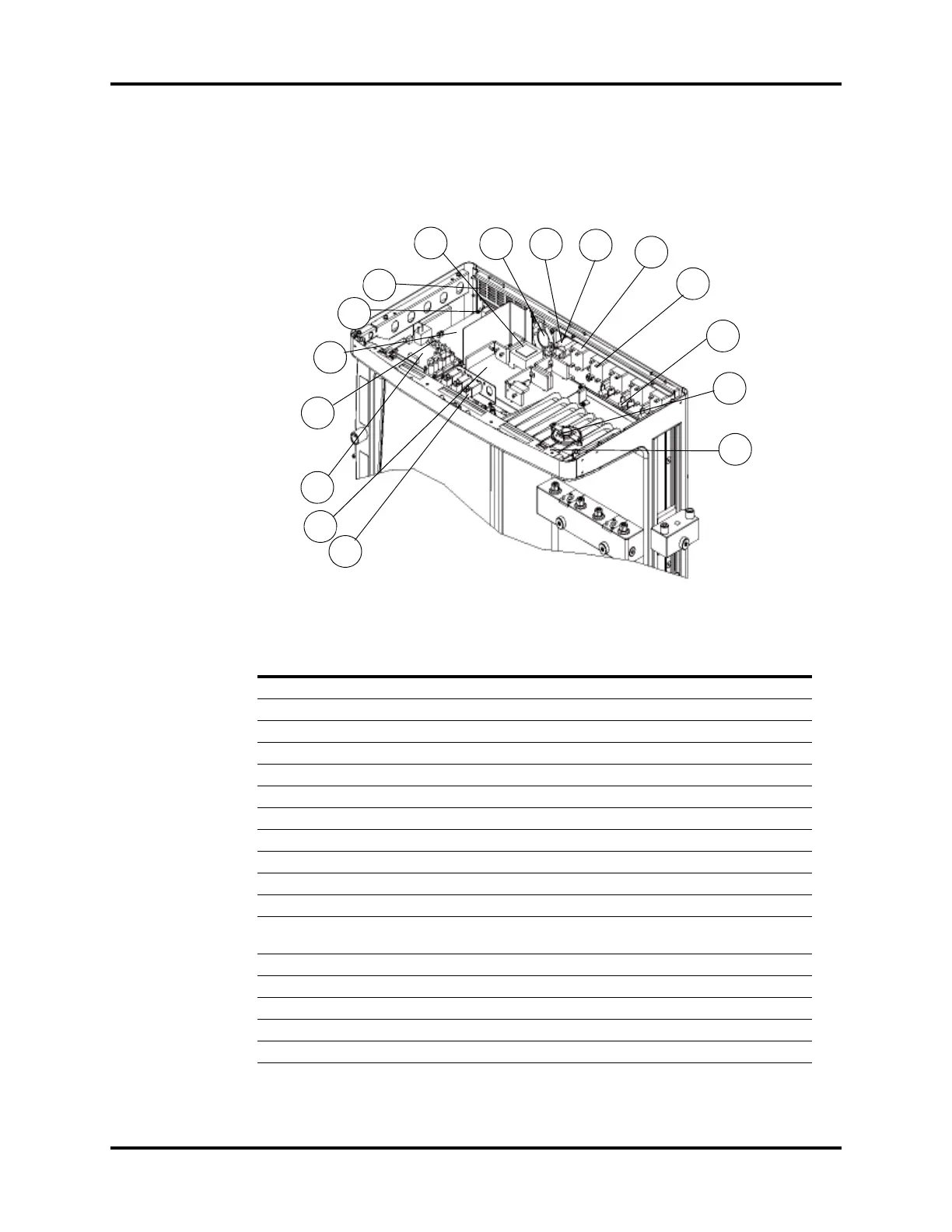

7.1.2.3 A5/A3 Hardware Box
FIG.NO. DESCRIPTION PART NUMBER
1 Top lighting board PCBA 801-0631-00039-00
2 Speaker and Connecting Cable 801-0631-00038-00
3 Auxiliary AC Output Socket (NEMA 5-15) 801-0631-00032-00
4 Breaker (3.0A) 801-0631-00031-00
5 Breaker (10.0A) (A5 only) 801-0631-00030-00
6 Filter Power 250VAC 10A Panel Mount (A5 only) 801-0631-00029-00
6a Filter (0633) (FRU) (A3 only) 801-0633-00003-00
7 Fan 801-0631-00028-00
8 Power Board PCBA 801-0631-00025-00
9 Flow Channel 042-002414-00
10 Cell battery Lithium-ion 3V35mAh D12.5*2.0 M05-010R03---
11
A5 CPU Board
A3 CPU Board
801-0631-00026-00
801-0633-00004-00
12 Battery Interface Board PCBA 801-0631-00109-00
13 Ventilator Control Board 801-0631-00027-00
14 Mother Board PCBA 801-0631-00108-00
15 Solenoid valve assembly 801-0631-00046-00
/ Fuse on power board 010-000087-00
14
13
15
5
6
6a
7
8
12
11
10
9
4
3
2
1
