A5/A3™ Service Manual 046-001141-00 7 - 9
Replacement Parts Introduction

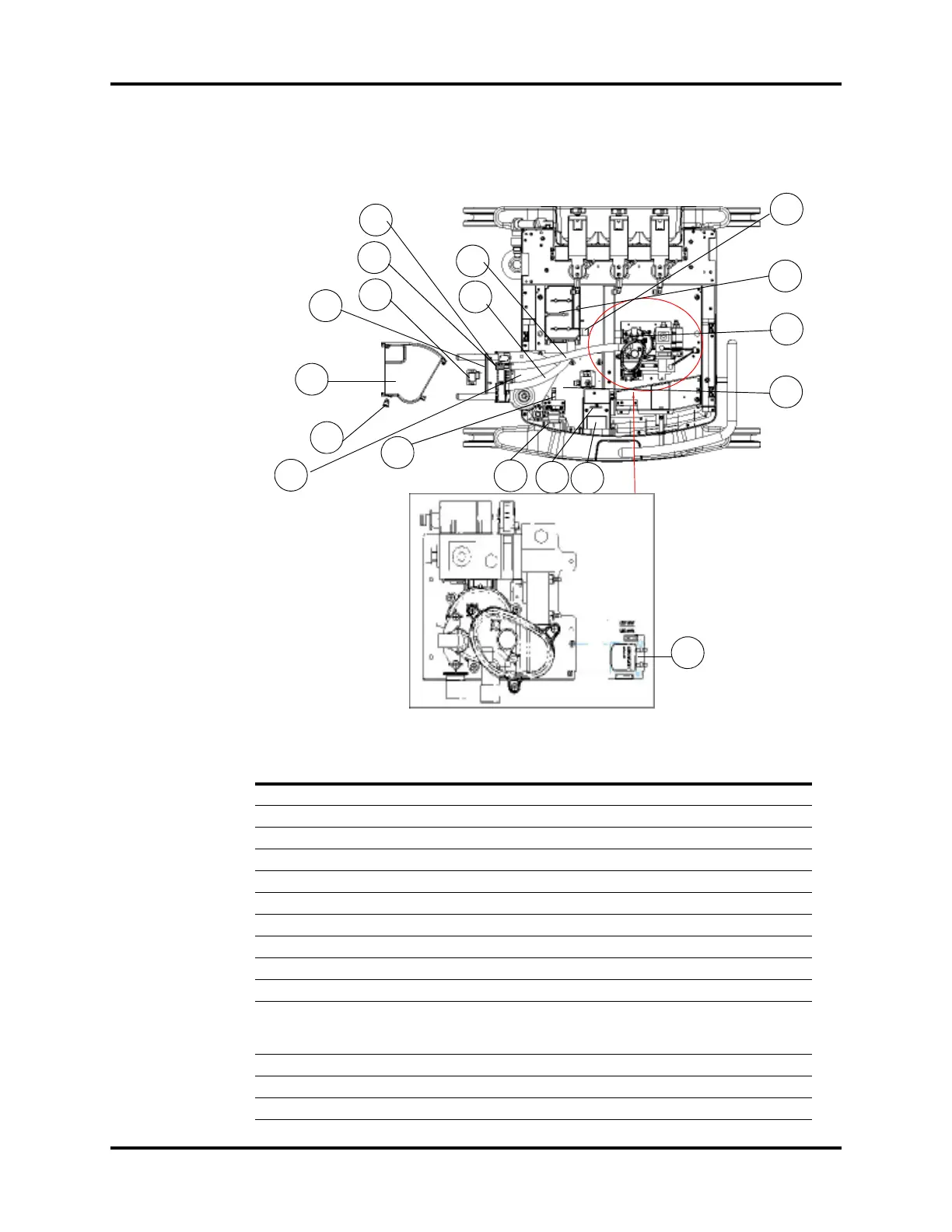

7.1.2.4 A5/A3 Work Surface
FIG.NO. DESCRIPTION (English) PART NUMBER
1 Docking Station Switch 801-0631-00101-00
2 Auto/Manual spring 801-0631-00114-00
3 Auto/Manual pin 801-0631-00113-00
4 Circuit Heater 115-034450-00
5 Docking Station Cover 801-0631-00068-00
6 O2 Connector 801-0631-00067-00
7 O2 Flush Assembly 801-0631-00044-00
8 Common Gas Outlet 801-0631-00045-00
9 Track Pad Module(A5 only) 115-017032-00
10 Touch Pad (A5 only) 801-0631-00052-00
11 Drive gas assembly
801-0631-00047-00
115-020937-00(For software version
03.04.00 and later,)
12 Sensor interface board PCBA 801-0631-00089-00
13 Docking Station Support Plate 041-007227-01
14 Docking Station Plate 041-002727-01
4
6
7
10
8
9
11
5
2
1
3
12
14
13
15
16
17
18
