A5/A3™ Service Manual
046-001141-00
7 - 13
Replacement Parts
Introduction

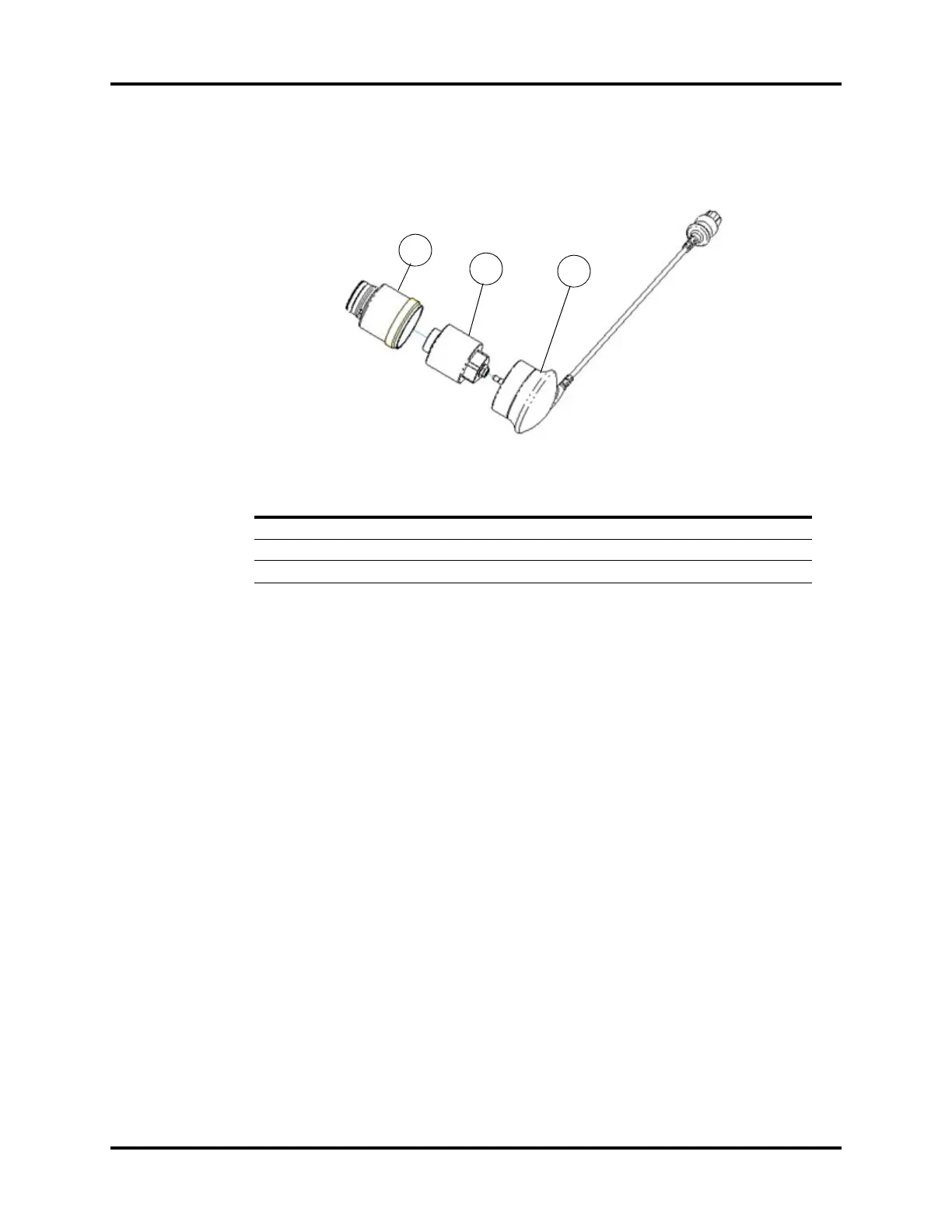

7.1.2.8
A5/A3 O2 C
able Assembly
FIG.NO
.
DESCRIPTION P
ART
NUMBER
1
O2 cell cover
801-0631-00090-00
2
Sensor Ox
ygen (O2 sensor) Medicel MO
X-2
040-001270-00
3
O2 Cell Cable
801-0631-00091-00
1
2
3
420
422
Table of Contents
