Mindray A3 - A5;A3 Display Assembly

Introduction Replacement Parts
7 - 14 046-001141-00 A5/A3™ Service Manual
7.1.2.9 A5/A3 Display Assembly

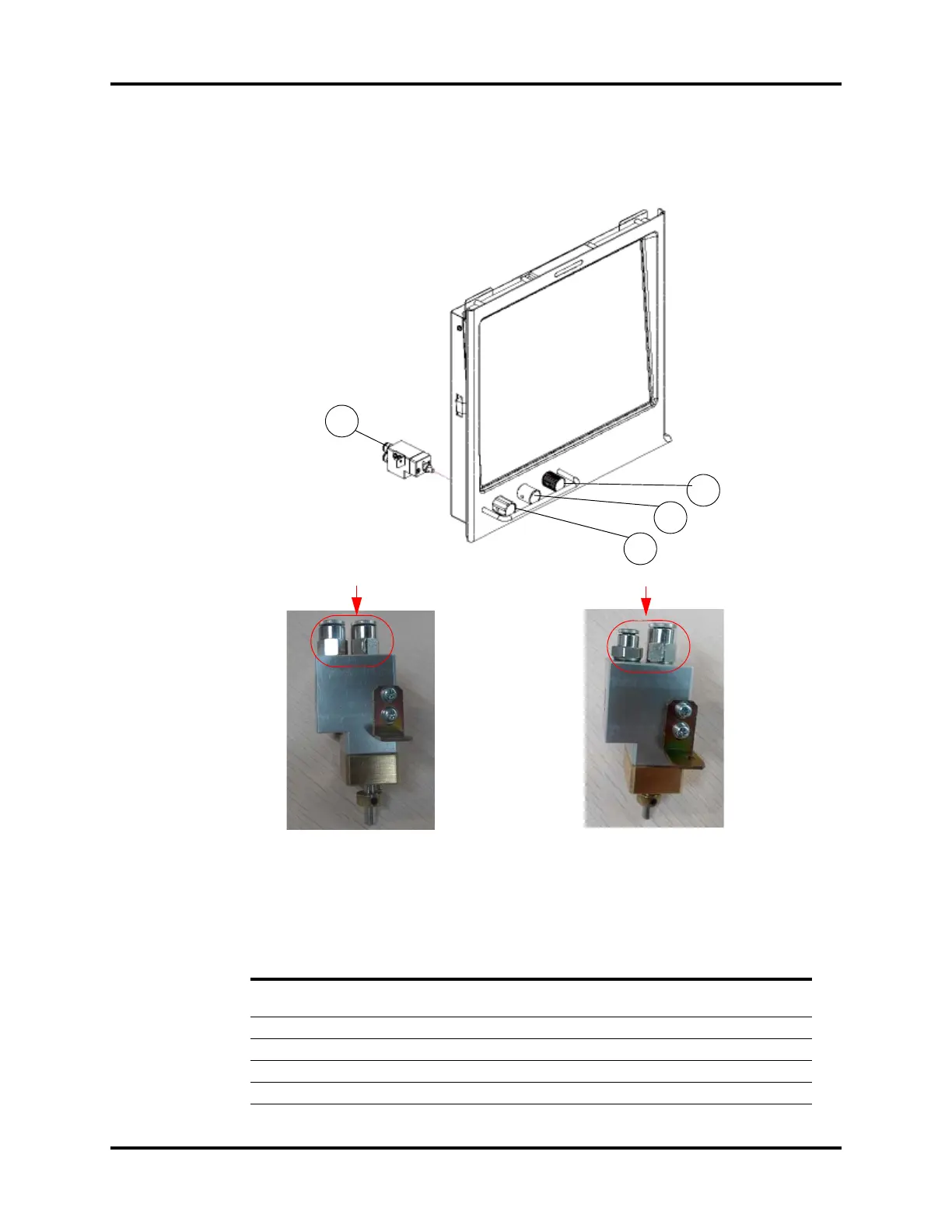

FIG. NO. DESCRIPTION PART NUMBER
1 Needle Valve Assembly
801-0631-00020-00(O2,Air)
115-037561-00(N2O)
2 Knob of N2O Needle Valve 801-0631-00021-00
3 Knob of Air Needle Valve 801-0631-00022-00
4 Knob of O2 Needle Valve 801-0631-00023-00
5 O2 knob overlay(US) 047-002233-00
1
2
3
4
one Φ4 connector and one Φ6 connector
two Φ6 connectors
Needle valve assembly (801-0631-
00020-00)
Needle valve assembly (115-
037561-00)
