A5/A3™ Service Manual 046-001141-00 7 - 15
Replacement Parts Introduction

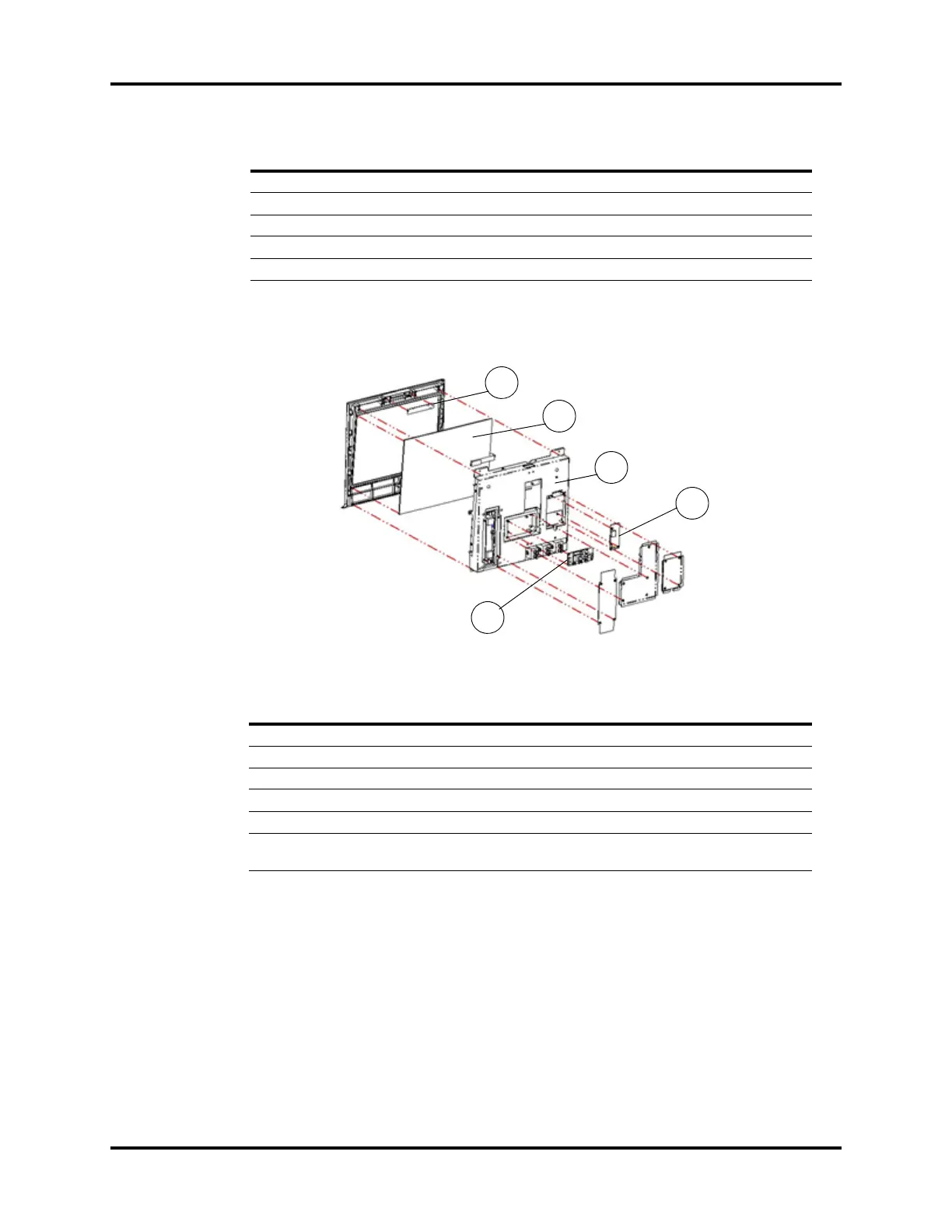

7.1.2.10 A5/A3 Display Assembly Main Body
6 N2O knob overlay(US) 047-002234-00
7 AIR knob overlay(US) 047-002235-00
8 O2 knob overlay(Canada) 047-002230-00
9 N2O knob overlay(Canada) 047-002231-00
10 AIR knob overlay(Canada) 047-002232-00
FIG. NO. DESCRIPTION PART NUMBER
FIG.NO. DESCRIPTION PART NUMBER
1 Warning Light Board PCBA 801-0631-00019-00
2 Touch Screen 801-0631-00014-00
3 Display Exchange Package 801-0631-00075-00
4 Touch Screen Control Board 801-0631-00018-00
5 Display Interface Board PCBA 801-0631-00017-00
/Display Panel
043-003173-00 (A5)
043-003534-00 (A3 and original A5)
5
4
3
2
1
