Cleaning and Disinfection Maintenance
9 - 22 Operator’s Manual of Anesthesia System

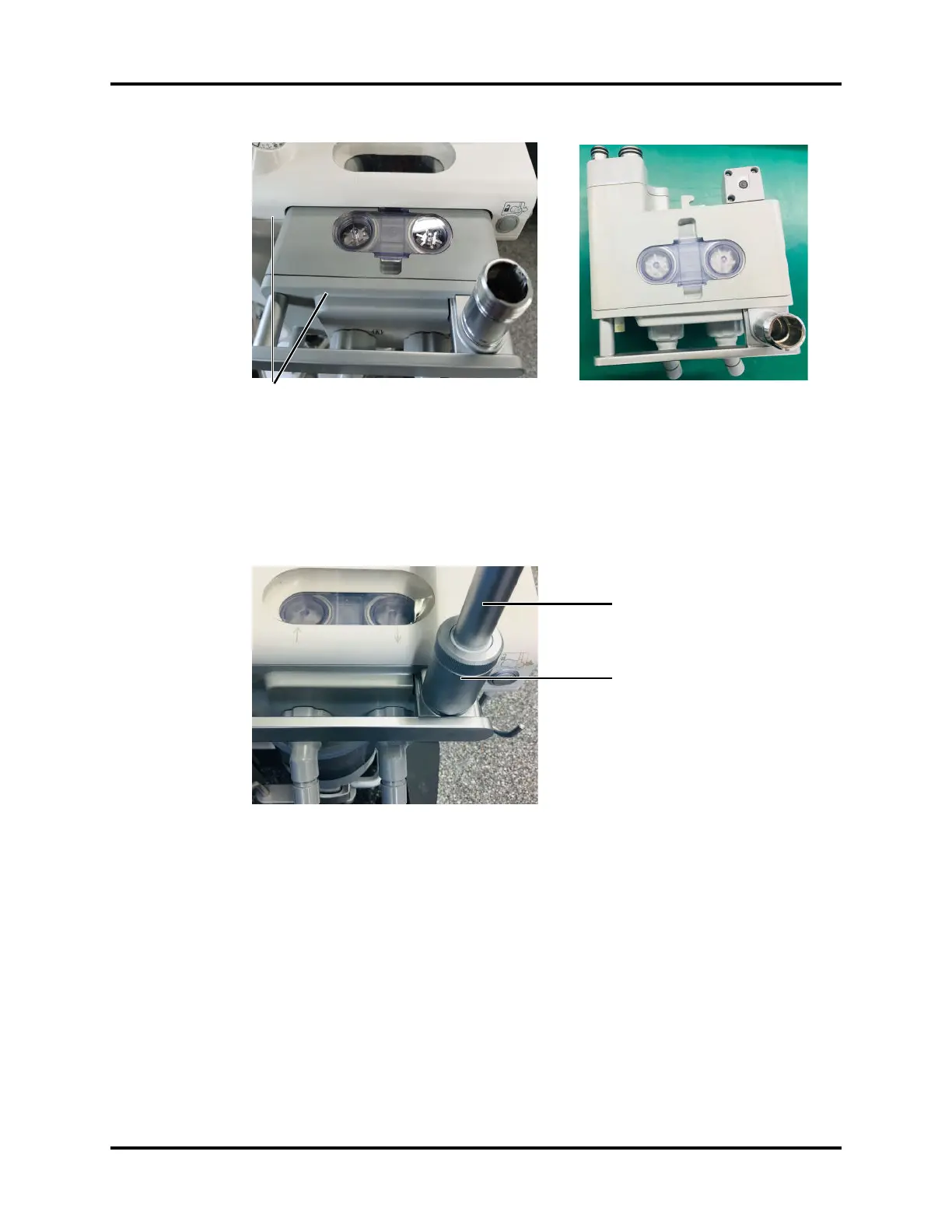

Figure 9-23 Install the breathing system body
9.7.3.4.4 Bag Arm
To install the bag arm, align it with the slot on the breathing system and screw the retaining ring clockwise
until it is tightened.
Figure 9-24 Install the bag arm
9.7.3.4.5 Flow Sensor
WARNING: Tighten the locking nut of the screw cap at the inspiration/expiration
connector when installing the flow sensor. Otherwise it may cause a
failure of the flow sensor.
WARNING: Exercise caution when moving the anesthesia system to avoid damage
to the flow sensor because of collision at the inspiration/expiration
connector.
WARNING: Keep the breathing tube end that is connected to the inspiration/
expiration connector heading downward. Otherwise the water formed
by condensed vapor may flow into the inspiration/expiration connector
and affect measurement of the flow sensor.
Make sure both of the surfaces are in the same
plane and hear a snap.
Retaining ring
Bag arm
