Mindray BC-3000 Plus - Page 228

Using the Calibration Programs
9-12
9.3.3 “Fresh Blood” Program
Press [MENU] to enter the system menu.

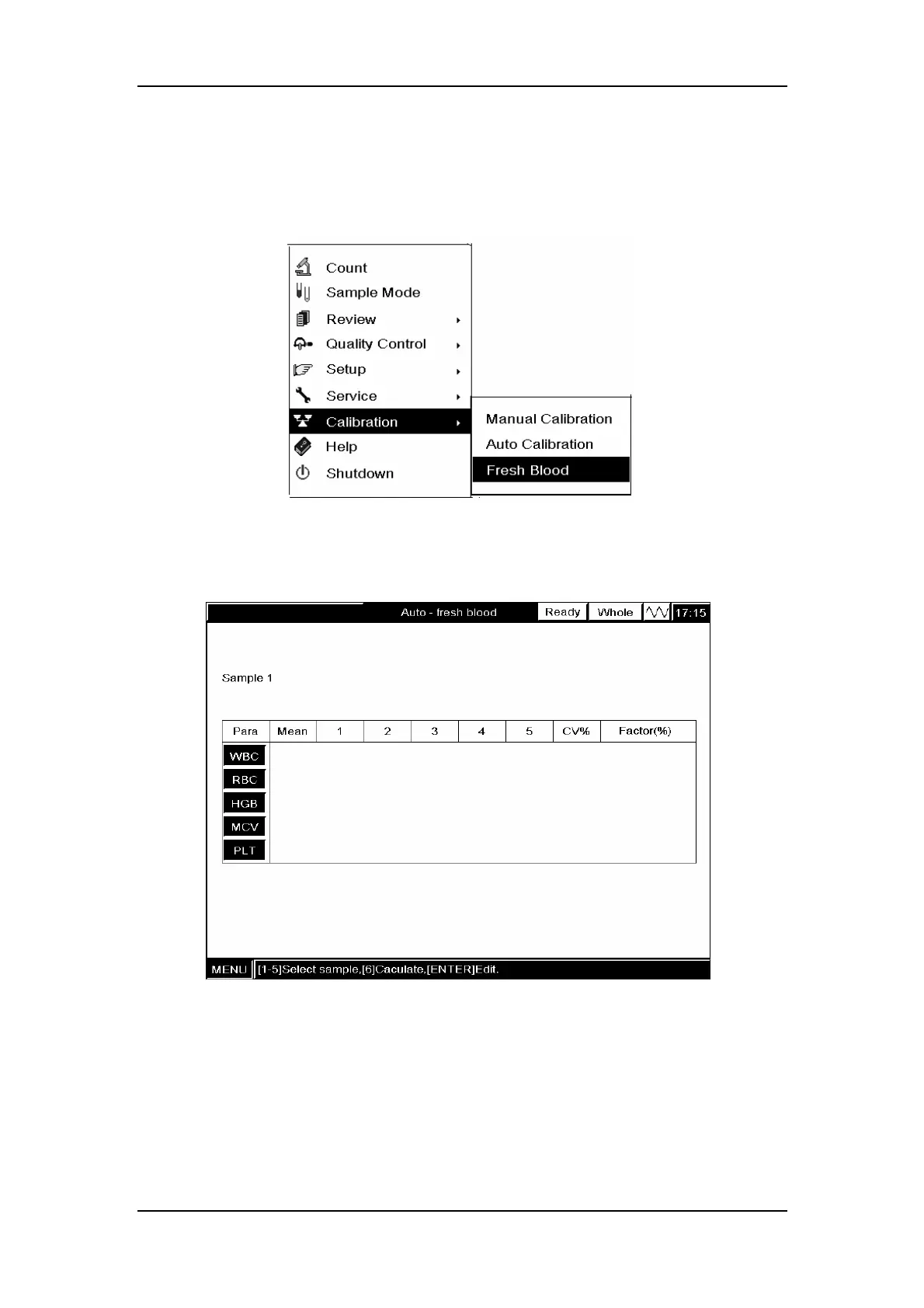

Figure 9-9 System menu
SELECT “Calibration →“Fresh Blood” (Figure 9-9) to enter the “Fresh Blood” screen
(Figure9-10).
Figure9-10 “Fresh Blood” screen
Complete the fresh blood calibration as instructed below:
Selecting count mode
Press [MENU] and SELECT “Mode” to enter the “Mode” screen. SELECT “Whole Blood” or
“Predilute”from the “Sample Mode” pull-down list.
