4. Connect the TOF-Watch SX interface to the TOF-Watch SX monitor.
5. Put a label indicating device name to the RJ45 connecting cable at the end near the BeneLink module.
When the BeneLink module is connected to several external devices, you can easily recognize the devices
with these labels.
6. Turn on both monitors.
NOTE
• For the ID adapter setup of the TOF-Watch SX monitor, see 9.4Connecting an External Device.
30.4 NMT Parameters
TOF-Watch SX monitor provides the following measurements:
■ TOF-Ratio
■ TOF-Count
■ PTC
■ Single
■ Tskin
30.5 NMT Display

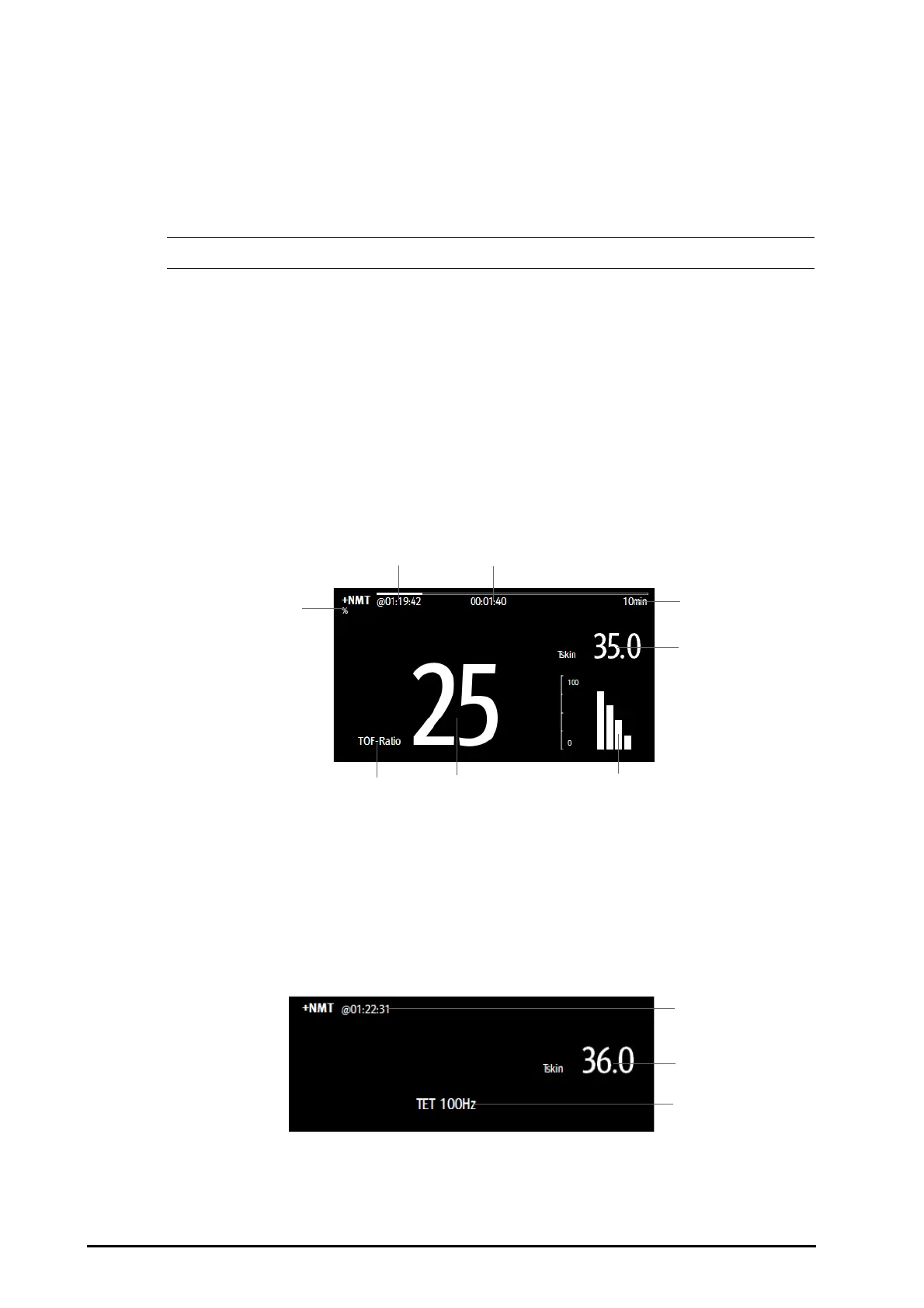

In the case that you take a measurement in TET50Hz mode, TET100Hz mode, DBS3.3 mode or DBS3.2 mode, only
mode label is displayed in the NMT numeric area, which is shown as follows:
(1) Parameter unit (2) Parameter label
(3) Parameter measurement (4) Response amplitude of stimulation
(5) Skin temperature (6) Measurement interval
(7) Measurement countdown (8) Time of last measurement
(9) Time of last measurement (10) Skin temperature (11) Measuring mode
(1)
(6)
(5)
(8)
(7)
(2) (3)
(4)
(11)
(9)
(10)
