9-8
S
tructu
re
a
nd
Assem
bly/Disa
sse
m
bly

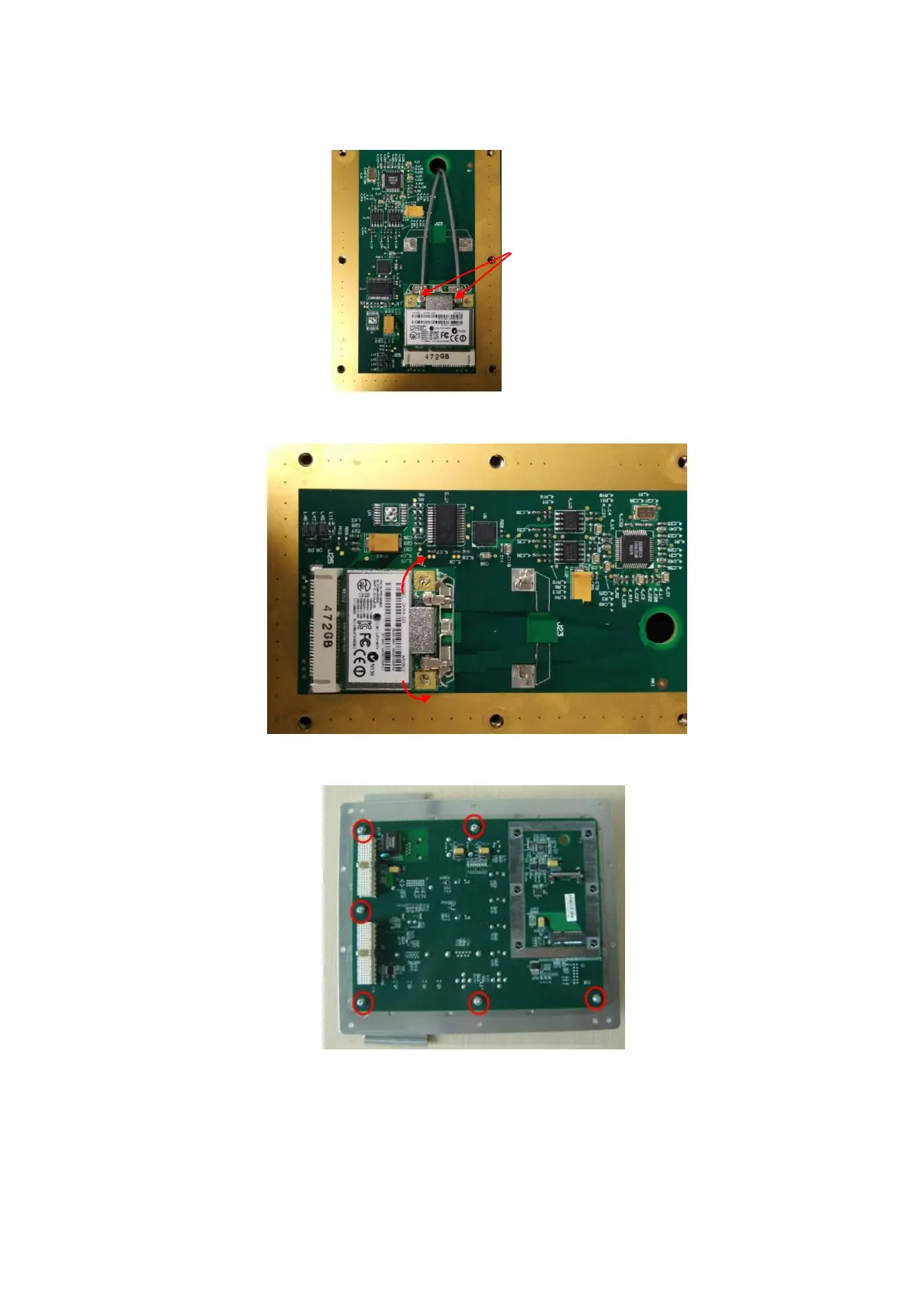

4.
R
e
m
ove the
W
IFI an
tenna in vertical direction
b
y
acting on
the
m
et
al plug.
5.
As shown in th
e figure, rele
ase
two elastic sh
eet
s fixing WIFI PCBA
to
re
m
o
v
e it.
6.
U
nscre
w
six
M3X8
screws fixing IO
board t
o re
m
o
ve IO BO
X board
.
135
