Mindray DC-8 - 9.3.6 PC Module Assembly

Structure and Assembly/Disassembly 9-11
9.3.6 PC Module Assembly
1． Refer to procedure 1 to 6 in 9.3.5.

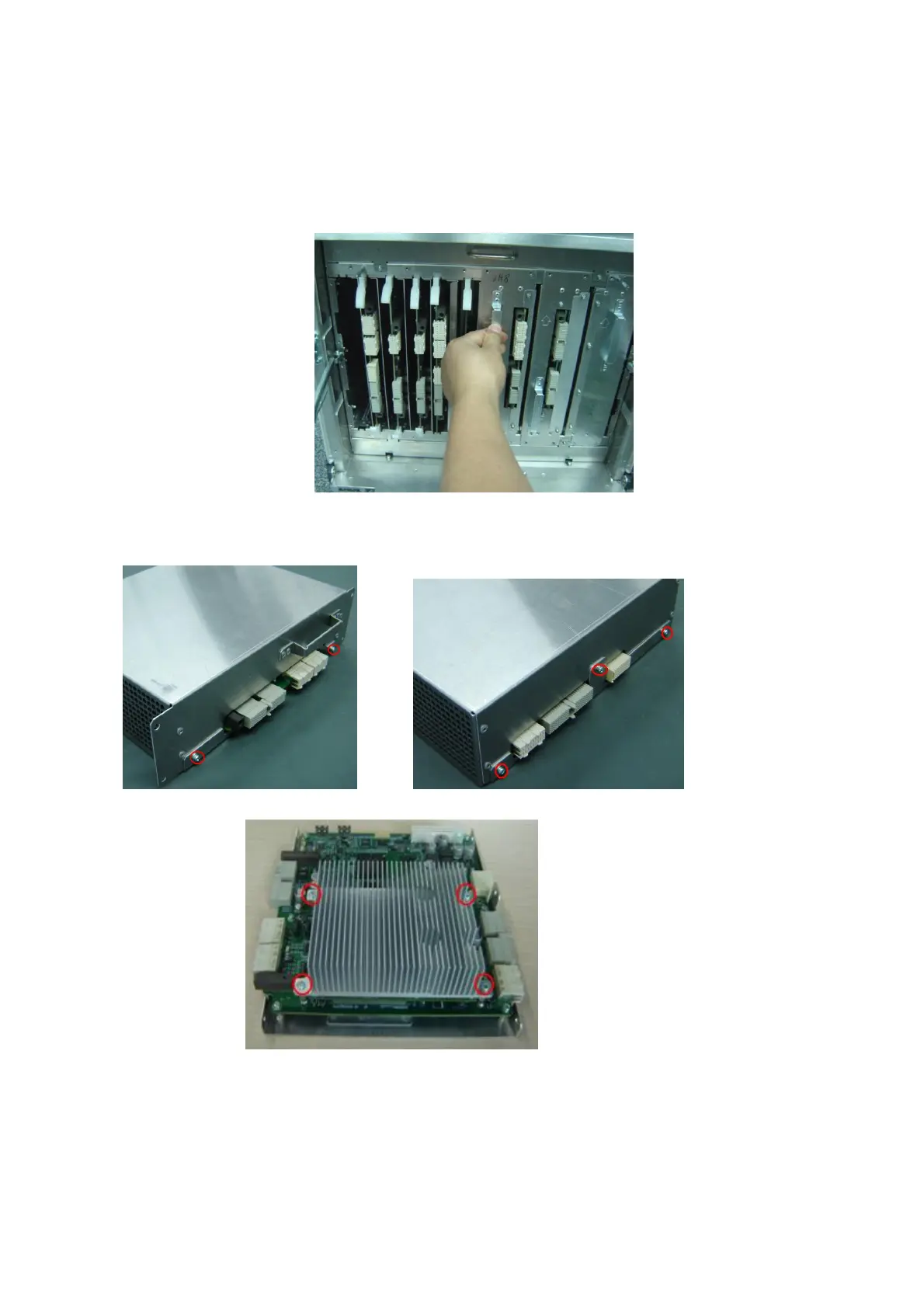

2． As shown in the figure, hold the metal handle and pull it outwards to remove the PC module
assembly.
9.3.6.1 Digital Board Assembly (XP)
1. Take the PC module assembly out and unscrew five M3X8 screws to open the top cover.
2. Remove the top cover and unscrew four M3X8 screws fixing CPU module to remove CPU module.
3. As shown in the figure, unscrew six M3X8 screws to remove the digital board assembly.
