9-12 Structure and Assembly/Disassembly

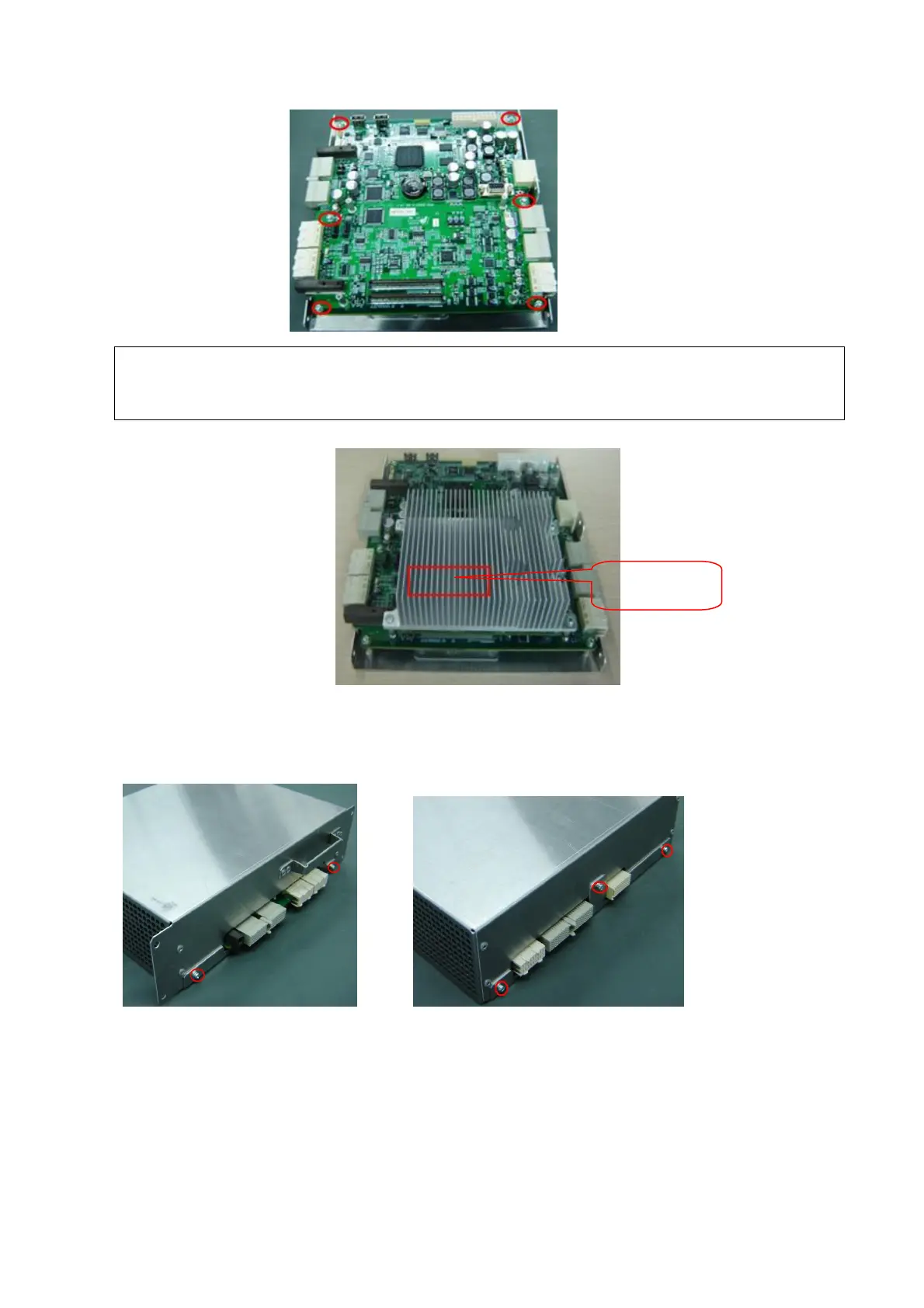

9.3.6.2 Digital Board Assembly and COME module assembly (Win7)
1. Take the PC module assembly out and unscrew five M3X8 screws to open the top cover.
2. Remove the top cover and unscrew four M3X8 screws fixing COME module (CPU board + radiator)
and then pull out the fan connecting cable to remove COME module.
When assembling, put CPU module on the digital board and move it gently to insert the
plug of CPU into the socket of the digital board. And then press the radiator moderately to
make the plug and socket connect with each other fully.
