9-16 Structure and Assembly/Disassembly

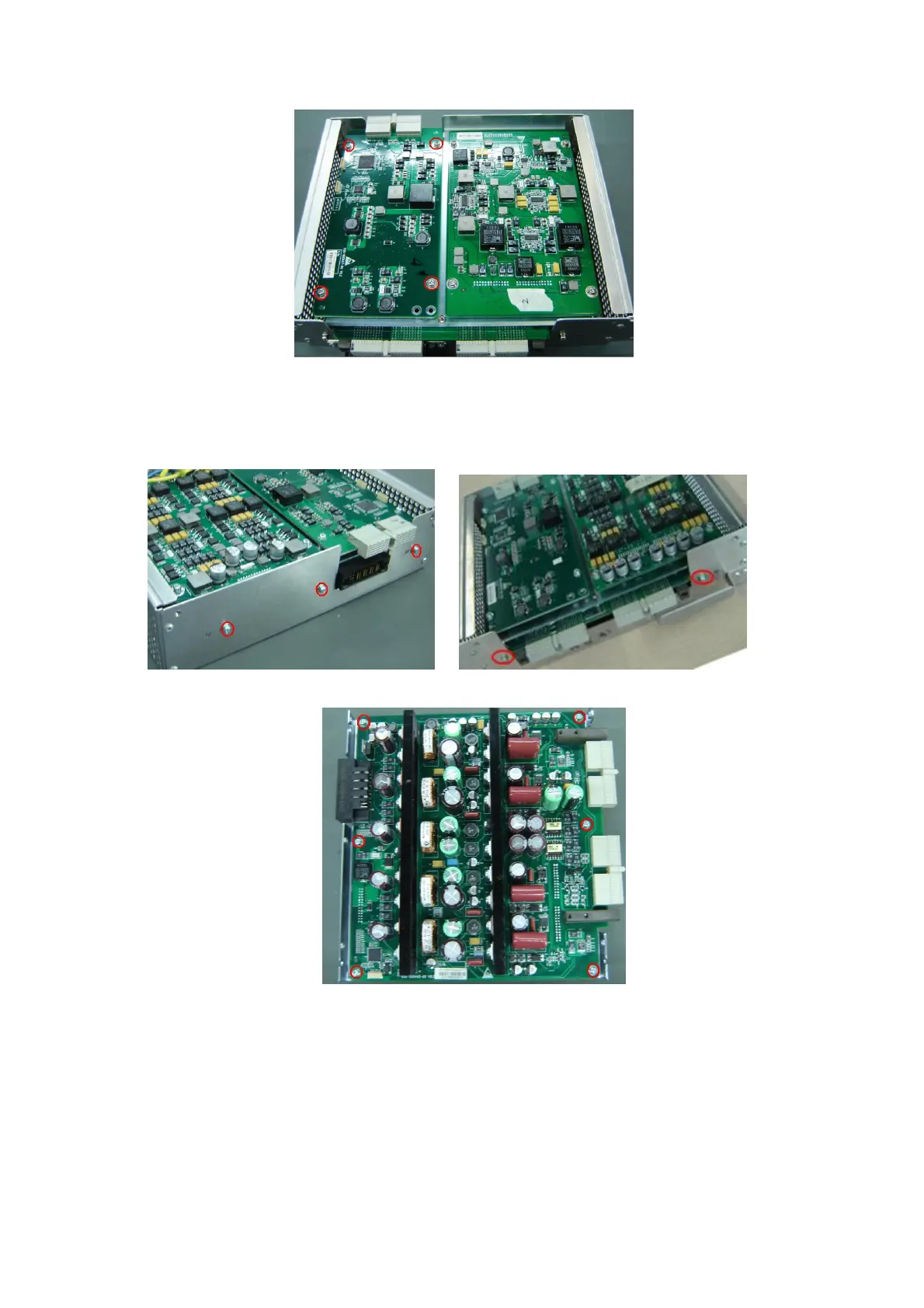

9.3.7.3 Front-end Power Main Board
1. Refer to procedure 1 in 9.3.7.1.
2. Unscrew five M3X8 screws to remove the front-end power board module.
3. Unscrew six M3X8 screws to remove the front-end power board from the separating board.
9.3.8 AC-DC Power Board
1. Refer to procedure 1 to 6 in 9.3.5.
2. As shown in the figure below, hold the metal handle and pull AC-DC power module outwards.
