Mindray DC-8 - Front-End Analog Mother Board

Product Principle 4-7
4.2.6 Front-end Analog Mother Board
PEN_RX/TX
CW_POUT[128:1]
Probe board
communication
and control
signal
Probe board
power supply
Probe board
Front-end
analog
motherboard
CW
board
Transmission
board A
Probe board power supply
TX1
TX64
4D drive and others
BTB
PEN_ID
Probe board communication
and control signal
BTB
BTB
POUT [96:33]
POUT [32:1]
POUT [128:97]
POUT[128:1]
PEN_ID
PEN_RX/TX
4D drive and
others
WTB
CW_POUT[128:1]
POUT[128:1]
Transmission
board B
TX1
TX64
Receiving
board
To 4D or
4D&TEE
board

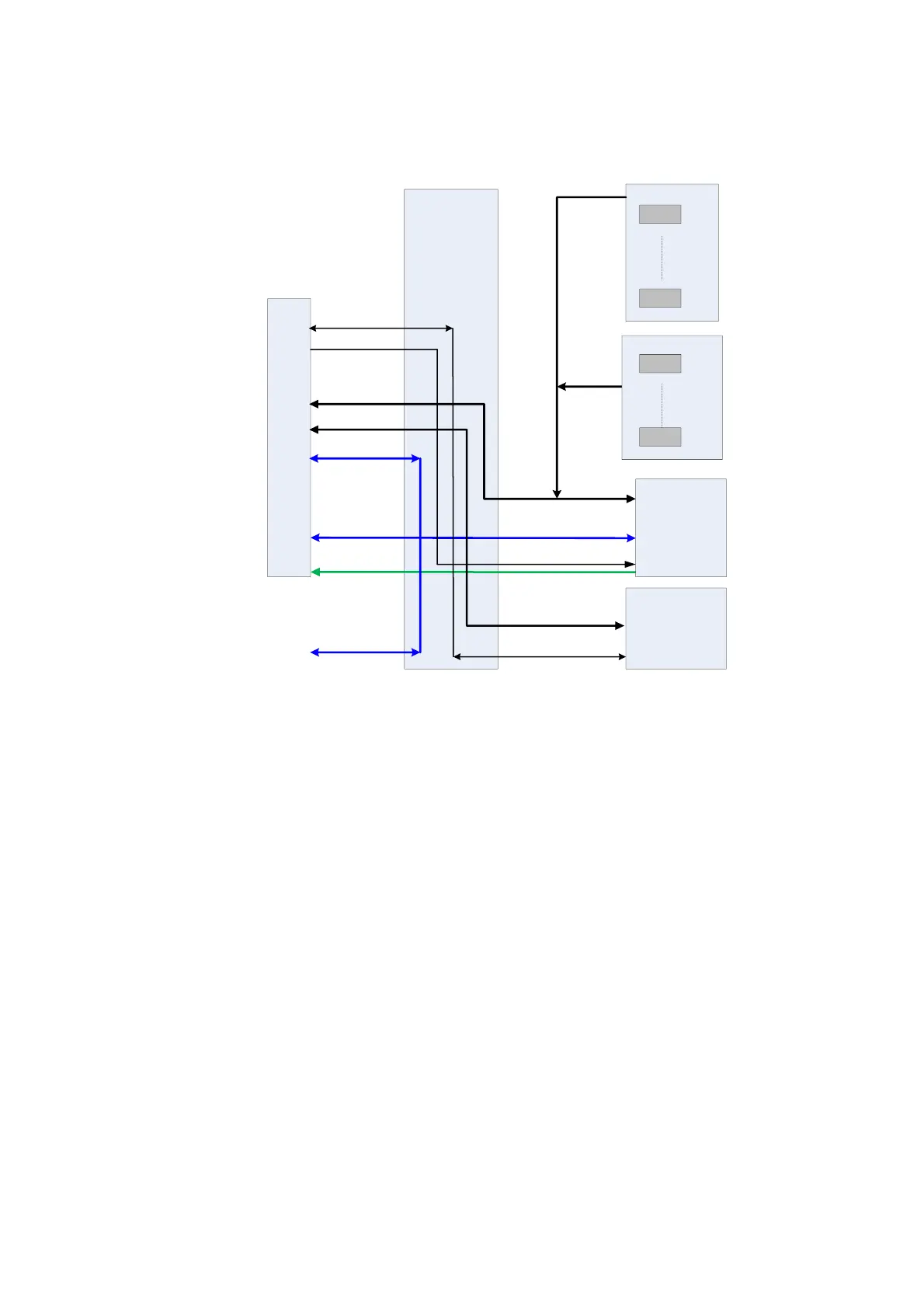

Fig 4-9 Schematic Diagram of Front-end Analog Mother Board
Function description:
 Signal transmission between probe board and other front-end boards.
 Analog signal transmission of front-end boards.
