Structure and Assembly/Disassembly 9-35
MIC connection cable left speaker cable right speaker cable

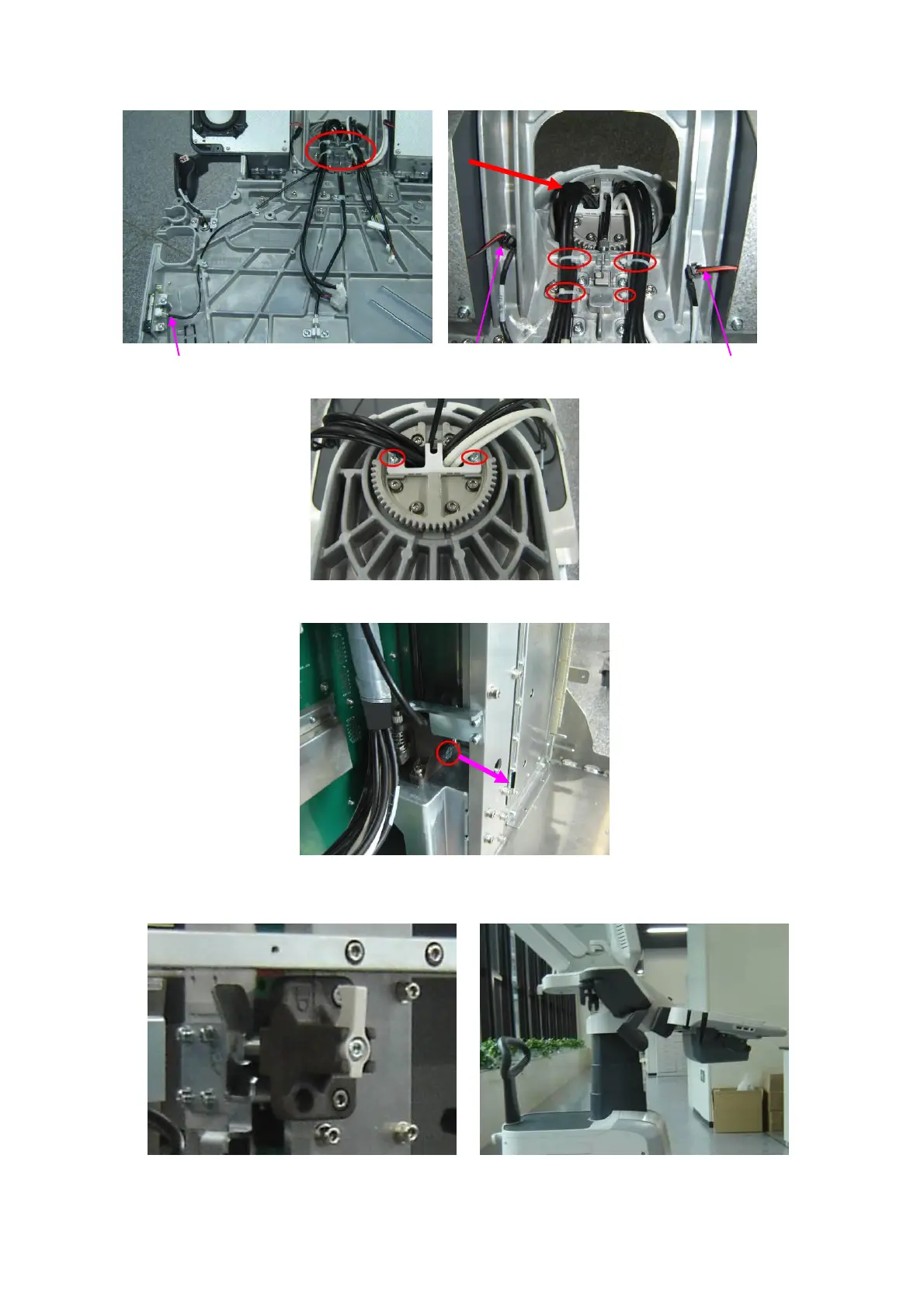

4. Remove Philips panhead screw M4X12 (2 pcs), and take out cable separation block.
5. Remove the lower bolt of gas spring from gas spring guide holder.
6. Drag out the locking handle and turn anticlockwise to the locking position of vertical up, and
then turn the controlling handle and lift the upper main body until a click is heard; at this time,
the upper main body is locked and it cannot go up or down.
To Next Page
