9-38 Structure and Assembly/Disassembly

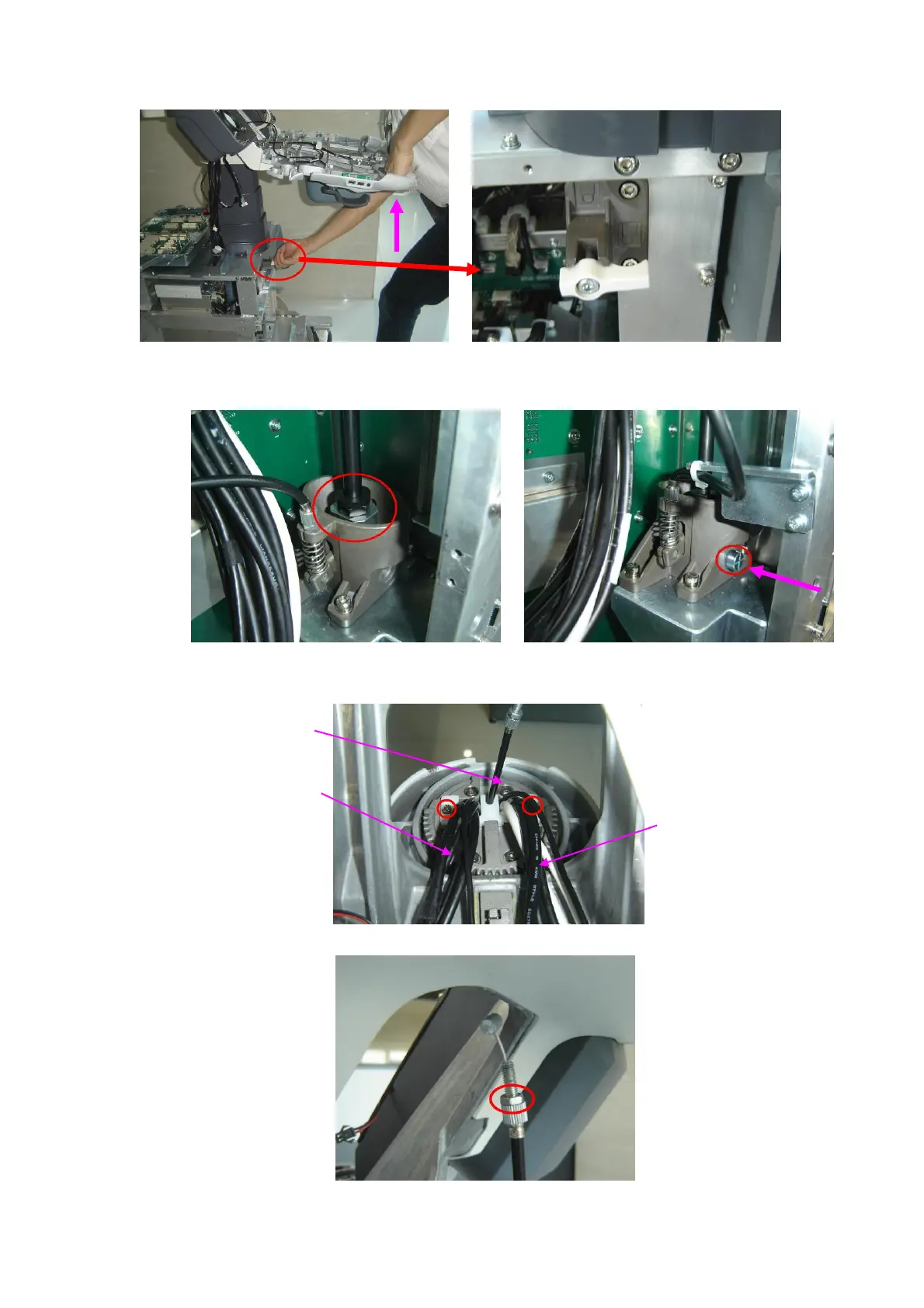

5. Check and confirm that the gas spring lower connecting link is put into the gas spring guide
holder, and use the removed gas spring lower bolt to fix the gas spring lower connecting link
and guide holder.
6. Tidy all cables and lines in corresponding hole of cable separation block as per the following
picture, use Philips panhead M4X12 (2pcs) screw to fix the block.
7. Rotate the hexagon screw of the lifting line to affix to the bolt end but not that tight.
