Mindray DC-8

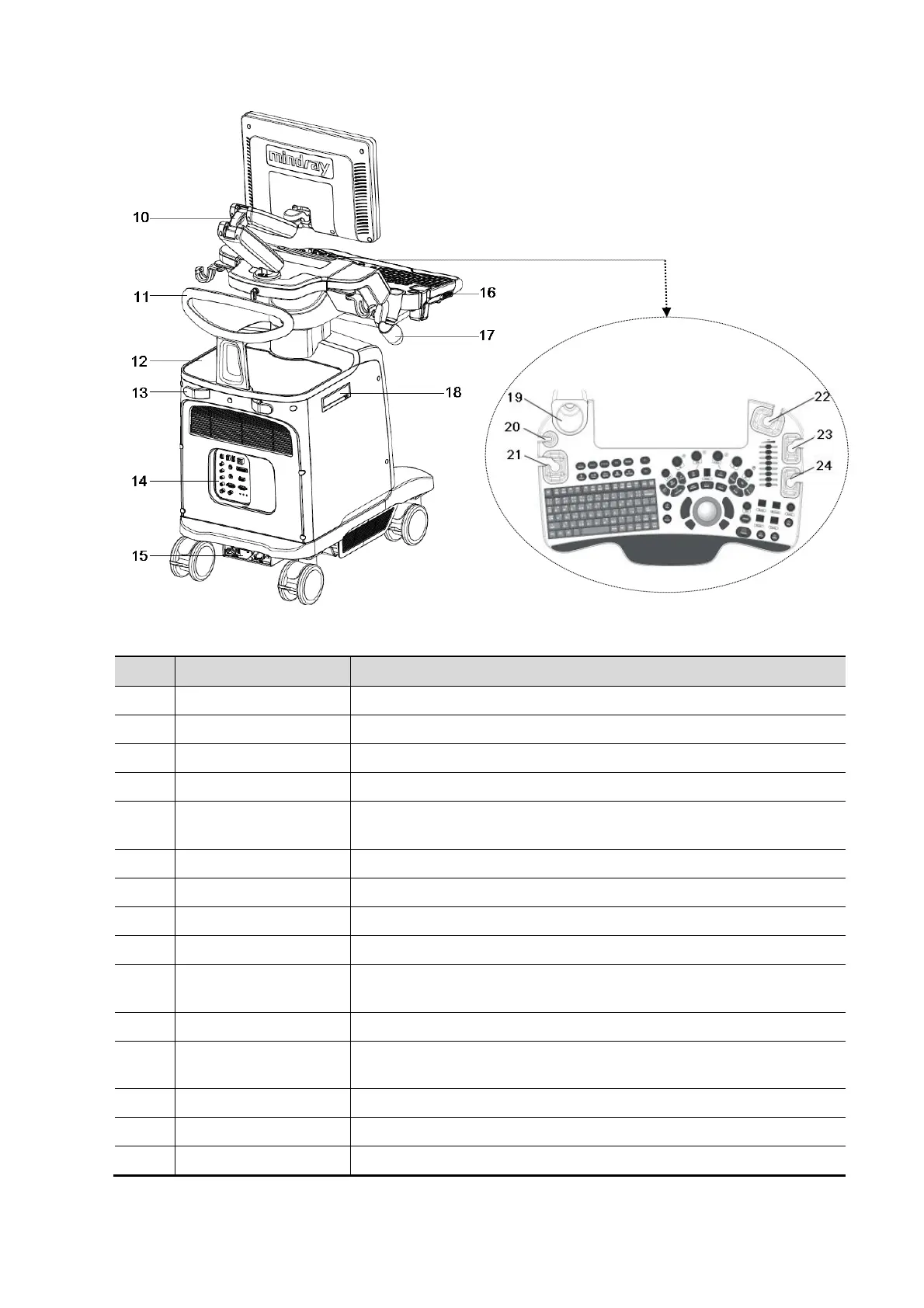

2-2 Specifications
No.
Name
Function
1.
Monitor
Displays the images and parameters during scanning.
2.
Touch screen panel
Operator-system interface or control.
3.
Main control panel
Operator-system interface or control.
4.
Storage compartment
Used for placing small objects.
5.
Physio panel
Used for connecting the ECG leads, PCG transducer, footswitch,
external ECG device and PCG signal etc.
6.
Probe port
Sockets connecting transducers and the main unit.
7.
Caster
Used for securing or moving the system
8.
Probe cable hook
Used for fixing the probe cable.
9.
Compartment
Used for placing B/W video printer.
10.
Monitor support arm
Supports the monitor, for adjusting the height and position of the
monitor.
11.
Rear handle
Used for pushing and moving the system.
12.
Color video printer
placing table
Used for placing the color video printer
13.
Hanger
/
14.
I/O Panel
Interface panel used for inputting and outputting signals.
15.
Power supply panel
Electrical port panel.
