System Diagnosis and Support 11-15
When the temperature exceeds the working temperature, the temperature will be displayed in red,
the temperature range is set by the system configuration, for details, please refer to
C:\DC8\exe\main \SystemConfiguration.ini on the system.
7. Test information
When the tests are finished, the results will be displayed. For the tests, the passed items will be
marked with PASS in green, and the failed items will be marked with FAIL in red; and if the items
are not selected, they will be marked with Skip in gray. See the figure below:

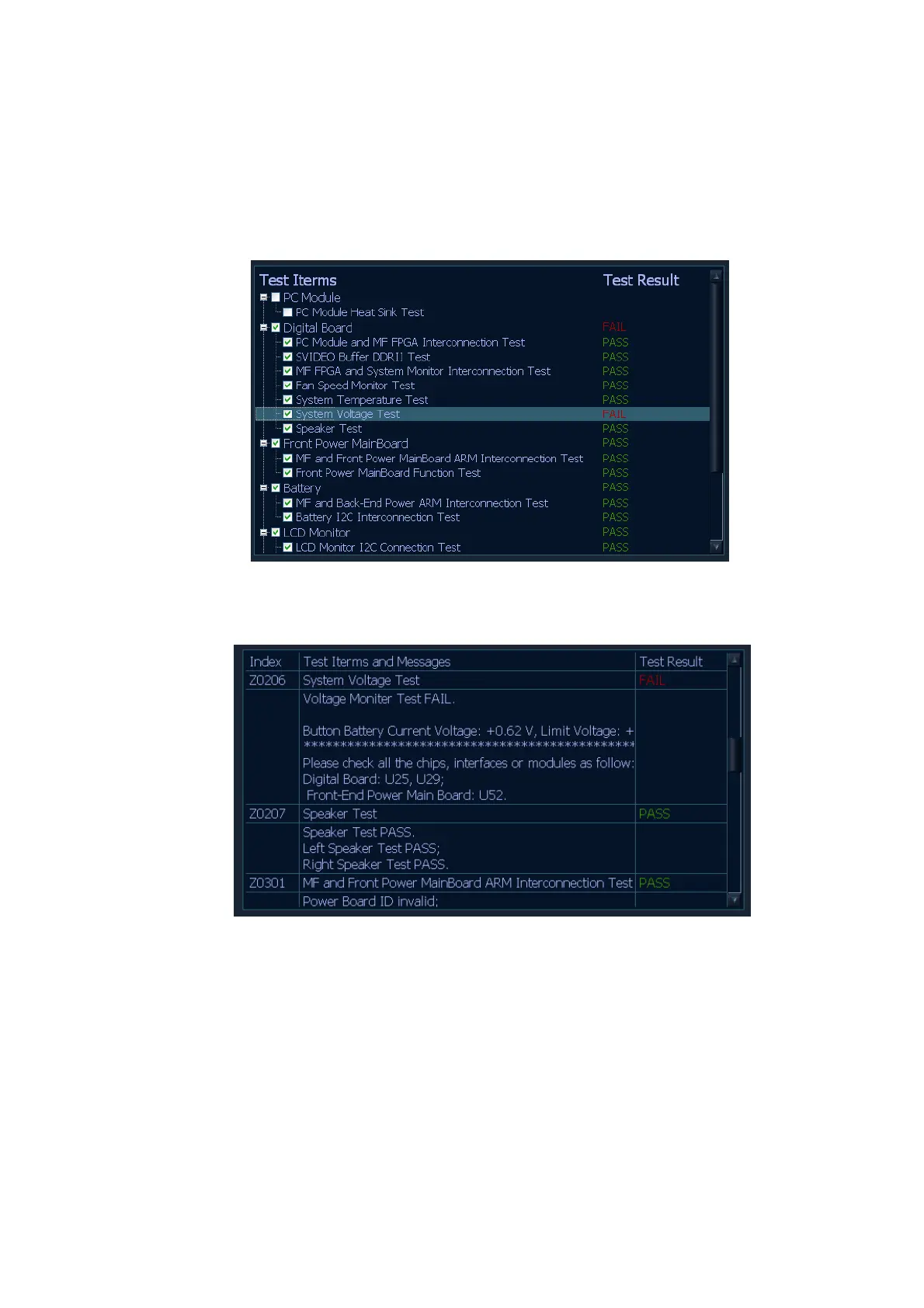

Figure 11-4 Test items in the table
Click the test items in Test items, the system will show the details of the test results. See the figure
below:
Figure 11-5 Test results in Messages
The test items will be automatically indexed, the format is ZXXYY，they are begin with Z, XX is the
sequence number in the first level of the item. YY is the sequence number in the second level of
the item. E.g., System Voltage Test, the index number is Z0206, 02 means the second test item in
the first level for Digital Board, 06 means the sixth test item in Digital Board for System Voltage
Test.
8. When the self-test is finished, the test results will be displayed as follows (this interface only
used for displaying the test results, only available to the production person and service
engineer).
To Next Page
