Mindray DC-8 Service Manual

Specifications 2-9

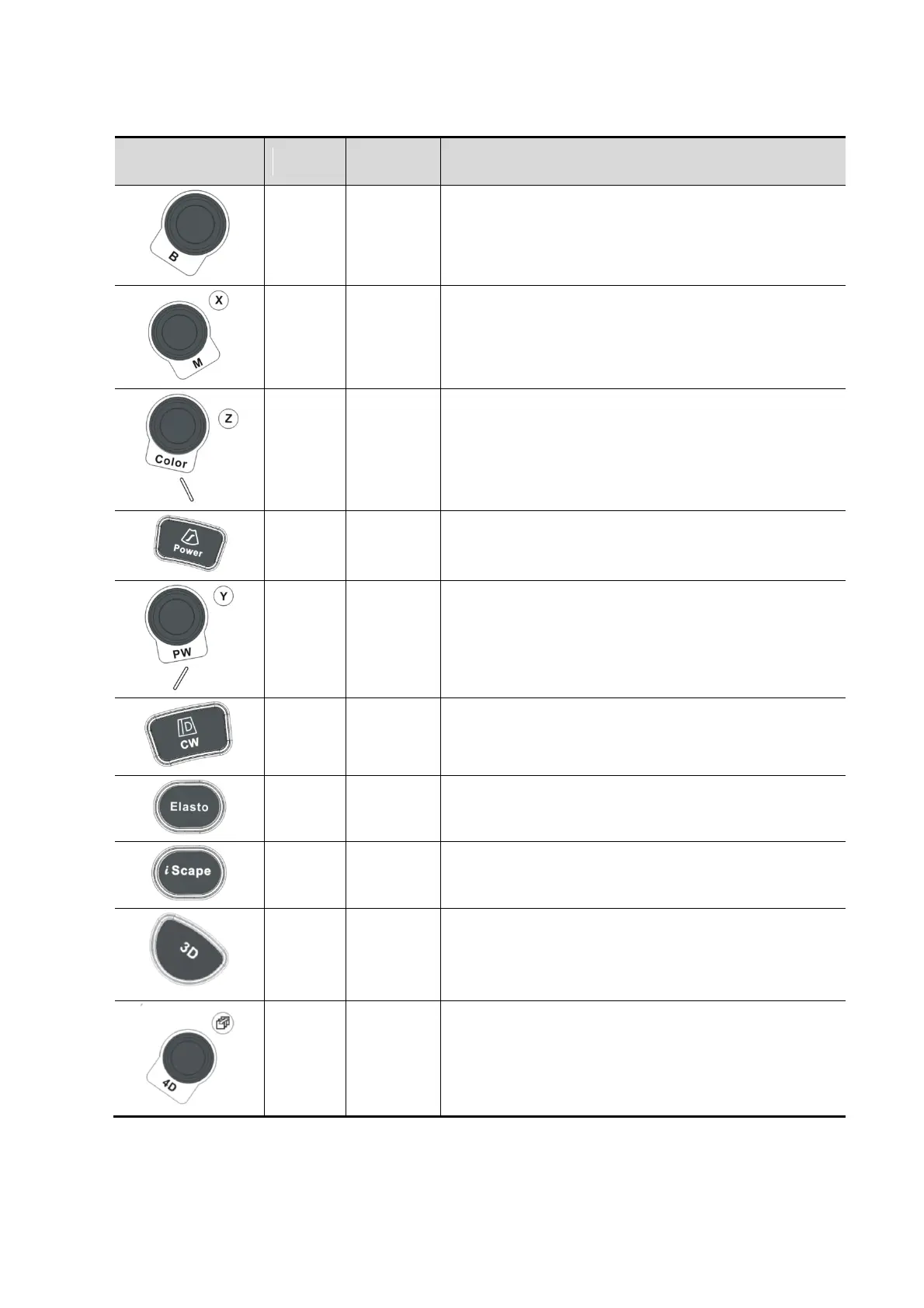

Image operations
Symbol
Name
Control
Type
Function
/
Pressable
knobs
Press to enter B mode; Rotate to adjust B mode gain.
/
Pressable
knobs
Press to enter M mode, and rotate to adjust M gain;
while in 3D/4D mode, rotate the knob to make the 3D
image to rotates around X axis.
/
Pressable
knobs
Press to enter Color mode, and rotate to adjust Color
or Power gain; while in 3D/4D mode, rotate the knob
to make the 3D image to rotate around Z axis.
/
Key
Enter Power mode.
/
Pressable
knobs
Press to enter PW mode, and rotate to adjust PW or
CW gain; while in 3D/4D mode, rotate the knob to
make the 3D image to rotate around Y axis.
/
Key
Enter CW mode.
/
Key
Enter elastography.
/
Key
Enter iScape.
/
Key
Enter 3D imaging function: Smart 3D or Static 3D.
/
Pressable
knobs
Press to enter 4D function; rotate to make the 3D
image rotation.
