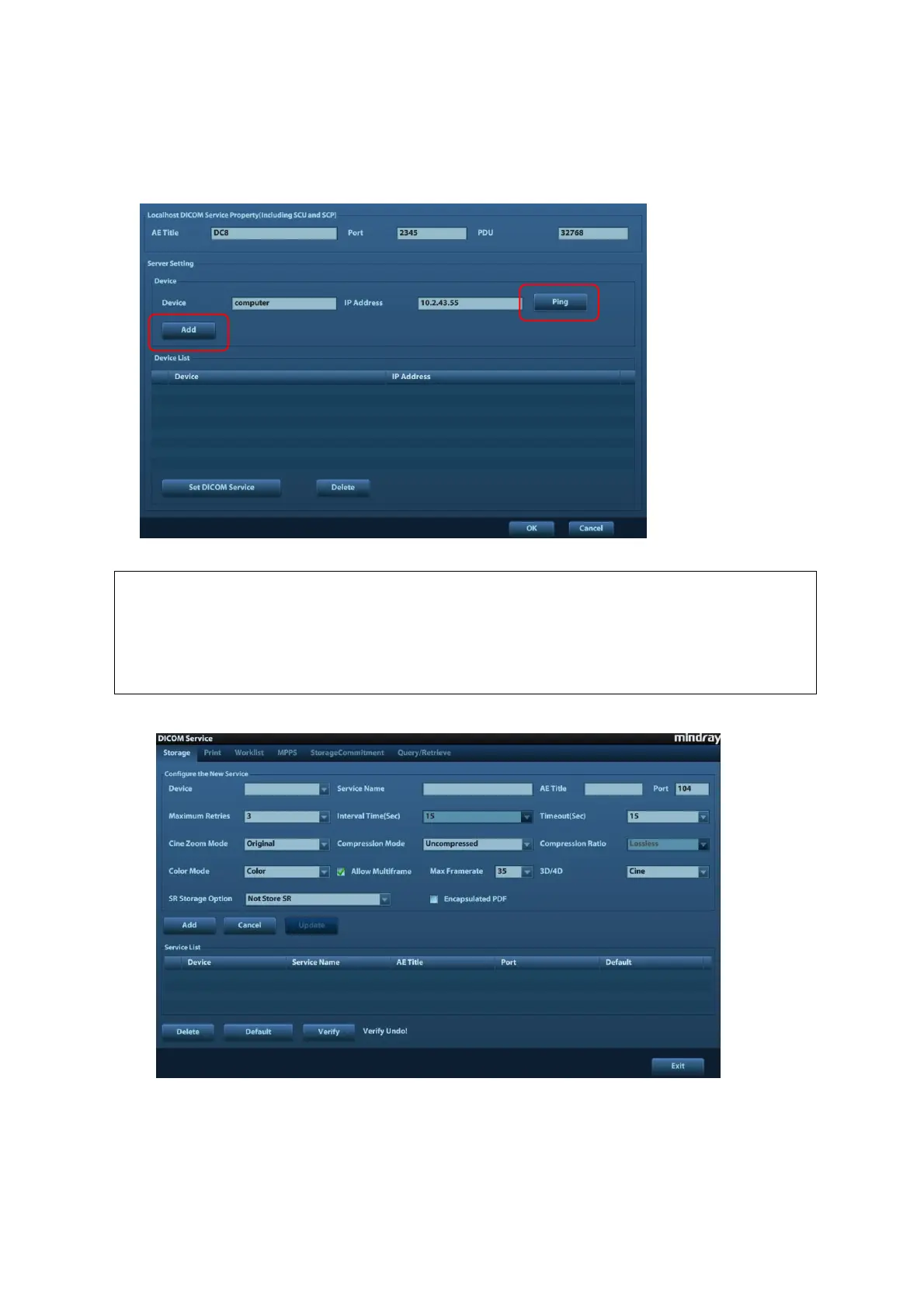

3-18 System Installation
clicking [Ping].
3) Click [Add] to add the server to the list if the connection works normally.
The following is an example:
AE Title should be the same with the SCU AE Title preset in the server
(PACS/RIS/HIS).
DICOM communication port should be the same with the one in the server.
If the currently entered name has already existed, the system will pop up:
“The server name exists!” Click [OK] to enter another name.
3. Click [DICOM Service].
When the system is configured with DICOM basic function module, and installed DICOM
Worklist, MPPS, DICOM Structured Reporting and Query/ Retrieve modules, the corresponding
preset settings can be found in DICOM Service screen.
