b. Separate the residual part of the needle-guide bracket and the probe from the needle.
4. Remove the needle-guided bracket:
Remove the support of needle-guided bracket from the probe.
NGB-010 Metal-needle detachable needle-guided bracket
Perform the following procedure:
1. Install the needle-guided bracket:
a. Put on the sterile probe sheath.

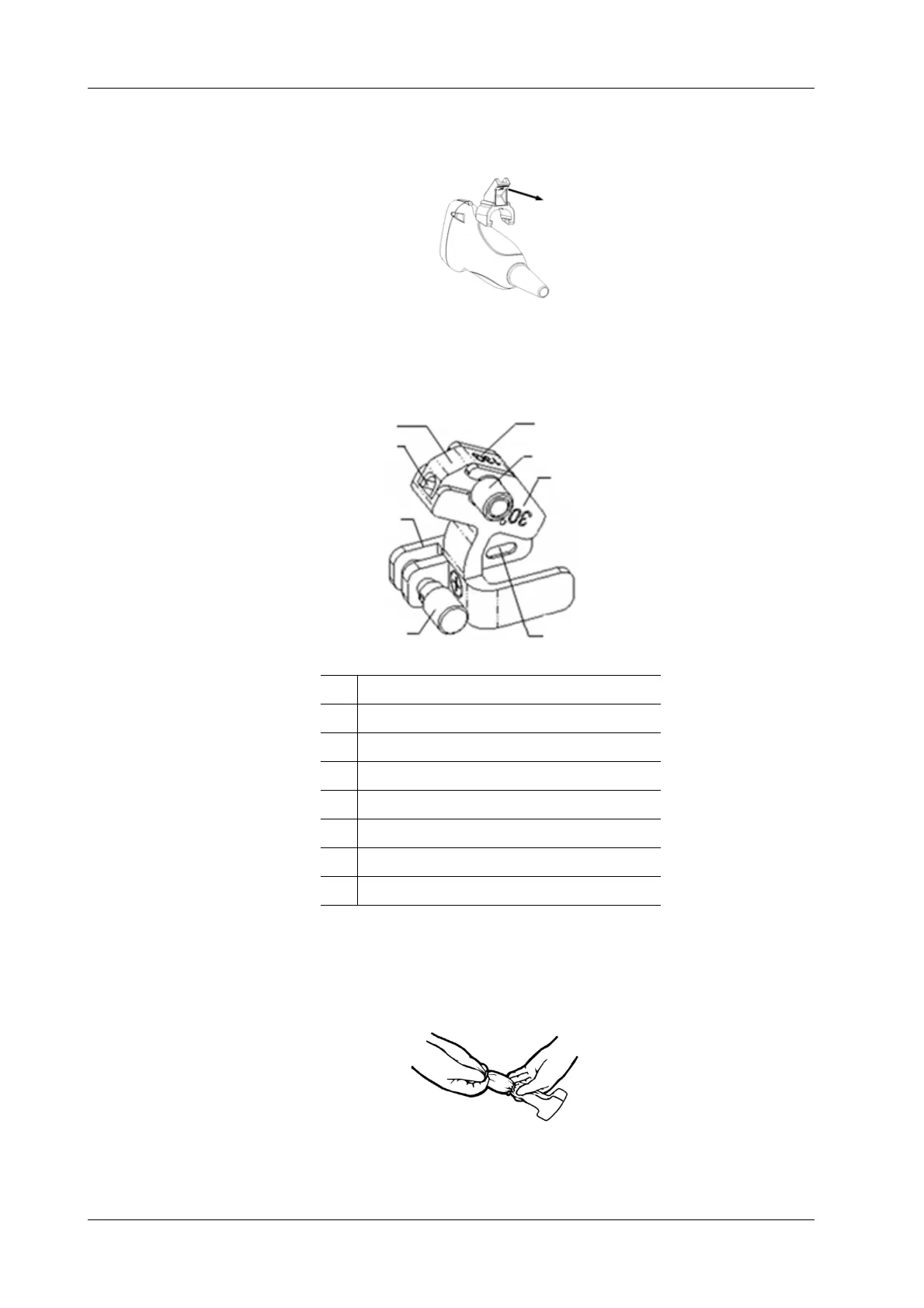

1 Guiding block
2 Guiding hole of the biopsy needle
3 Support of needle-guided bracket
4 Knob of fixing needle-guided bracket
5 Grooves of the needle-guided bracket
6 Needle guide angle
7 Knob of fixing the guiding block
8 Specification of guiding block
