B Wireless Charging
Operator’s Manual B - 3

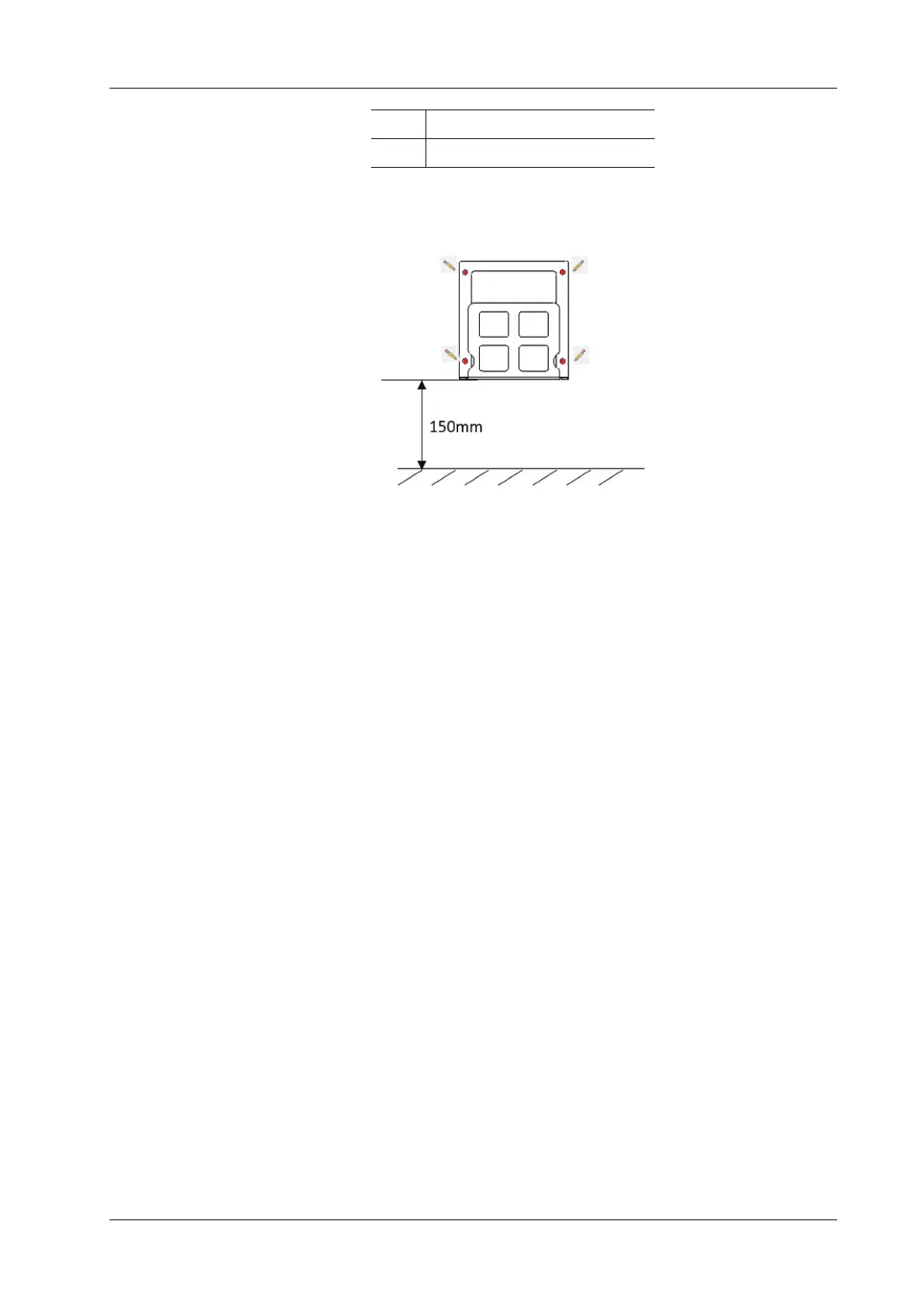

2. Install the pad 120 ~150 mm above the ground and make marks on the wall at positions
corresponding to the four via-holes of the pad.
3. Use a percussion drill to drill holes in 6 mm diameter and 30 mm depth at the marked positions
on the wall.
4. Use a hammer to hit the expansion rubber stopper into the hole on the wall.
5. Install the pad to the wall through four tapping screws.
Installation Using the Steel Screw
Perform the following procedure:
1. Use 4 self-prepared steel screws (the length of the steel screws must be at least 10 mm larger
than the height of the pad), and punch holes in the four corners of the pad. (The diameter of the
hole is larger than that of the steel screw.)
2. Use steel screws to fix the pad to the wall.
B.1.3 Installing the Air Station
Ground Installation Method
Ground installation includes ground installation by quick-disassembly and ground installation with
guide plate. Perform the following procedure:
1. Assemble the Air Station.
a. Place the base face down.
b. Insert the transmitting module into the base.
bWall
c Tapping screw
