B - 2 Operator’s Manual
B Wireless Charging
• A pad is required in two ways: using expansion rubber stopper or steel screw.
• Dimensions of the pad: Length >300 mm, width >300 mm, and height greater than d (skirting
line distance)
• Material: Plastic or wood is recommended

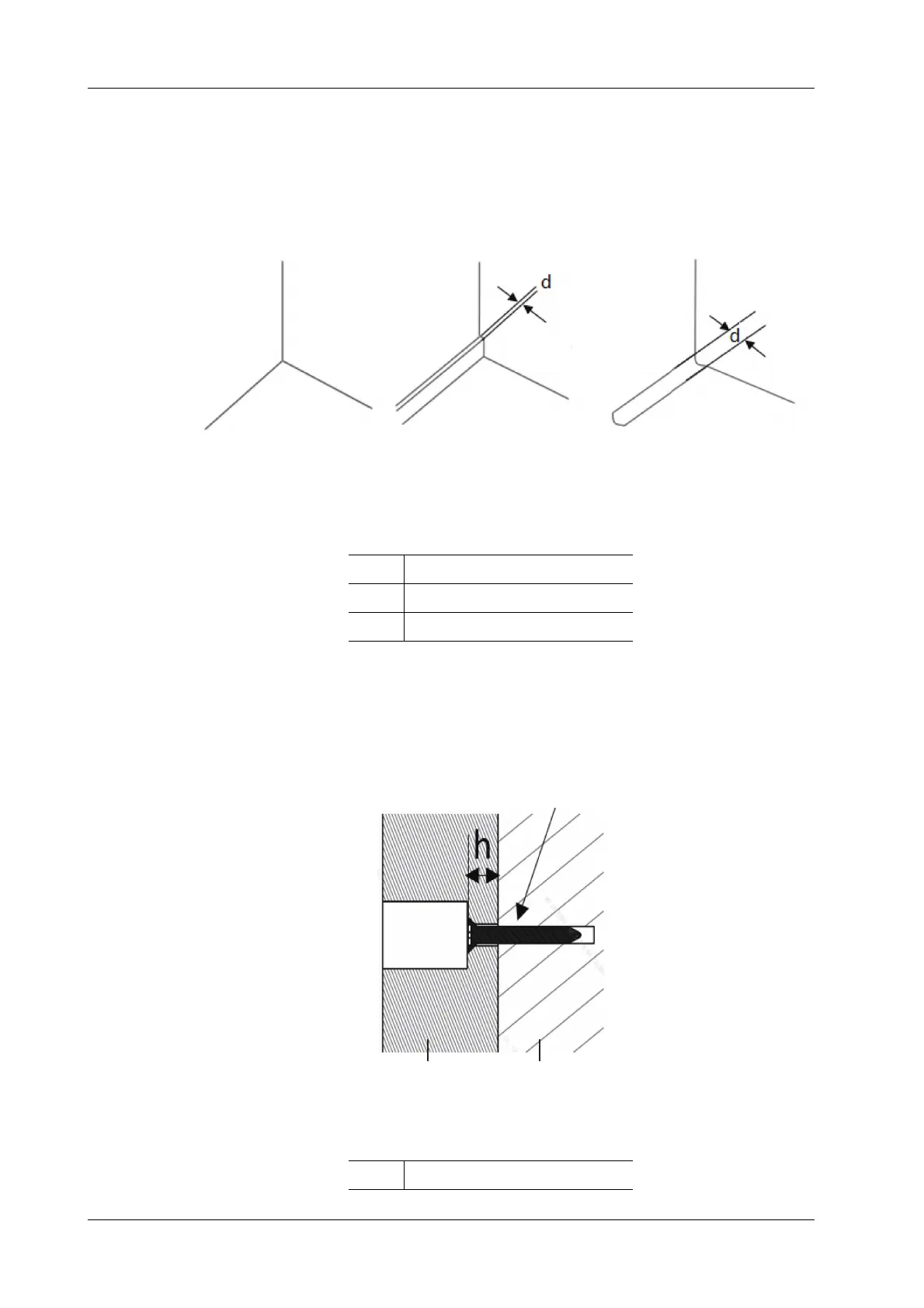

Figure B-1 Wall Type
Installation Using the Expansion Rubber Stopper
Perform the following procedure:
1. Process via holes and sinking platforms at the four corners of the pad. (The via-hole diameter
is 5 mm, and the diameter of the sinking platform is greater than 15 mm. As shown in the
following figure: h>5 mm).
a No skirting wall
b Step skirting wall
c Arc skirting wall
aPad
