Mindray Eagus TEX21 - ECG Module

2 - 14 Operator’s Manual
2 System Overview
2.8 ECG Module

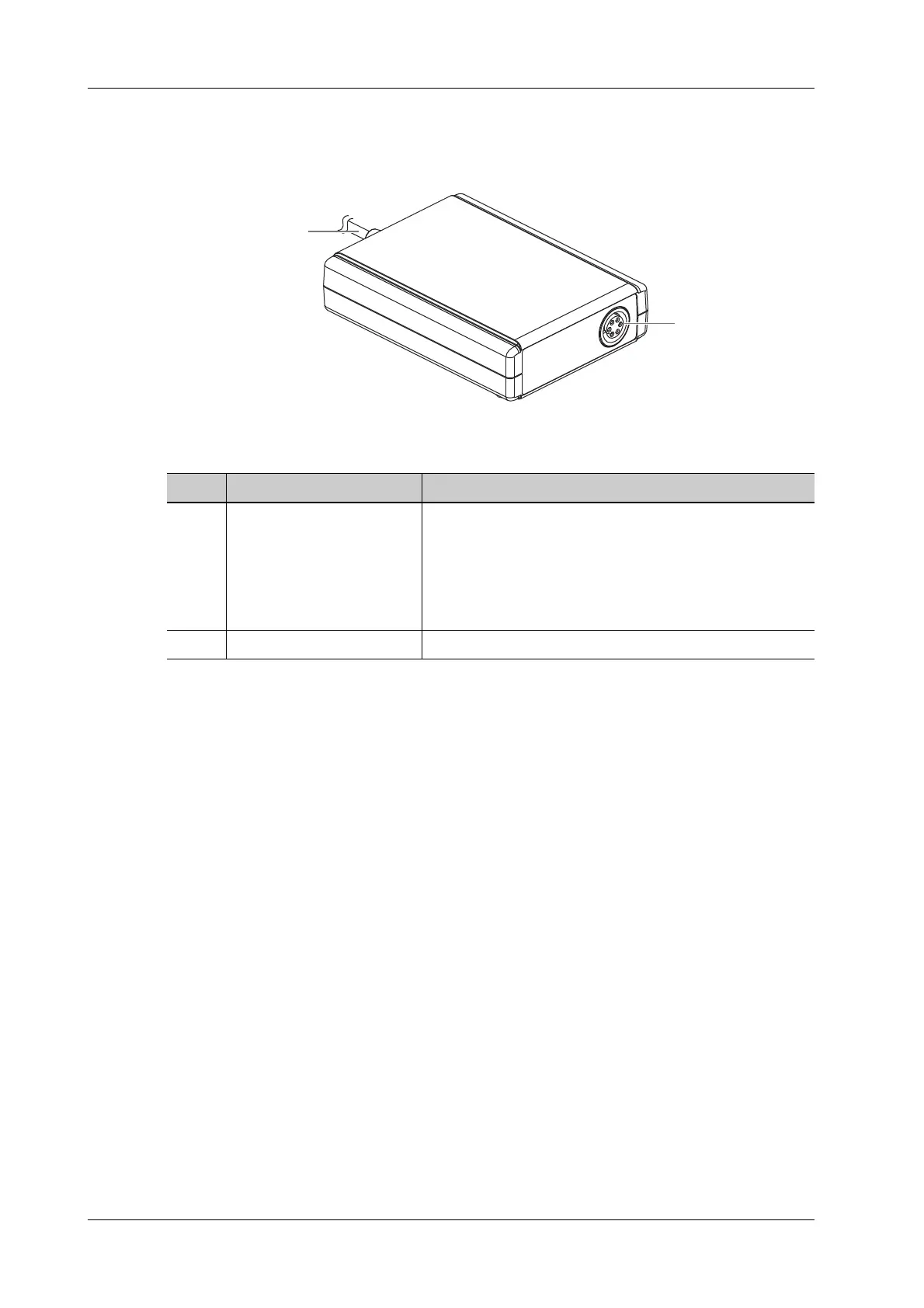

Figure 2-5 ECG module
No. Name Description
1. Serial connector
Connects to the serial port for connecting to ECG of the
system.
NOTE:
Ensure the system is powered off before connecting the
ECG module.
2. ECG lead port Used for ECG signal input.
1
2
