13 Probes and Biopsy
Operator’s Manual 13 - 41

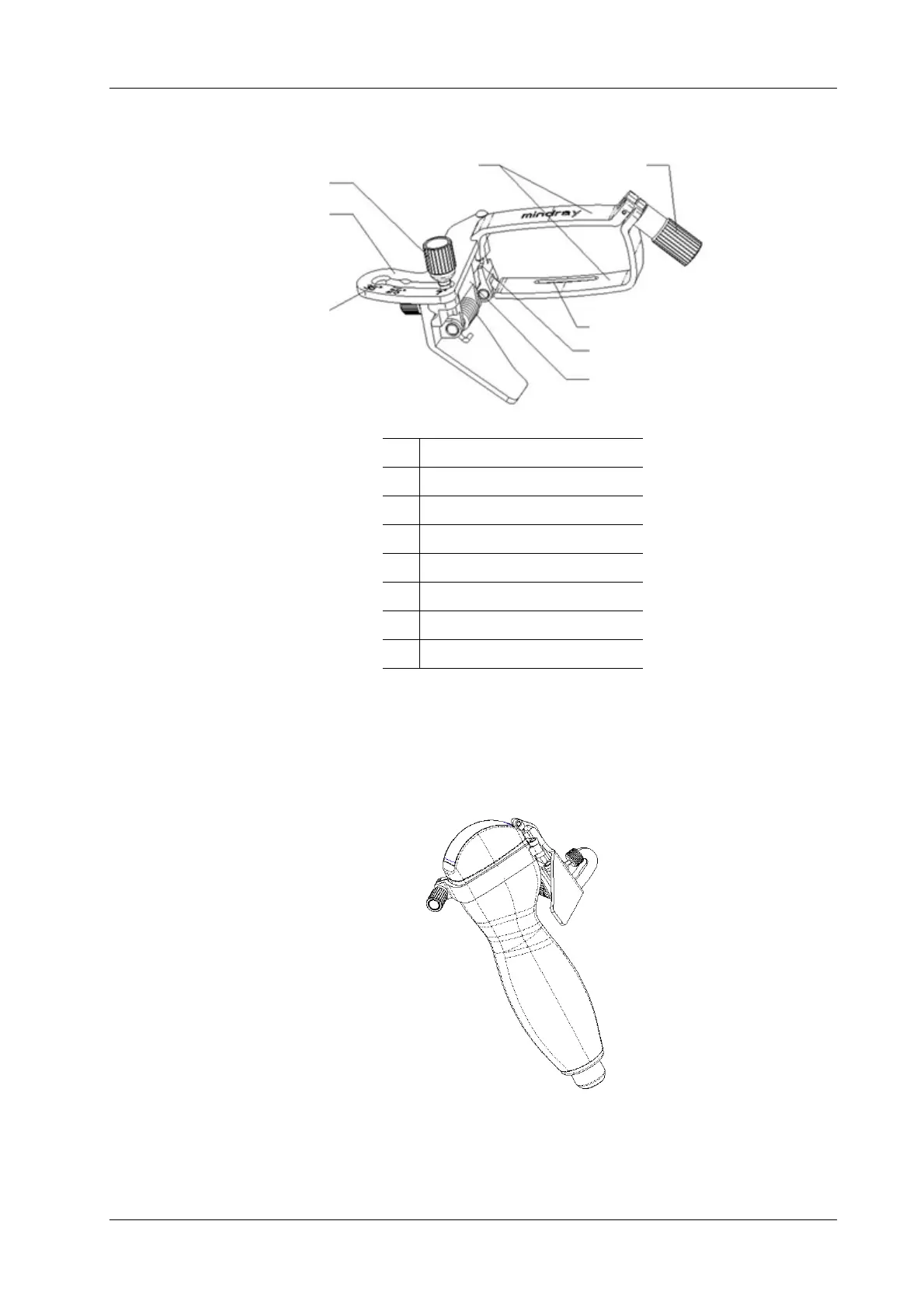

NGB-036 Metal-needle detachable needle-guided bracket
Perform the following procedure:
1. Install the needle-guided bracket:
a. Put on the sterile probe sheath.
b. Select the needle-guided bracket, and match the groove with the tab of the probe. Mount
the bracket onto the probe.
c. Rotate the retaining nut to fix the bracket and the probe.
1 Angle locking nut
2 Angle adjusting block
3Angle marker
4 Angle adjusting base
5Groove
6Slot
7 Right, left retaining nut
8 Right, left clamp
1
2
3
4
5
6
78
