Mindray MX7 User Manual

2 - 16 Operator’s Manual

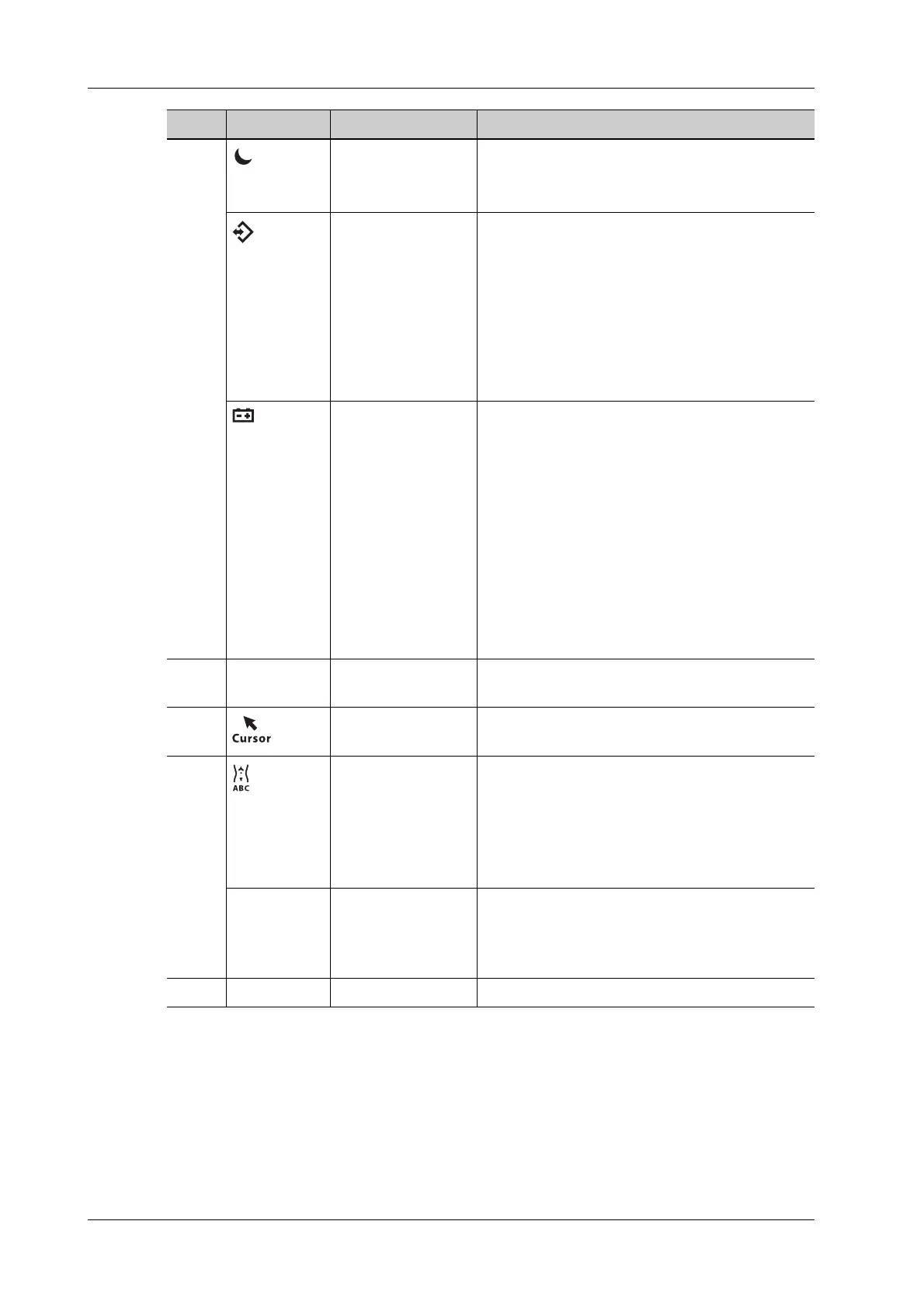

2 System Overview
20. Standby status
indicator
Standby indicator.
Standby: blinking in orange.
Other status: light off.
Hard disk read
indicator
Hard disk status indicator.
The indicator blinks in green when hard disk is
running.
The indicator is off on the other status.
NOTE:
DO NOT move the machine when the
indicator blinking in green. Otherwise the hard
disk may be damaged by sudden shake.
Battery indicator Battery status indicator.
• Charging status:
It illuminates in orange when batteries are
charging;
It illuminates in green when batteries are
charged fully.
• Discharging status:
It illuminates in green color when the power of
the batteries is sufficient;
It illuminates in orange color for low battery
power.
21. Clear Clear button Press to clear off the comments or measurement
calipers on the screen.
22. Cursor button Press to show/hide the cursor.
23.
/Angle/
Multi-
functional
knob
Body mark/
Comment/Angle/
Multi-functional
knob
• Press to enter/ exit the body mark/textual
comment mode.
• Rotate to adjust probe marker orientation of
body mark.
• Rotate to adjust image parameters or direction
of comment arrows.
Angle/Multi-
functional
knob
Angle/Multi-
functional knob
• Rotate to adjust probe marker orientation of
body mark.
• Rotate to adjust image parameters or direction
of comment arrows.
24. P3/P2/P1 User-defined keys Undefined buttons, set by the user in preset.
No. Name English Name Description

Mindray MX7 Specifications

General

Display Size	15.6 inches
Transducer Ports	3
Portability	Portable
Type	Ultrasound System
Display Type	LCD
Battery Life	120 min
Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler
Connectivity	Wi-Fi, Ethernet, USB
Applications	Vascular, Cardiology, OB/GYN, Urology
Probe Connectors	3
Operating System	Windows
