Mindray V21 - Installing the Thermal Recorder Paper; Thermal Recorder

Thermal Recorder Mechanical Functions
4 - 26 V Series Operating Instructions
4.7 Thermal Recorder
4.7.1 Installing the Thermal Recorder Paper

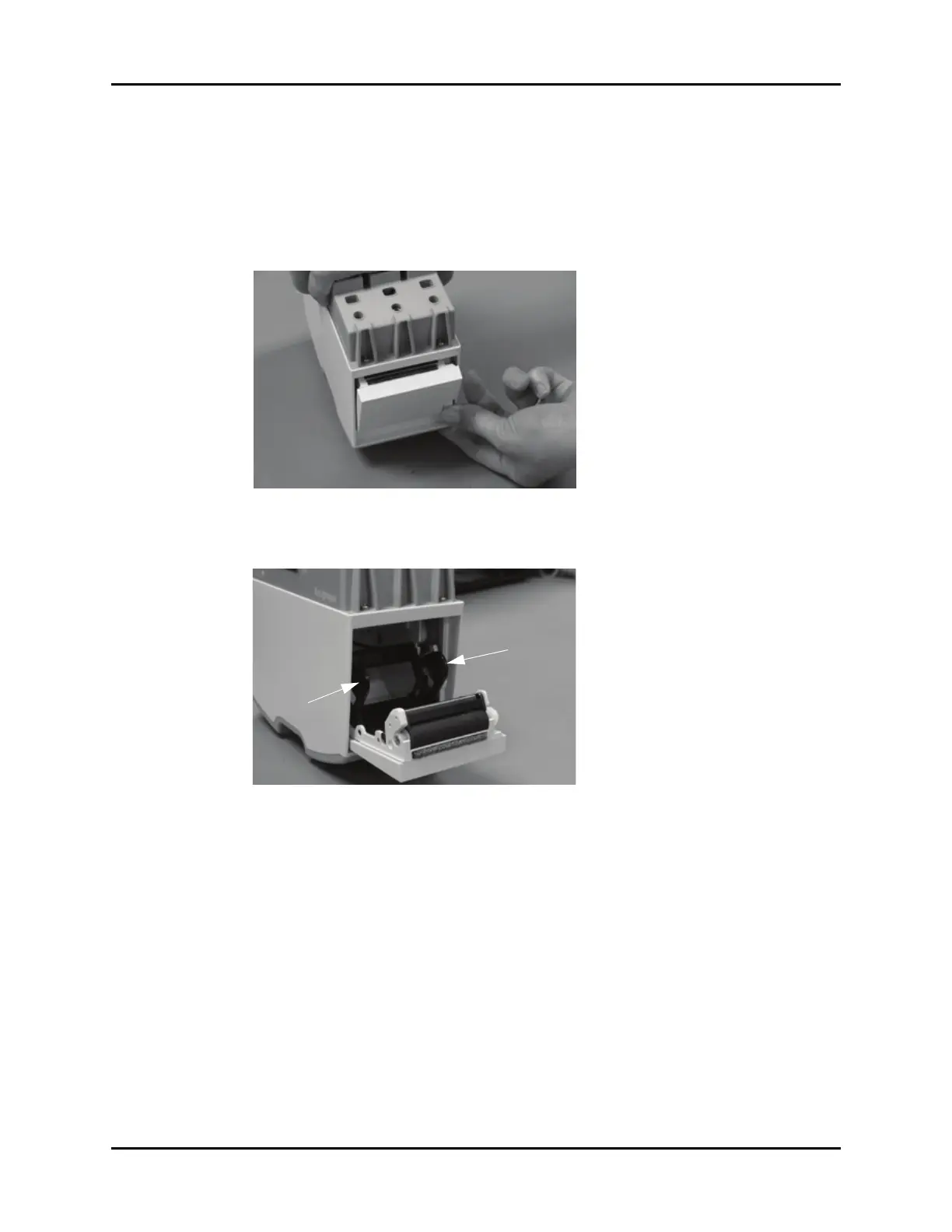

1. Turn the recorder module upside down. Press the button to open the recorder door (as shown
in FIGURE 4-42).
FIGURE 4-42
2. Locate the paper guides inside of the recorder (as shown in FIGURE 4-43).
FIGURE 4-43
