SpO2 Dialog Pulse Oximetry (SpO2)
15 - 6 V Series Operating Instructions
15.2.4 Configuring the SpO
2
Waveform
1. Select the SpO
2
digital or waveform tile.
2. Select the Waveform tab (as shown in FIGURE 15-4).

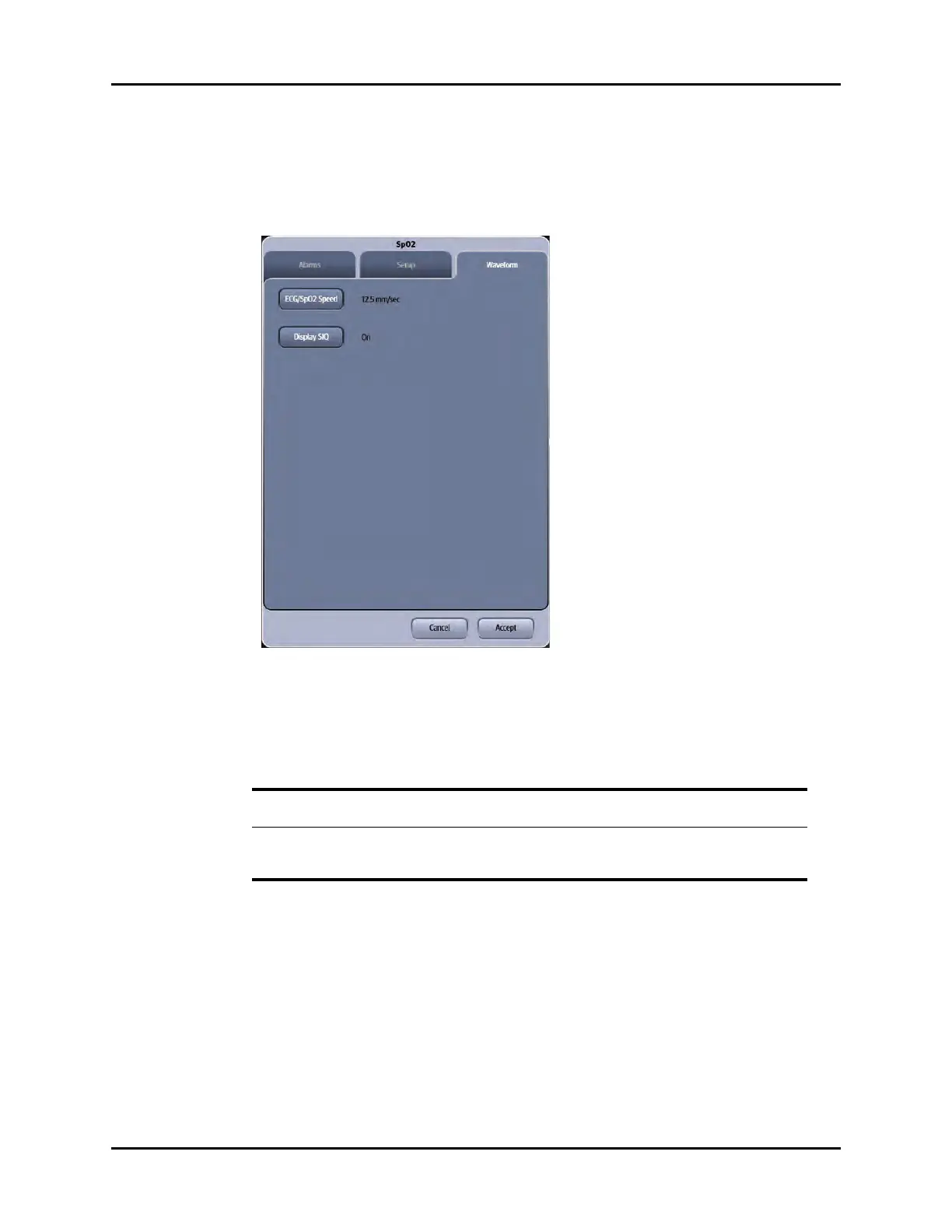

FIGURE 15-4 Example Nellcor SpO
2
Dialog (Waveform Tab)
3. Select the buttons described in TABLE 15-2 to configure the tab.
)
4. Select the Cancel or Accept button.
•The Cancel button closes the dialog without saving the settings.
•The Accept button saves the settings and closes the dialog.
TABLE 15-2
FUNCTION DESCRIPTION SETTINGS*
ECG/SpO2 Speed Configures the SpO
2
pleth waveform
and ECG waveform speed.
6.25 mm/sec, 12.5 mm/sec, 25 mm/
sec, 50 mm/sec
Display SIQ
(Masimo only)
Configures whether the SIQ displays in
the SpO
2
waveform tile. SIQ measures
the signal quality.
On, Off
