V Series Operating Instructions 17 - 3
CO2 Monitoring (Optional) CO2 Dialog
17.2 CO
2
Dialog
The CO2 dialog (as shown in FIGURE 17-2) contains an Alarms tab, Setup tab, Waveform tab, and a
Calibrate tab. A description of each tab follows.
17.2.1 Navigating to the CO
2
Dialog
• Select the CO
2
digital or waveform tile.
OR
1. Select the Setup tab from the Navigation Area.
2. Select the Parameters button.
3. Select the CO2 button.
The CO2 dialog displays (as shown in FIGURE 17-2).

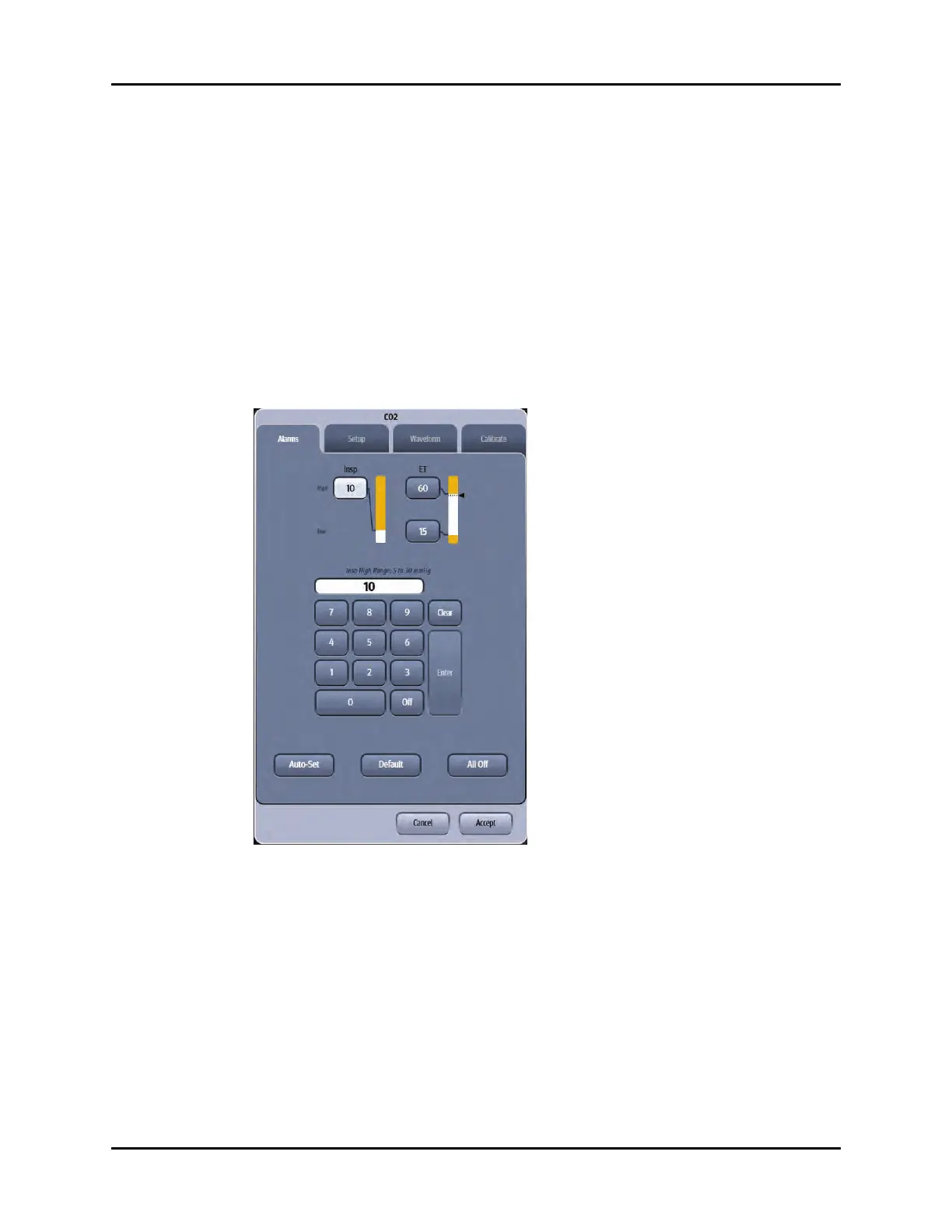

FIGURE 17-2 Example CO
2
Dialog (Alarms tab)
17.2.2 Configuring CO
2
Alarm Limits
Refer to "Configuring Alarm Limits" on page 8-2 for additional information.
