V Series Operating Instructions 14 - 11
Non-Invasive Blood Pressure (NIBP) NIBP Tile Layouts
5. Units of measure
6. Diastolic alarm limits
7. Mean alarm limits
8. Mean value/cuff pressure
9. Elapsed time since last measurement
10. Measurement interval
11. Systolic alarm limits

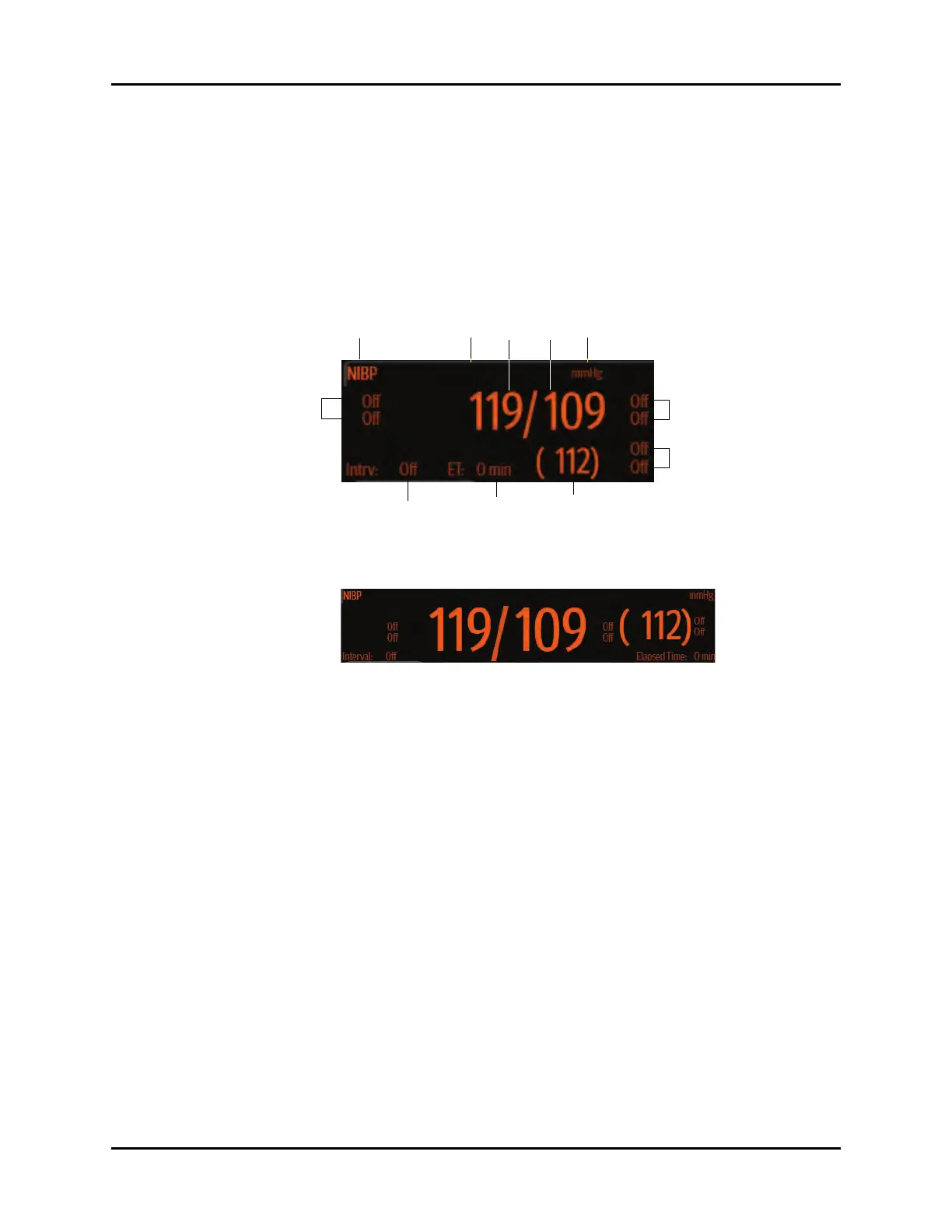

FIGURE 14-4 Example NIBP Digital Tile (Single Width)
FIGURE 14-5 Example NIBP Digital Tile (Double Width)
14.5.2 About the NIBP Tile
• The NIBP tile displays all blood pressure in units of mmHg with a resolution of 1 mmHg.
• During cuff inflation or deflation, the cuff pressure replaces the mean value.
• If the NIBP measurement is invalid, “- -” displays in place of digits.
• If the elapsed time of the current measurement meets or exceeds the configured timeout value,
“- -” displays in place of the BP values.
NOTE: NIBP reading can be affected by the measurement site, the position of
the patient, movement, or the patient's physiologic condition. If you
question the NIBP readings, determine the patient's vital signs by
alternative means and then verify that the monitor is working correctly.
14.5.3 NIBP Alarms
Refer to the "Pressure Tab" on page 8-6 for additional information.
